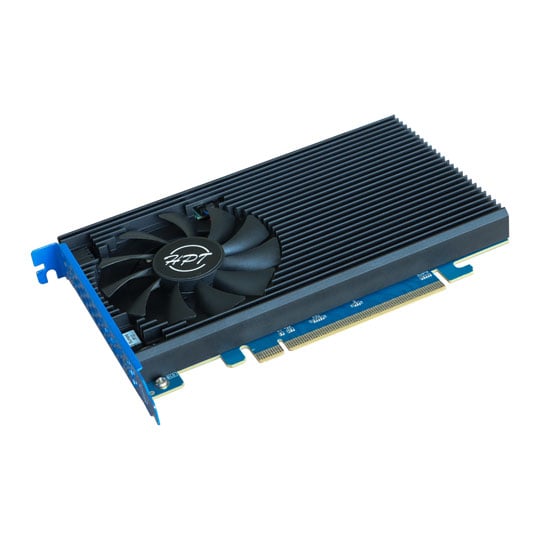

HighPoint Rocket 7604A M.2 NVMe PCIe 5.0 RAID AIC M.2 NVMe RAID Adapter

Maximize Your NVMe Potential with HighPoint’s Rocket 7604A Gen5 x16 RAID AIC

Experience over 50GB/s of real-world transfer speed with the industry’s shortest 4-port PCIe Gen5 x16 NVMe RAID card; only 167mm in length! The Rocket 7604A is the definitive storage upgrade for professionals, creators, and enterprise workflows that demand both performance and efficiency.

Each Rocket 7604A AIC can support up to 32TB of storage capacity at speeds up to 56GB/s via single PCIe connection. This self-contained, small-footprint design directly hosts up to four 2280 M.2 SSDs eliminating the need for internal drive bays and cabling.

Class-leading transfer performance, combined with HighPoint’s proven RAID & Storage technology enable Rocket 7604A AICs to accommodate a wide range of data-intensive workloads including media post production and content creation, high-speed data acquisition, and scientific/medical applications.

Powered by Industry Proven PCIe Switching Technology

Rocket 7604A AICs are powered by HighPoint’s revolutionary PCIe Gen5 Switching Architecture, which leverages Broadcom’s industry leading PEX89048 PCle Switch IC to optimize signal integrity, minimize latency, maximize data transfer speed, and enable the AIC to provide x48 lanes of internal PCIe Gen5 bandwidth; x16 lanes to the upstream connection and x4 lanes to each M.2 port. This guarantees that maximum bandwidth is available to each M.2 SSD at all times, enabling the AIC to deliver a class-leading 56GB/s of real-world transfer performance.

Empower NVMe Storage with HighPoint's Industry-Proven RAID Technology

HighPoint’s industry-proven NVMe RAID technology provides unparalleled flexibility, enabling administrators to easily craft, maintain and scale RAID storage to address the unique requirements of each target application and workflow.

Host up to four RAID arrays including bootable volumes
Mix individual SSD configurations with RAID arrays
Optimize for Performance, Redundancy or a mix of both.

Intelligent Self-Diagnostic LEDs & Alarms

HighPoint PCIe Gen5 Adapters feature Built-In Early Warning LED Indicators and Audible Alarms. Simple colour coding and light/sound patterns enable administrators to instantly asses the status of hosted M.2 media, the strength of the PCIe connection, and temperature of the PCIe switch hardware.

Environmental Monitoring, Logging & Analysis Solution

HighPoint's PCIe Gen5 x16 NVMe RAID Adapters employ an innovative Performance and Troubleshooting solution that combines an active NVMe sensor suite with real-time Environmental Logging and Analysis capability.

The solution has been integrated into the WebGUI Management Tool, and will automatically track and log the temperature and power consumption of each hosted SSD.

Intelligent Pro-Active Cooling Solution

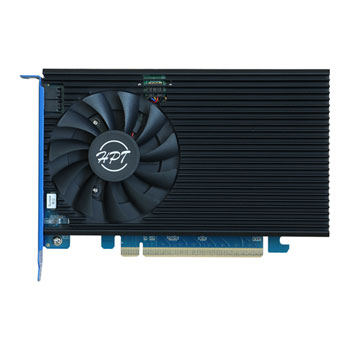

Rocket 7604A AICs are equipped with a powerful, ultra-efficient hardware cooling solution comprised of an anodized aluminium heatsink with an integrated low-decibel cooling fan, multiple layers of high-efficiency thermal padding, and a ventilated PCIe bracket. The solution rapidly transfers waste heat away from the hosted M.2 media and Switch chipset, and keep the performance-sapping threat of thermal throttling at bay.

HighPoint SafeStorage SED Solution

Rocket 7604A AICs are protected by SafeStorage - a state-of-the-art data encryption solution for OPAL SSC compliant SED drives and arrays.

Stored data is automatically locked down whenever storage is unplugged from the AIC, effectively preventing unauthorized access to sensitive information should physical disks be misplaced or stolen.

Applications & Use Cases

The compact half-length Rocket 7604A NVMe Switch AIC's revolutionary PCIe Gen5 Switch Architecture and four independent M.2 ports can support up to 32TB of storage capacity at speeds up to 56GB/s; ideal for high-speed data-intensive applications hosted by Industrial and Edge computing environments.

HighPoint's advanced NVMe RAID engine and comprehensive Management and Monitoring suite enables customers to custom-tailor storage configurations for specific applications and workflows, prioritizing speed, reliability, storage capacity, or a balanced combination via RAID 10 technology.

The Rocket 7604A's small-hardware footprint, flexible RAID capabilities, and class-leading transfer speed are ideal for high-performance Industrial and Edge computing platforms designed host data-intensive workloads such as high-speed data ingestion, media post production and content creation, and Medical/Scientific imaging.

• 4 Independent M.2 Ports.
• Leverages Broadcom’s 48-lane PCIe Gen5 PEX89048 PCIe Switch IC.
• Designed to maximize performance & connectivity density per PCIe 5.0 x16 slot: nearly 60GB/s and 12 Million IOPs.
• Customizable Firmware Solutions for Gen5 AICs.
• Wide-range of M.2 Form factor Support (2242, 2260, 2280).
• HighPoint’s Pro-Series Storage Suite.
• Supports Bootable RAID Configurations.
• Supports x86 Intel/AMD & ARM Platforms.
• Firmware-based Diagnostics Capability.
