HighPoint Rocket 1604A M.2 NVMe PCIe 5.0 AIC NVMe Switch Card

Rocket 1604A PCIe Gen5 x16 to 4-M.2 NVMe Switch AIC

HighPoint’s Rocket 1604A 4-Channel NVMe Switch AIC is an ultra-compact high-speed 4-port M.2 NVMe storage connectivity solution capable of delivering up to 56GB/s of transfer bandwidth for industry-standard x86 workstation and server platforms via a single PCIe x16 slot. The AIC can directly host up to four M.2 SSDs, removing the need for internal drive bays and cabling accessories. The half-length, single-width form factor is ideal for space-constrained computing environments such as industrial workstations, edge platforms and rackmount servers.

Powered by Industry Proven PCIe Switching Technology

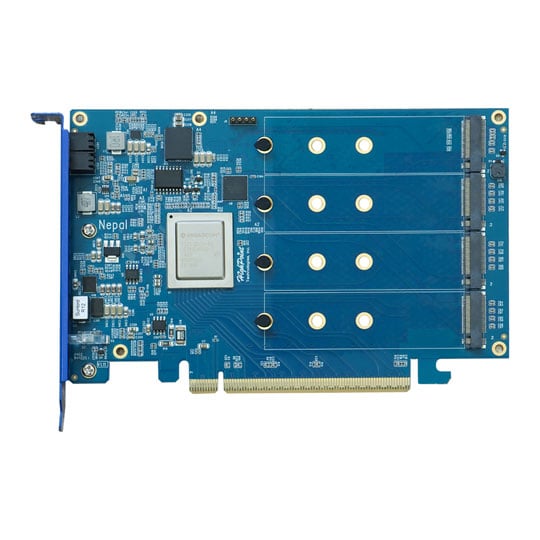

Rocket 1604A AICs are powered by HighPoint’s revolutionary PCIe Gen5 Switching Architecture, which leverages Broadcom’s industry leading PEX89048 PCIe Switch IC to optimize signal integrity, minimize latency, maximize data transfer speed, and enable the AIC to provide x48 lanes of internal PCIe Gen5 bandwidth; x16 lanes to the upstream connection and 32 to the downstream ports. This guarantees that maximum bandwidth is available to each M.2 SSD at all times, enabling the AIC to deliver a class-leading 56GB/s of real-world transfer performance.

Native, Driverless Mainstream OS Support delivers Seamless Deployment Experience

Rocket 1600 series AICs are natively supported by all modern Linux and Windows based operating systems, and utilize Broadcom’s embedded MPT driver, and the OS’s native NVMe drivers. Administrators need only physically install the AIC – no software installation or unique management suite is required.

HighPoint PCIe/NVMe Switch storage solutions are universally compatible with all modern operating systems, including Microsoft Windows/Windows Server, Azure and Hyper-V, and Linux distributions such as RHEL, Debian, Ubuntu, & Rocky Linux.

M.2 media hosted by the AIC will be automatically recognized by these platforms, and can be formatted and partitioned using the default storage interface or SDS (software defined storage) application of choice.

In addition, native OS compatibility significantly streamlines service and maintenance sessions as support for the hardware is already embedded directly into each OS.

Advanced Cooling Solution

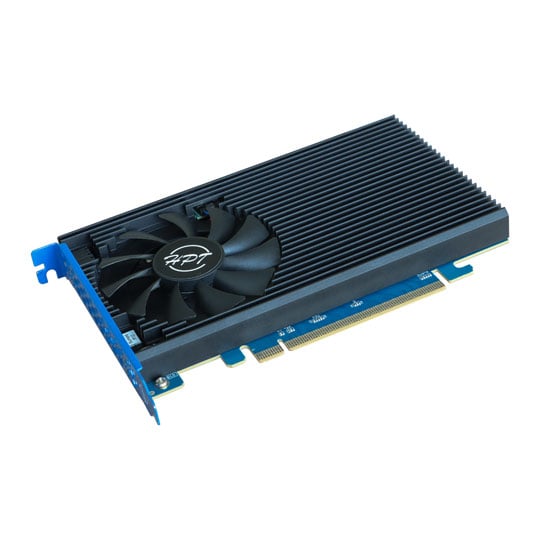

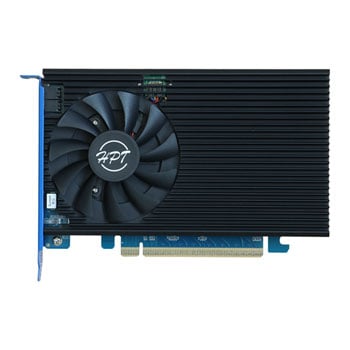

Rocket 1604A AICs are equipped with a powerful, ultra-efficient hardware cooling solution comprised of an anodized aluminium heatsink with an integrated low-decibel cooling fan, multiple layers of high-efficiency thermal padding, and a ventilated PCIe bracket. The solution rapidly transfers waste heat away from the hosted M.2 media and Switch chipset, and keep the performance-sapping threat of thermal throttling at bay.

Flexible Multi-AIC Configurations

Provided there are two or more free PCIe x16 slots, as many as four NVMe Switch AICs can coexist within a single platform. Operating systems will recognize each AIC as a distinct device, and is capable of operating independently. Configurable in single or multi-AIC/Adapter deployments, HighPoint NVMe Switch solutions offer unmatched flexibility in design and performance optimization.

Applications and Use Cases

The compact half-length Rocket 1604A NVMe Switch AIC's revolutionary PCIe Gen5 Switch Architecture and four independent M.2 ports can support up to 32TB of storage capacity at speeds up to 56GB/s; ideal for high-speed data-intensive applications hosted by Industrial and Edge computing environments.

Simple plug-and-play installation and embedded driver support with all major OS platforms streamlines deployment and service workflows, enabling customers to seamlessly integrate Gen5 storage performance into any AMD/Intel x86 and ARM platform with a free PCIe 5.0 x16 slot.

This versatility makes the Rocket 1604A an ideal choice for IT environments that require a powerful, small-footprint high-density storage expansion solution.

• 4 Independent M.2 Ports.
• Wide-range of M.2 Form factor Support (2242, 2260, 2280).
• Leverages Broadcom’s 48-lane PCIe Gen5 PEX89048 PCIe Switch IC.
• Designed to maximize performance & connectivity density per PCIe 5.0 x16 slot: Up to 56GB/s and 12 Million IOPs using just four NVMe SSDs!.
• Customizable Firmware Solutions for Gen5 AICs.
• Natively supported by Mainstream Operating systems; delivers driverless deployment experience.
• Robust, flexible & scalable; Tailor speed & capacity for the deployment & infrastructure requirements of each Application/Workflow.
• Supports x86 Intel/AMD & ARM Platforms.
• Firmware-based Diagnostics Capability.
