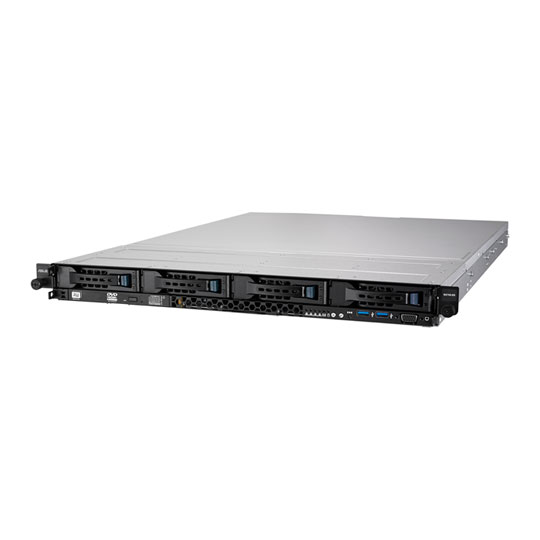

ASUS 1U Rackmount 4 Bay RS700-E9-RS4 Dual Xeon Scalable Barebone Cache Server
4-Bay ASUS RS700-E9-RS4, Xeon Scalable DP Barebone 1U Server, 2x 3647, 24x DDR4, 4x 2.5/3.5" SATA/SAS Hot-Swap, 2x M.2
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
Intel® Xeon® Scalable Platform Design
RS700-E9-RS4 is built on the Intel® Xeon® Scalable Platform to deliver incredible 1U server performance, packing incredible power into minimal space. 24 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor eliminates data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.
User-Friendly Design for Easier Server Maintenance
RS700-E9-RS4 features numerous user-friendly design features that simplify server maintenance. The server's Q-code is visible from the outside of the case to make diagnosing issues easier and more convenient. A tool-less rack rail kit is included for easy server installation and removal, and a tool-less, hot-swappable fan provides faster and simpler maintenance.
Advanced I/O Support for 3+1 Expandability
RS700-E9-RS4 offers one full-high PCI Express 3.0 x16 slot (x16 link), one low-profile PCI Express 3.0 x16 slot (x8 link), one low-profile PCI Express 3.0 x8 slot (x8 link), and one OCP 2.0 Mezzanine slot (x16 link) to support 10G/25G/100G LAN card. The flexible expansions offer diverse applications in storage and networking to meeting the demands of future expansion and high scalability in a 1U server.
Expandable Storage for Faster Transfer Speeds
RS700-E9-RS4 features a port-to-port OCuLink design with 3X faster transfer speeds compared to PCIe switch IC solutions. Two M.2 slots accommodate 22110-size SSDs with support for additional OS storage and PCIe 3.0 x4 bandwidth — 5.3X faster than 6 Gb/s SATA III — for faster boot speeds. RS700-E9-RS4 is ideal for data centres with high storage and processing demands.
Fully Integrated Remote Server Management
The latest ASMB9-iKVM module enables remote BIOS updates, standalone KVM/Java utilities, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics — even if the server operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Centre (ACC) is a centralised and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching.
Smart Thermal Design for Energy Efficiency
RS700-E9-RS4 features a smart thermal radar design with more ambient thermal sensors for the CPU, memory, GPU, SSD, LAN card and front-panel board that provide improved temperature monitoring and enable dynamic fan speed adjustment for better power efficiency. This smart thermal design reduces fan power consumption by up to 20% and eliminates the power-sharing board for improved efficiency and lower operation costs. Features • Powered by Intel® Xeon® Scalable Platform.
• 4x 3.5" hot-swap storage bays in a 1U server.
• Advanced I/O support for 3+1 expandability.
• Expandable storage for faster transfer speeds: Dual M.2 slots with 22110-size SSD support.
• Smart thermal design for energy efficiency: Reduces fan power consumption by up to 20%.
• User-friendly design for easier server maintenance: Tool-less design for installation and removal.
• Fully integrated remote server management: ASUS Control Centre IT management software and ASMB9-iKVM module support.
Important - Please Note: Images are for illustration purposes only. Slim Optical Drive not included, available separately.
|Form Factor||1U Rackmount|
|CPU Type||2x Intel Xeon Scalable Processors|
|Manufacturing Process||14 nm|
|No. of Threads||N/A|
|CPU Cooler||Passive Heatsink|
|CPU Socket||3647 x2|
|Motherboard Form Factor||Bespoke/Custom|
|Motherboard Model||ASUS Z11PP-D24 Server Motherboard|
|Memory Capacity Included||RAM Memory Not Included - Please Buy Separately|
|Memory Channels||Hex (6) per CPU/Socket|
|Memory Type (ECC)|
|Memory Type (R/U)||RDIMM / LRDIMM / LRDIMM 3DS|
|Memory Speed (Mhz)||
|Max. Memory Capacity||3072GB (24x128GB)|
|Processor/Motherboard Graphics Chip||Aspeed AST2500 with 64MB VRAM|
|Discrete GPU Chipset|
|GPU Manufacturing Process|
|GPU Cores/Streams/Execution Units|
|GPU Tensor Cores||N/A|
|Base GPU Speed||N/A|
|Max. GPU Speed||N/A|
|GPU Memory Size|
|GPU Memory Type|
|GPU Memory Clock|
|GPU Memory Bus|
|Discrete GPU Cooler|
|Max. GPU Resolution|
|Graphics Interface||PCIe 3.0 (x16)|
|SATA||SATA3 / M.2|
|Storage Drive Included||No|
|Storage Drive Type|
|Storage Drive Capacity||N/A|
|Optical Drive||None - Includes Slim Optical Drive Caddy/Bay|
|Drive Bays||4 x 2.5/3.5" SAS/SATA Hot-swap|
|Backplane I/O||4 x SAS/SATA Ports (Front)|
|RAID Support||RAID 0/1/10/5 (Intel RSTe)|
|Internal I/O||10 x SATA III - 6Gb/s|
|Network Interface Type||Dual Wired Gigabit LAN (10/100/1000) + Mgmt LAN|
|Network Chip/Modules||1 x Intel® i350-BT2 Dual Port (GbE)|
|Cooling Fans||8 x 40mm|
|Keyboard / Mouse Included||No|
|Remote Control Included||No|
|PSU Wattage||500/800 W|
|PSU Efficiency Rating||80 PLUS Platinum|
|Operating System Included||No|
|Operating System||O/S Not Included - Please Buy Separately|
|Dimensions||686 x 44 x 444 (mm WxHxD)|
|Notes||*(10x SATA + 1x M.2) OR (9x SATA + 2x M.2)|
