Scan 3XS Graphics Workstations
Scan 3XS Graphics Workstations are based on the Ada Lovelace and Ampere architecture NVIDIA GPUs, providing you with maximum performance and stability when working your favourite CAD and CAE applications.
This workstation features a 20GB NVIDIA RTX 4000 Ada graphics card with an AMD Ryzen 9 7900 12C/24T processor plus 32GB of DDR5 memory. An ultra-fast 1TB SSD is provided for the OS and your latest project, assets and documents. The system is built in a compact 8.3 litre chassis allowing for a powerful workstation while covering a small footprint.
The system is soak tested with creative applications and is pre-installed with Windows 11 Professional.
Optimised for CAD and CAE Applications
This workstation is optimised for CAD and CAE workflows in applications such as AutoCAD, SolidWorks, Inventor and CATIA.
Key Features
NVIDIA RTX Graphics
Using the NVIDIA Ada Lovelace GPU architecture to deliver faster performance to accelerate workflows like 2D and 3D modelling, and more.
AMD RYZEN PROCESSOR
The AMD Ryzen 9 7900 has 12 cores and 24 threads for great performance in a wide variety of CAD & CAE applications.
NVIDIA CUDA
Featuring 6144 CUDA cores, this system excels in CUDA based applications.
MULTI MONITOR SUPPORT
Create an expansive visual workspace or video wall with the ability to drive up to four ultra-high resolution displays from a single graphics card.

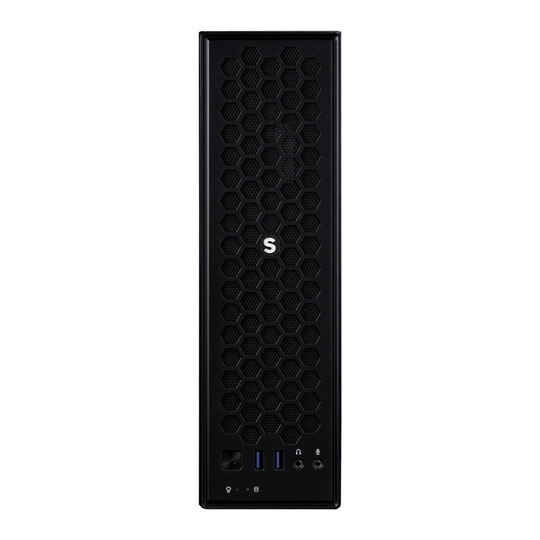

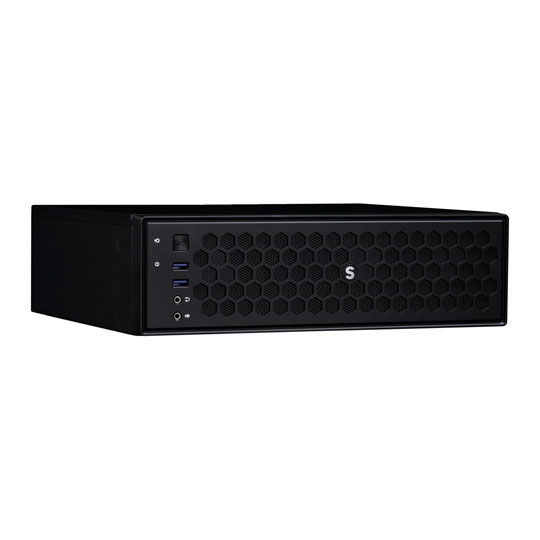

Small But Mighty
Our 8.3L chassis takes up little space whilst maintaining big power.
OCCT Platinum Certified
Each 3XS system is rigorously tested to ensure maximum stability.
Specifications
Component | Description |
---|---|
Chassis | CiT S8 8.3L Chassis |
Motherboard | ASUS PRIME B650M-A WIFI II |
Processor | AMD Ryzen 9 7900, 12C/24T, 3.7GHz – 5.4GHz |
CPU Cooler | Be quiet! Pure Rock LP |
Memory | 32GB (2x16GB) Corsair Vengeance 5600MHz DDR5 |
Graphics Card | 20GB NVIDIA RTX 4000 SFF |
System Drive | 1TB Samsung 980 NVMe M.2 SSD |
Operating System | Microsoft Windows 11 Pro |
Recovery Media | Recovery USB drive with system image and diagnostic software |
Warranty | 3 Year Premium Warranty - 1st Year Onsite, 2nd & 3rd Year Return to Base (inc Parts & Labour) |
Connectivity
4 x USB 2.0
2 x USB 3.2 Gen1 Type-A
2 x USB 3.2 Gen2 Type-A
4 x Mini DisplayPort
Realtek Gigabit LAN
WIFI 6
Bluetooth 5.2
Why buy a 3XS Workstation
Anyone can build a PC, so what really makes the difference between any old PC and a 3XS PC? For starters, our team has been designing and building PCs for more than 20 years, so we have a huge amount of experience in building highly reliable systems that deliver the most performance for your budget. Here are the key reasons to buy a 3XS Workstation.
3XS Workstations are pre-built and tested in our factory to be delivered next-day.
VIEW NEXT-DAY PCs3XS Workstations include a three-year warranty, so if anything goes faulty we’ll repair or replace it.
FIND OUT MOREIf you’re not totally satisfied with your 3XS Workstation you can return it up to 30 days after delivery.
FIND OUT MORE
