Scan code: LN143118 Manufacturer code: CL-F171-PL12BL-A

Thermaltake TOUGHFAN EX12 Pro PWM Fan - Swappable Edition (3 Pack)

3x 120mm Thermaltake TOUGHFAN EX12 Pro, 9 Blade, 500-2000rpm, PWM, 70.8CFM, Hydraulic Bearing, Black

Thumbnail 1 : Thermaltake TOUGHFAN EX12 Pro PWM Fan - Swappable Edition (3 Pack) Thumbnail 2 : Thermaltake TOUGHFAN EX12 Pro PWM Fan - Swappable Edition (3 Pack) Thumbnail 3 : Thermaltake TOUGHFAN EX12 Pro PWM Fan - Swappable Edition (3 Pack) Thumbnail 4 : Thermaltake TOUGHFAN EX12 Pro PWM Fan - Swappable Edition (3 Pack)
Scan code: LN143118 Manufacturer code: CL-F171-PL12BL-A
Order now and receive it by Monday, 24th June
£69.98
Get it Saturday, 22 JunIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jun to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

TOUGHFAN EX12 Pro

By adding the MagForce 2.0 and swappable fan blade design to the powerful TOUGHFAN Pro, the new TOUGHFAN EX Pro can provide supreme cooling performance with a quick magnetic connection, allowing you to swap the fan blades to fit installation & aesthetic preferences.


Steady Connection with MagForce 2.0

Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 features the Pogo pin contact pads that are TWO times larger for greater tolerance. This enhancement significantly reduces the potential of faulty alignment no matter whether you are daisy-chaining fans together or connecting fans with cables, streamlining installation efficiency as well as user experience.


Say Goodbye to Excessive Cables

Connect your fans with TOUGHFAN EX Pro’s MagForce 2.0 Quick Connect Design and be free from messy cables by taking advantage of daisy chaining capabilities allowing you to connect multiple fans with a single cable.


Specially Engineered Fan Blades

The TOUGHFAN EX Pro incorporates nine lengthened fan blades that have been restructured using precision adjustment software, delivering higher airflow and stronger static pressure during operation. The fan blades are also made from liquid crystal polymer (LCP), a compound that minimises vibration at full rotation.


Stronger Than Ever

With new technology and craftsmanship, the TOUGHFAN EX12 Pro has a maximum operating speed of 2000 RPM.

The Standard Fan blades can provide an static pressure of 3.19 mmH2O and 70.8 CFM (Max) airflow while maintaining under 22.6 dB-A noise level and can bring air from the front to the back.

The Reverse Blades can provide an static pressure of 2.6 mmH2O and 64.21 CFM (Max) airflow while maintaining under 29.8 dB-A noise level and can bring air from the back to the front.

Affording you even greater personalisation.


Improved Structure for Superior Performance

The TOUGHFAN EX Pro has been designed with an updated square fan frame featuring a new outline that prevents air leakage effectively allowing you to experience extreme performance whether installed on a chassis or radiator.


No More Compromise

No longer will you need to stare at the back of your fan, with the TOUGHFAN EX PROs design your fans can always face forwards.

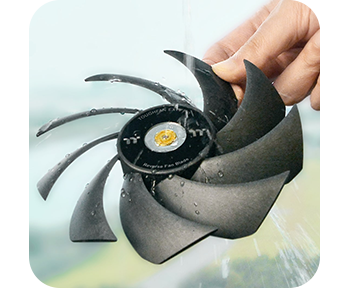

Keep Your Blades Clean

Cleaning made easy, if your not a fan of brushing out your fans, you can pop the fan blades out and even rinse them with water, just make sure to dry them thoroughly and apply the provided bearing lubricant.

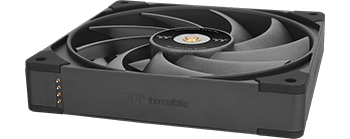

Anti-vibration Mounting System

The TOUGHFAN EX Pro is designed with 80% coverage on all corners, with the in-mold injection anti-vibration rubber pads the fan’s vibration is lowered, allowing the fan to spin at a higher level while continuing to maintain a low noise level.


Features

• Fan Size: 120mm.
• Power: 4pin power.
• Noise: 34.1dB-A.
• Fan Bearing: Hydraulic.
• Fan Speed: 500 - 2000 RPM PWM.
• Max. Air Pressure - Standard Fan Blade : 3.19 mm-H2O(Single fan) Reverse Fan Blade : 2.60 mm-H2O(Single fan)
• Airflow- Standard Fan Blade : 70.8 CFM(Single fan) Reverse Fan Blade : 64.21 CFM(Single fan)
• Noise Level - Standard Fan Blade : 22.6 dB-A(Single fan) Reverse Fan Blade : 29.8 dB-A(Single fan)
• Colour: Black.
• Dimensions: 120 x 25 x 120 mm.

Specifications
Pack Information
Edition TOUGHFAN EX12 Pro
Pack Type Triple (3) Fan Standalone Pack
Includes 3 x 120mm Fan/s
Individual Fan Specifications
Fan Diameter 120mm
Fan Depth 25 mm
Fan Speed 500 ~ 2000 rpm
Fan Blades 9
PWM Yes
Fan Specialization
Airflow Standard Fan Blade : 70.8 CFM(Single fan) / Reverse Fan Blade : 64.21 CFM(Single fan) CFM
Air Pressure Standard Fan Blade : 3.19 mm-H2O(Single fan) / Reverse Fan Blade : 2.60 mm-H2O(Single fan) mm H²O
Sound Level (dBA) Standard Fan Blade : 22.6 dB-A(Single fan) / Reverse Fan Blade : 29.8 dB-A(Single fan) dBA
Sound Level (Sone)
Motor Type
Bearing Type Hydraulic Bearing
Manual Speed Controller No
Material Plastic / Rubber
Fan Colour Black
LED No
LED Colour
MTBF 40,000 Hours
Fan Fixing Screw Fixing
Cable length
Connectors 1 x 4-pin PWM
Additional Information
Scan Code LN143118
Model Number CL-F171-PL12BL-A
GTIN 4713227539395
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
Manufacturer Contact Details
Manufacturer:
ThermalTake
