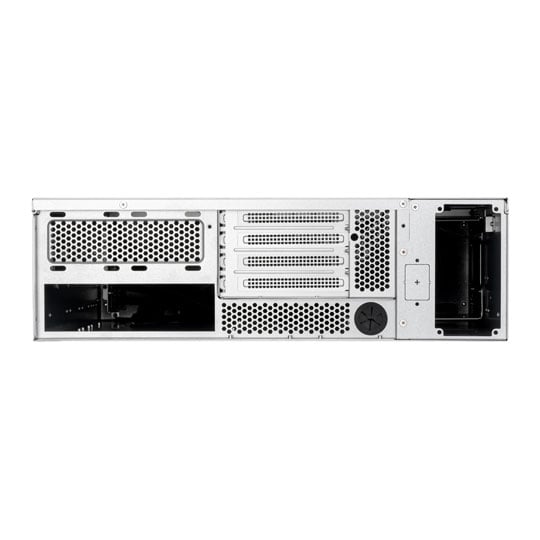

SilverStone SST-RM32 3U Rackmount Server Case

SilverStone RM32 3U Rackmount Server Chassis

The SilverStone RM32 is a 3U rackmount server chassis designed for high-performance builds, especially systems that need large graphics cards, substantial cooling, and flexible server-class motherboard support. Its main unique features are broad compatibility, strong liquid-cooling support, and rack-friendly expandability.

Motherboard Support

The RM32 supports a wide range of board sizes, including SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, and Mini-ITX. That makes it suitable for everything from compact workstation builds to full server platforms. In practical terms, this gives you a lot of freedom to choose between consumer and server-grade hardware.

Graphics Card Capacity

One of its standout features is support for a high-end graphics card up to 177 mm wide and 360 mm long, with 4 full-height PCIe expansion slots. That makes the case useful for GPU-heavy workloads such as AI, rendering, or virtualization. The exact GPU width limit can vary depending on the power supply setup, but the chassis is clearly built with serious expansion in mind.

Cooling and Radiator Support

The RM32 supports front cooling with 120 mm fans and radiator options up to 360 mm, with room for up to 6 x 120 mm fans in push-pull configurations. It also supports CPU air coolers up to 110 mm in height, which is fairly generous for a rackmount chassis. This gives the case a strong edge if you want quiet airflow or liquid cooling in a 3U form factor.

Storage Layout

The chassis includes internal drive support for 3.5-inch and 2.5-inch devices, with a layout that can be configured as 2 x 3.5-inch or 2 x 2.5-inch, plus 3 additional 2.5-inch drives. That makes it flexible for mixed storage setups, such as SSDs for the OS and HDDs for bulk data. It is a practical arrangement for home or small server use where storage variety matters.

Power Supply Options

The RM32 supports SFX, SFX-L, and SilverStone 2U CRPS redundant power supplies. That gives you two different deployment styles: compact single-PSU builds or more robust redundant power setups for reliability. It also has a PSU depth allowance of up to 250 mm, which helps with installation flexibility.

Front Panel I/O

On the front panel, the chassis includes 1 x USB Type-C and 2 x USB 3.0 ports. It also has LED indicators for power, HDD activity, and LAN activity, which are useful for quick status checks in a rack environment. These are small details, but they make the chassis easier to manage day to day.

• Compatible with motherboards up to SSI-EEB.
• Supports SFX-L or 2U CRPS redundant power supplies.
• Supports 4 full-height PCIe expansion slots and a high-end graphics card up to 177mm wide.
• Supports 360mm liquid cooling radiators up to 6x120mm push and pull fans.
• Supports CPU air coolers up to 110mm in height.
