Scan code: LN110559 Manufacturer code: CX-9040007-WW

Corsair Hydro X Series XD5 RGB Pump/Reservoir Combo - White

330ml Corsair Hydro X Series XD5 RGB Water Cooling Pump/Reservoir Combo, White, 10x ARGB LEDs, Xylem D5 PWM, Clear Nylon

Thumbnail 1 : Corsair Hydro X Series XD5 RGB Pump/Reservoir Combo - White Thumbnail 2 : Corsair Hydro X Series XD5 RGB Pump/Reservoir Combo - White Thumbnail 3 : Corsair Hydro X Series XD5 RGB Pump/Reservoir Combo - White Thumbnail 4 : Corsair Hydro X Series XD5 RGB Pump/Reservoir Combo - White
Scan code: LN110559 Manufacturer code: CX-9040007-WW
£149.99
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
From £12.50 / month (APR 0%)
Monthly Payment: £12.50
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £149.99
Total inc. interest: £149.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 21st Sep to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Corsair XD5 330ml RGB Pump/Reservoir Combo in White

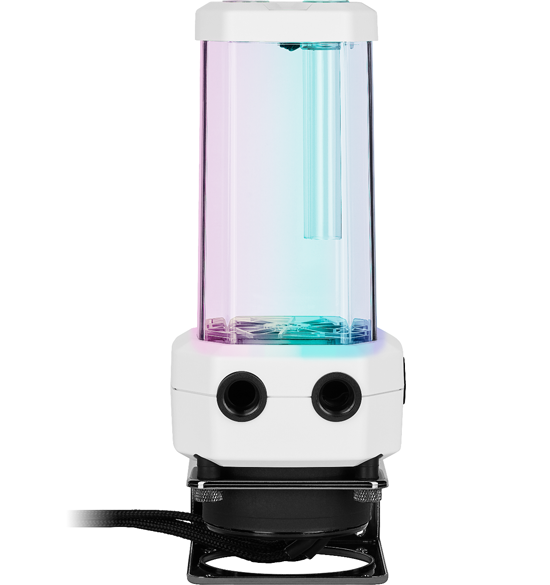

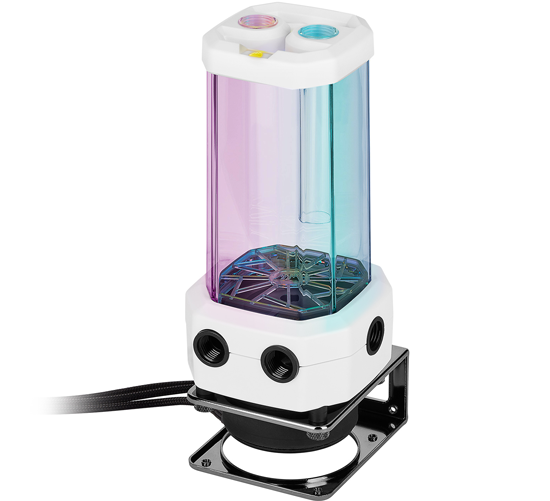

Corsair Hydro X Series XD5 RGB White Pump

YOUR CUSTOM COOLING SYSTEM IN LIVING COLOUR The CORSAIR Hydro X Series XD5 RGB Pump/Reservoir Combo is equipped to inspire the world’s most challenging custom cooling systems. Built with a Xylem D5 PWM pump which provides powerful flow rate for multi-block loops and is amendable via PWM to maximize cooling capacity at a lower noise level. Featuring ten built-in RGB LEDs, controlled by adding a CORSAIR iCUE Lighting Node PRO or Commander PRO and powerful CORSAIR iCUE software, offer a vibrant wave of control to customize your lighting, accentuated by a titanium matte white finish. An included temperature sensor gives you real-time performance data from inside your system for accurate cooling adjustment. Universally compatible with G1/4 fittings and with both 120mm and 140mm fan mounting brackets included, the XD5 RGB Pump/Reservoir is the heart of your custom cooling system.

Controlled Cooling from Every Angle

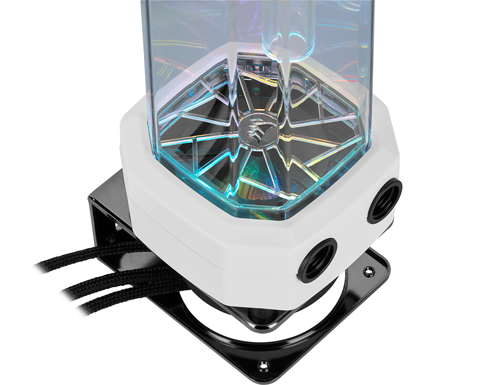

D5 PWM pump

Optimize your flow rate with precise PWM control CORSAIR X Series provide a high-performance Xylem D5 PWM pump, which is controlled via PWM to deliver the perfect flow balance for your loop keeping your PC chilled like never before.

Create Vivid RGB Lighting to make your System Shine

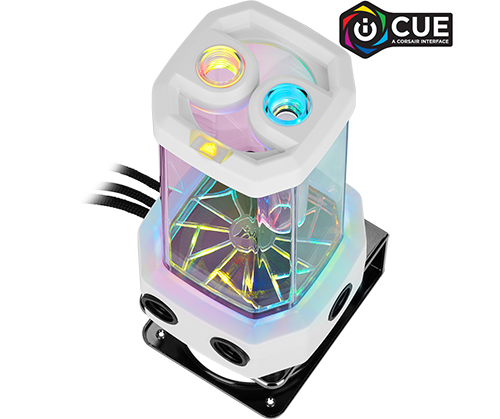

RGB lighting

Ten Individually Addressable RGB LEDs The CORSAIR Hydro X Series XD5 features ten top-mounted RGB LEDs that light up your reservoir with stunning customizable RGB lighting when combined with a CORSAIR Lighting Node PRO or Commander PRO which are sold separately. Combine with a CORSAIR iCUE RGB lighting controller and powerful CORSAIR iCUE software to allow you to customize and instantly sync RGB lighting across all your CORSAIR RGB products including water blocks, fans, keyboard, LED light strips and more.

Your Cooling Solution on Display

cooling display

ANGULAR CORSAIR DESIGN CORSAIR's XD5 RGB integrated 330ml reservoir puts your custom cooling system's coolant front-and-center, with stunning angular design and an integrated fillport that makes filling, flushing and topping-off coolant easy.

Multi-Bracket Mounting Included

EASY TO INSTALL The CORSAIR Hydro X Series XD5 allows you to choose to mount your XD5 directly to your case or to any available 140mm or 120mm fan mount with the included mounting bracket set.

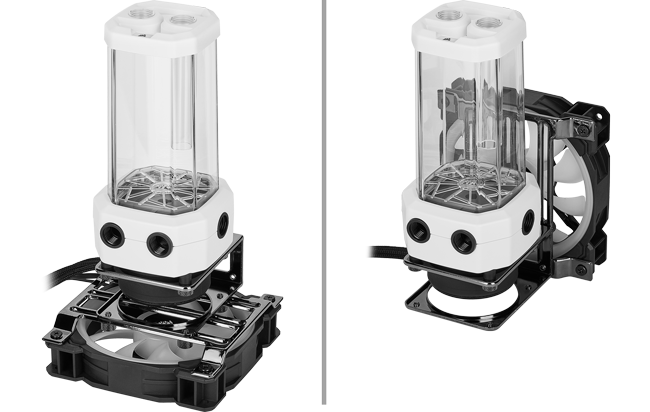

Mount brackets

Hydro X Series XD5 Provides an Immaculate Build

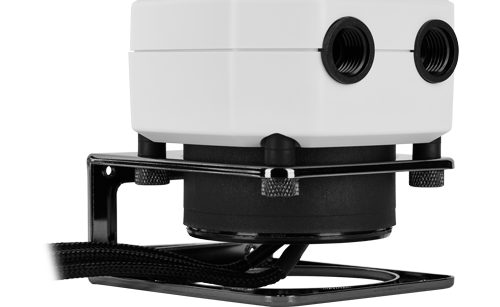

cabling and rubber mounting

SLEEVED CABLING AND RUBBERIZED MOUNTING SYSTEM CORSAIR's XD5 RGB Pump/Reservoir combo includes a rubberized mounting system, which is designed to reduce pump vibrations and noise, so your unique cooling loop is seen, and not heard. Plus, with individually sleeved cables made in premium quality paracord your build will genuinely look great.

In-loop Temperature Monitoring

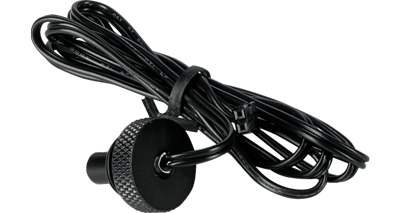

temperature monitoring

KEEP IT COOL The integrated G1/4 temperature sensor provides real-time coolant temperatures from inside your cooling loop.

Included 24-Pin PSU Jumper Bridge

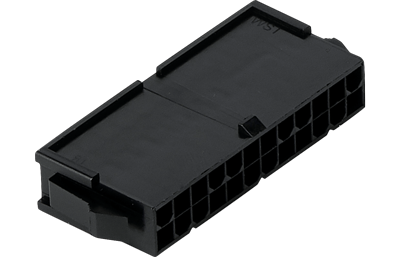

PSU jumper bridge

SIMPLE AND SECURE With the included 24-pin power supply jumper bridge you can start your pump without powering your main components, for easy and safe filling.

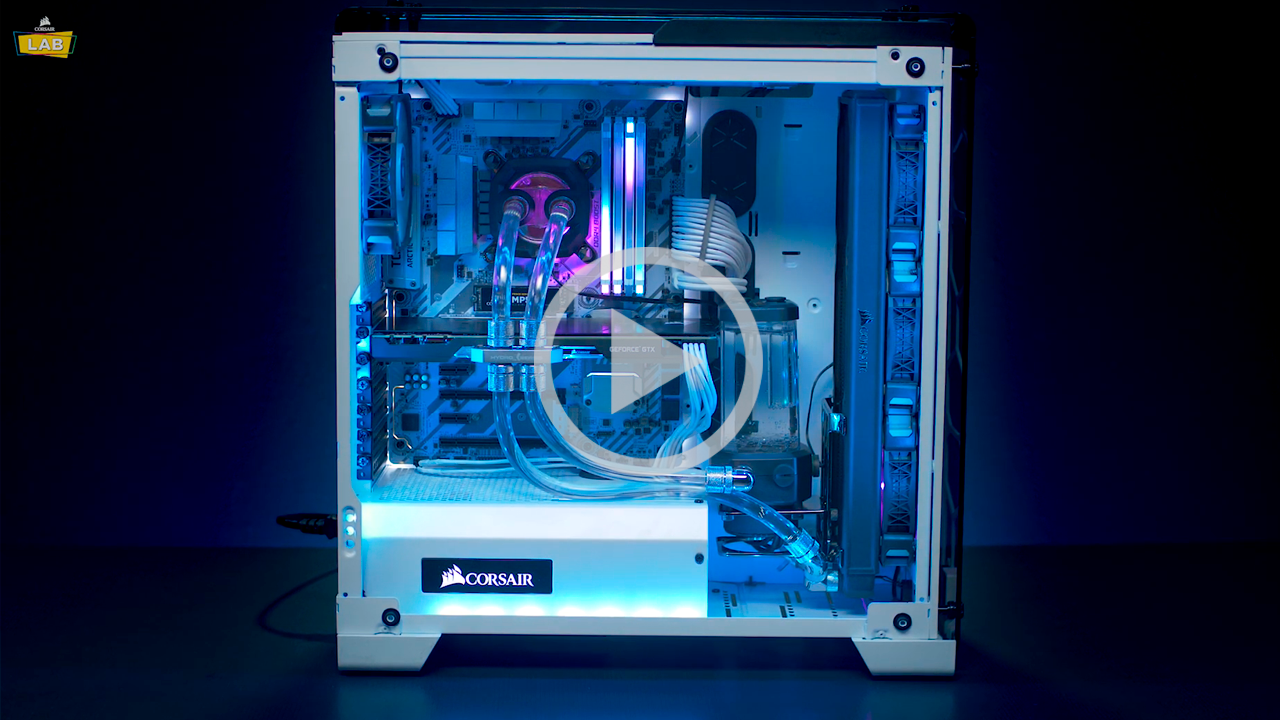

How to Install Corsair's XD5 RGB Pump/Reservoir Combo

VIDEO IMAGE
Specifications
Core Specifications
Edition Hyrdo X Series XD5 RGB Gen2
Product Type Pump/Reservoir Combi
Pump Specifications
Pump Yes
Pump Type Xylem D5 PWM
Max. RPM 4800 rpm
Max. Hydraulic Performance 800 L/h at 2.1m pressure head
PWM Duty Cycle Range 20-100 %
Pump Voltage 12 V
Max. Power Draw 30 W
Reservoir Specifications
Reservoir Yes
Reservoir Capacity 330 mL
Fluid Chamber Construction Nylon
Combined Specifications
Port Threads G1/4"
Temperature Monitoring Integrated G1/4 Temperature Sensor
LED Lighting 10x Addressable RGB LEDs
Controller Commander Pro/Lighting Node PRO Required for iCUE
Power Connector 1 x 4-pin Molex (AMP Mate-N-Lok)
Power Cable Length 45 mm
Signal Connector 1 x 4-pin fan header (KK254)
Signal Cable Length 45 mm
Cabling Features Individually Sleeved
Max. Coolant Operating Temperature 60 °C
Compatible Metals
  • Brass
  • Copper
Compatible Coolant CORSAIR XL or equivalent
Mounting System Rubberized
Installation Locations
  • 120mm Fan Mount
  • 140mm Fan Mount
Product Colour White
Dimensions 83 x 188 x 83 mm (WxHxD)
Weight 508 g
Additional Information
Scan Code LN110559
Model Number CX-9040007-WW
GTIN 840006628620
