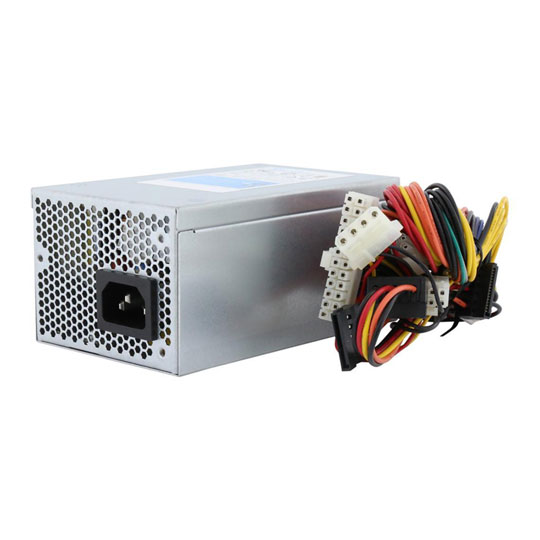

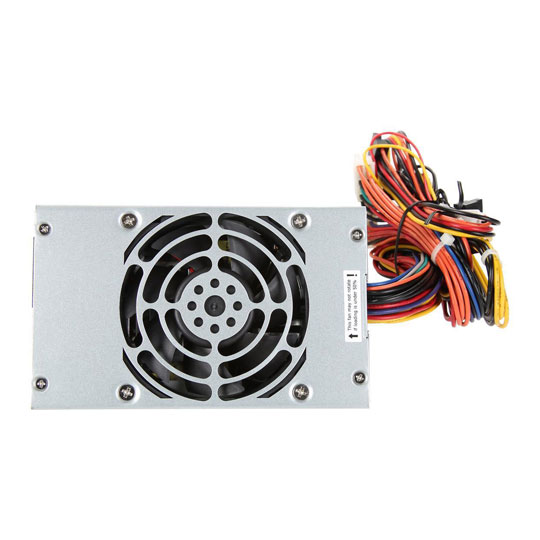

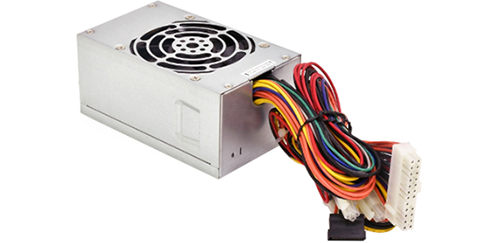

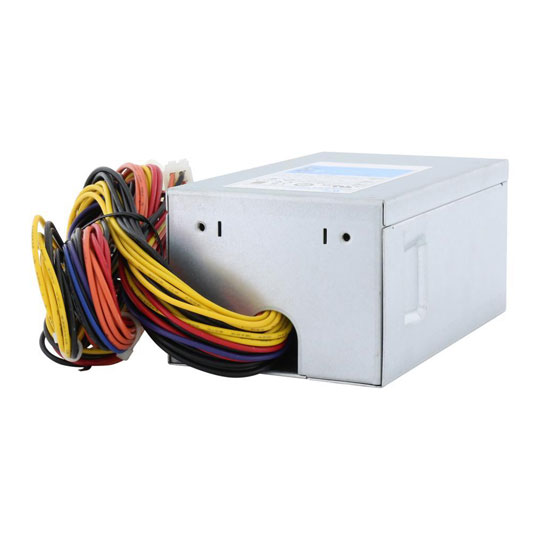

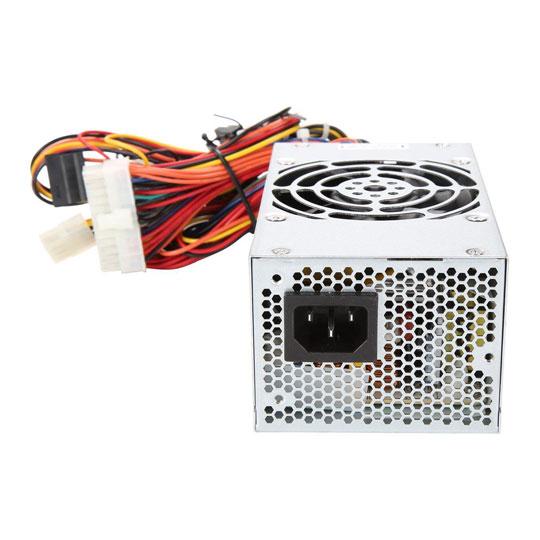

Seasonic 300TBS 300 Watt TFX 80+ Bronze PSU/Power Supply

300W Seasonic SSP-30300 TBS, Full Wired, 80PLUS Bronze, Dual Rail, 21A, TFX, PSU

Thumbnail 1 : Seasonic 300TBS 300 Watt TFX 80+ Bronze PSU/Power Supply Thumbnail 2 : Seasonic 300TBS 300 Watt TFX 80+ Bronze PSU/Power Supply Thumbnail 3 : Seasonic 300TBS 300 Watt TFX 80+ Bronze PSU/Power Supply Thumbnail 4 : Seasonic 300TBS 300 Watt TFX 80+ Bronze PSU/Power Supply
Scan code: LN89120 Manufacturer code: SSP-300TBS
£44.99
Low stock
Order in the next 1 hr 29 mins and get it tomorrow
Delivery Options
  • By DPD On 5th Aug to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

300TBS 300 Watt Power Supply from Seasonic

PRIME TX 1000 Watt

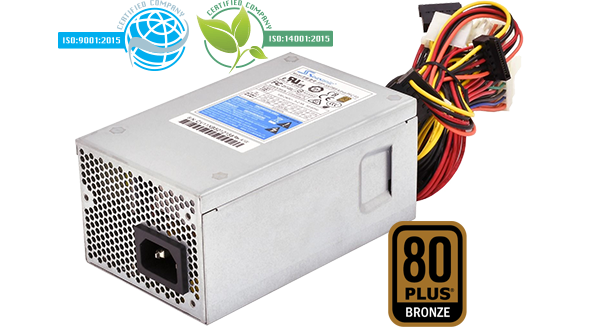

EFFICIENT AND PRECISE POWER FOR YOUR PC This Seasonic full input range, industrial level power supply offers a dependable source for a wide range of setups requiring the TFX form factor. It is TFX 12 V v.2.31 compliant and Pentium 4 processor ready. It's also 80 PLUS® Bronze certified, therefore it is highly efficient whilst providing excellent power to your rig.

300Watts

80 PLUS BronzeCertification

TFXForm Factor

Features of the 300TBS

4K Recording

TBS TFX POWER SUPPLY SATA-ready.
High efficiency and reliability.
Low ripple and noise.
Super low noise fan control.
Short circuit protection on all outputs.
Over voltage protection.
Over power protection.
Over power protection.

down

up

up

Overview of the TFX TBS PSU

TBS PSU
80 PLUS Bronze
Intel TFX 12 V v2.31 Compliant Yes
Dimensions 140 mm (L) x 85 mm (W) x 65 mm (H)
DC to DC Converter Design No
Forward Converter Circuit Yes
Fixed Cables Yes
80 mm Double ball bearing Fan Yes
S3FC - including Fanless Mode Yes
S2FC - Smart and Silent Fan Control No
Zero Minimum load on 3.3 V Rail No
Short Circuit Protection on all Outputs Yes
Over Voltage Protection Yes
Over Power Protection Yes
100 % HiPot Test Yes
100 % Burn-in, High temperature Cycled on/off Yes
Safety Compliance CB, cUL, TUV, CCC, BSMI
EMI/EMC Compliance CE, FCC, RCM
Specifications
Size TFX
Edition SSP-300TBS
Wattage 300 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac)
Cooling Fan
Fans
Internal +12V Rails Single Rail
Rail 1 +12V 18 A
Rail 2 +12V 18 A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 21 A
Modular No
Modularity Fully Wired
SLI/CrossFire No
EPS 12V No
Motherboard Connector 24-pin
Connectors 1 x 4+4-pin ATX 12V
Dimensions 140 x 65 x 85 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN89120
Model Number SSP-300TBS
GTIN 4711173873525
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

Reviews
300W Seasonic SSP-30300 TBS, Full Wired, 80PLUS Bronze, Dual Rail, 21A, TFX, PSU is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Does Exactly What It's Supposed To! This was to replace an ageing & faulty TFX PSU & it did the job perfectly, solving the random powering off issue I was having.
