Silverstone 300W TX300 TFX Series 80 Plus Bronze PC Low Noise Power Supply

300W Silverstone SST-TX300, 80PLUS Bronze, Fully Wired, Dual Rail, 29A +12V, 1x80mm Fan, TFX PSU

SilverStone
Scan code: LN81599 Manufacturer code: SST-TX300 Request call
£44.48
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 26th Jun 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

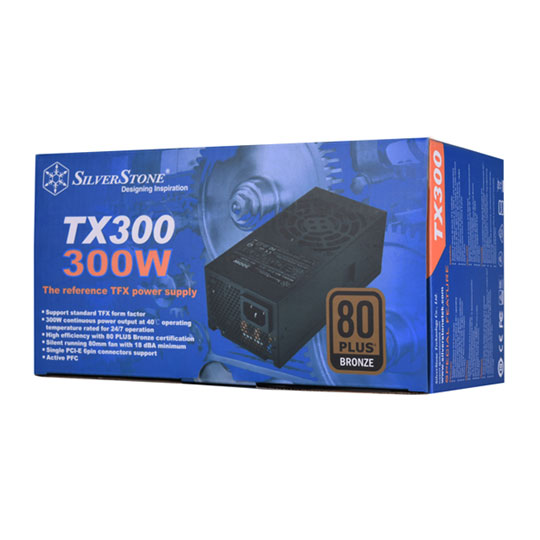

Product Overview As a leading brand in small form factor (SFF) case design and power supply miniaturization, SilverStone launched its first TFX power supply, the TX300, to further widen the scope of SFF design possibilities. It has features that enthusiasts demand such as all black exterior coating, sleeved cables, silent running 80mm fan, and support for PCI-E 6pin connector. In addition to 80 PLUS Bronze level efficiency, the TX300 features 24/7 40? continuous 300W output capability to provide reliable and high-performing system operation.

Features • Support standard TFX form factor.
• 300W continuous power output at 40°C operating temperature rated for 24/7 operation.
• High efficiency with 80 PLUS Bronze certification.
• Silent running 80mm fan with 18 dBA minimum.
• Single PCI-E 6pin connectors support.
• Active PFC.
Specifications
Size TFX
Edition SST-TX300
Wattage 300 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency 85 %
Cooling Fan
Fans 1 x 80mm
Internal +12V Rails Dual Rail
Rail 1 +12V 14 A
Rail 2 +12V 15 A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 29 A
Modular No
Modularity Fully Wired
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 2 x 4-pin Molex
  • 1 x 6-pin PCIe
  • 1 x FDD Power
  • 4 x SATA
Dimensions 85 x 65 x 175 (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
RTB Period:
12 months
Manufacturer Contact Details
TekSpek Guides
PSUs (Power Supply Units)
PSUs (Power Supply Units)
Date Issued: 4th Jul 2011

Let's face it, power-supply units (PSUs) are boring. Presented in what's usually a mundane box spitting cables from one end, this is a product that's neither aesthetically pleasing nor technically interesting to the majority of self-builders.

Read More

80 Plus certification
80 Plus certification
Date Issued: 18th Nov 2010

Conceived back in 2004 and brought to market just a year later, the 80 PLUS initiative is one of many standards introduced in an effort to increase energy efficiency in modern technology. Targeting computer power supplies, it awards PSUs that are able to achieve an energy efficiency of over 80 per cent at varying workloads and a power factor of 0.9 or more at 100 per cent load.

Read More

Green computing at home
Green computing at home
Date Issued: 20th Nov 2008

This TekSpek explains what Green Computing is, what it means to the consumer, and how energy-efficient components can be beneficial in the home.

Read More
