Scan code: LN116985 Manufacturer code: DGS-1520-28MP

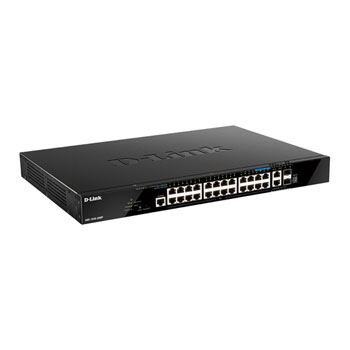

D-Link DGS-1520-28MP 28 Port Layer 3 Stackable Smart Managed PoE Switch

28 Port D-Link DGS-1520-28MP Layer 3 Stackable Smart Managed PoE Switch, 20x GbE PoE, 4x 2.5G PoE, 2x 10G, 2x 10G SFP+

Thumbnail 1 : D-Link DGS-1520-28MP 28 Port Layer 3 Stackable Smart Managed PoE Switch Thumbnail 2 : D-Link DGS-1520-28MP 28 Port Layer 3 Stackable Smart Managed PoE Switch Thumbnail 3 : D-Link DGS-1520-28MP 28 Port Layer 3 Stackable Smart Managed PoE Switch
Scan code: LN116985 Manufacturer code: DGS-1520-28MP
£742.49Item currently awaiting an ETA
Pre order
From £25.37 / month (APR 14.9%)
Monthly Payment: £66.66
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £742.49
Total inc. interest: £799.86
Monthly Payment: £35.64
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £742.49
Total inc. interest: £855.30
Monthly Payment: £25.37
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £742.49
Total inc. interest: £913.11
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £18.54 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Smart Managed Switches, Redefined

The DGS-1520 Series, a new generation of Lite Layer 3 Stackable Smart Managed Switches, includes four 10 GB ports for uplink or stacking up to a total of eight switches with a total of 80 Gigabit stacking bandwidth. Designed for effortless multi-site network deployments with Zero Touch Provisioning, the DGS-1520 Series is also powerful enough for server and storage applications. For unrestricted Wi-Fi 6 edge device capabilities, PoE models offer four 2.5 GB Base-T ports for Multi-Gigabit connectivity. For SMBs with expanding networks and significant bandwidth growth, the DGS-1520 effortlessly adds highly cost-effective 10 GB connectivity to ensure seamless aggregation between access and core layers.


High Availability

The DGS-1520 Series brings reliable, yet affordable, Gigabit connectivity with four 10-Gigabit ports (two 10G Base-T and two 10G SFP+) for high-speed uplink or stacking. Boost your network performance, simplify your network infrastructure, improve bandwidth and reduce cabling complexity.


Zero Touch Provisioning

For multi-site network expansion, the latest firmware and network configurations can be downloaded onto the DGS-1520 Series switches without the need for on-site IT personnel, for rapid and effortless deployment.


Multi-Gigabit Support

Multi-Gigabit ports on the DGS-1520 Series switch (PoE models only) support 100 MB / 1 GB / 2.5 GB speeds to maximize various device capabilities, such as Wi-Fi 6 (802.11ax) access points, which can often exceed single Gigabit speeds.


Advanced L2 and L3 Functionalities

Advanced software features such as selective Q-in-Q, VRRP, RIP and OSPF allows businesses to adapt to changes in their network. For those with expanding network requirements and bandwidth demands, the DGS-1520 Series is a highly cost-effective upgrade option to add 10 Gigabit connectivity to the network infrastructure.


Flexible Hybrid Stacking

Stack up to eight DGS-1520 switches using both copper 10GBASE-T and/or fibre SFP+ ports. The hybrid stacking support adds flexibility as well as lowering the cost of cabling by using copper instead of all fibre.


Minimize Outages with Power Redundancy

For a more resilient network infrastructure, connect up to four DGS-1520 switches (non-PoE models only) with the DPS-520 PoE redundant power supply system through the management port and actively back-up four devices to significantly reduce power redundancy costs.
Auto Discovery: Automatically detect power requirements of connected PD devices.
RPS Port Priority: Enables administrators to define RPS failover policy.
Status Reporting: Administrators can connect via web browser to remotely monitor DPS-520 status.


Low Network Latency, High PoE Budget

High Gigabit-port density with up to 188 GB total switching capacity, and up to 30 W per port with 370 W total PoE budget to power your PoE-enabled devices.


Simplified Management

Managed multiple large wired/wireless device networks with D-View 7 for centralised management to reduce costs and maintenance. D-Link Network Assistant (DNA) is also available to easily set up and manage smaller networks.

Features


• Stackable Smart Gigabit:Physically stack up to 8 switches for expansion and redundancy
• Zero Touch Provisioning: Effortless multi-site deployment with automatic configuration download
• High PoE budget: Up to 370W Power over Ethernet (PoE) power budget to power more devices.
• 10 Gigabit Connectivity: 4 x 10 Gigabit ports for stacking or uplinks to the network core
• Multi-Gigabit PoE Ports: 4 x 2.5G PoE ports, ideal for Wi-Fi 6 access points with Gigabit+ speeds
• Advanced L2 and L3 Functionalities: Including Selective Q-in-Q, VRRP, RIP and OSPF to easily adapt to changes in the network
• Limited Lifetime Warranty & Next Day Service: Register to enjoy D-Link Limited Lifetime Warranty support, with complimentary next business day advance replacement service included.

Specifications
Edition Smart Managed Switch
Form Factor Desktop
Total Network Ports
  • 2 x 10 Gigabit
  • 20 x 10/100/1000 (Gigabit) RJ-45
  • 4 x 100/1000/2.5G BASE-T RJ45
  • 2 x SFP+
PoE Support Type PoE
No. of Ports Providing PoE
  • 20 x 10/100/1000 (Gigabit) RJ-45
  • 4 x 100/1000/2.5G BASE-T RJ45
Other Non-Network Ports
Switching Capacity 140 Gbps
Non-Blocking Throughput
Forwarding Rate 104.16 Mpps
MAC Address Table Size 16k Entries
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ae
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Acoustic Noise 27.1 dB
Max. Power Consumption 453.3 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF) 333946 hours
Power Supply Internal AC Power Supply
Material
Includes
Dimensions (WxHxD) 308.5 x 44 x 441 mm
Weight 4.29 kg
Additional Information
Scan Code LN116985
Model Number DGS-1520-28MP
GTIN 790069454776
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
1 days
Manufacturer Contact Details
Manufacturer:
DLINK UK LTD.
Telephone:
0845 612 0003
