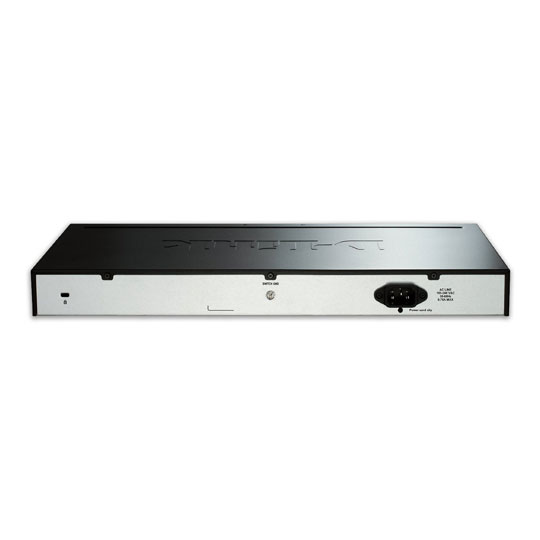

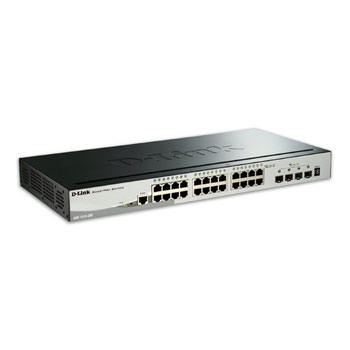

D-Link Gigabit 28 Port SmartPro Stackable Smart Managed Switch DGS-1510-28

Product Overview The DGS-1510 Series switches are equipped with a complete line-up of Layer 2 features, including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Layer Discovery Protocol (LLDP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection automatically detects and shuts down loops created by a specific port or VLAN. The Cable Diagnostics feature, designed primarily for administrators and customer service representatives, can determine cable quality and can quickly discover sections of cabling that need to be replaced.

Traffic Classification & QoS
The DGS-1510 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology built into D-Link Smart switches. This technology consolidates data and surveillance video transmissions through a single DGS-1510 Series Smart Managed switch, saving businesses the costs of maintaining expensive dedicated hardware and infrastructure. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data by giving ASV traffic priority over other packets.

Keep Your Network Secure
D-Link’s innovative Safeguard Engine protects the DGS-1510 Series against traffic flooding caused by malicious attacks. The DGS-1510 Series supports both MAC and web-based access control. This gives network administrators multiple authentication options, reducing deployment times and removing the need for client software. The DGS-1510 Series supports IEEE 802.1X port-based authentication, allowing network users to be authenticated through external RADIUS servers. The Address Resolution Protocol (ARP) Spoofing Prevention feature helps to prevent attacks that may allow an intruder to intercept users’ traffic while the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorised IP assignment.

IPv6 Ready
The DGS-1510 Series is IPv6 ready and supports various IPv6 functions such as MLD Snooping, IPv6 security features, and IPv6 Quality of Service (QoS), ensuring seamless integration with next generation networks. The DGS-1510 Series also supports IPv4/v6 dual stack functionality, which allows the switches to act as a bridge between IPv4 and IPv6 networks. Features Product Highlights
10 Gigabit Connectivity
High bandwidth uplinks eliminate network bottlenecks and provide low-latency connections for network servers and storage

Comprehensive Management
An intuitive web interface, SNMP support, and a powerful Command Line Interface provide a complete set of management features

Layer 3 Functions
Wired speed inter-VLAN routing helps by reducing the pressure of routers and backbone networks, improving the overall network efficiency


Advanced Features
• Physical stacking of up to 6 devices via two 10G ports
• Ethernet Ring Protection Switching (ERPS)
• Static Routing
• Auto Surveillance VLAN
• Auto Voice VLAN
• Loopback Detection
• LLDP/LLDP-MED

Security Features
• Access Control List (ACL)
• D-Link Safeguard Engine
• BPDU Attack Protection
• ARP Spoofing Prevention
• IP-MAC-Port Binding
• DoS Attack Prevention
• Clientless MAC/Web Access Control

Intuitive Management
• Multi-language web-based user interface
• Built-in SNMP MIB for remote network management systems
• Comprehensive CLI support
• Manageability for both IPv4/IPv6 environments
• Dual image support
• D-Link Network Assistant (DNA) utility for easy installation
• Console interface for out-of-band management

Green Technology
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• D-Link Green 3.0 power-saving features
