CORSAIR Hydro X Series XR5 NEO 240mm V2 Custom Cooling Radiator
CORSAIR Hydro X Series XR5 NEO 240mm V2 Custom Cooling Radiator
Scan code: LN168194 Manufacturer code: CX-9035001-WW
£69.98
Add To Basket
Get it Tomorrow, 08 JulIn stock
  • Thumbnail 1 : CORSAIR Hydro X Series XR5 NEO 240mm V2 Custom Cooling Radiator
  • Thumbnail 2 : CORSAIR Hydro X Series XR5 NEO 240mm V2 Custom Cooling Radiator
  • Thumbnail 3 : CORSAIR Hydro X Series XR5 NEO 240mm V2 Custom Cooling Radiator
  • Thumbnail 4 : CORSAIR Hydro X Series XR5 NEO 240mm V2 Custom Cooling Radiator

CORSAIR Hydro X Series XR5 NEO 240mm V2 Custom Cooling Radiator

240mm CORSAIR XR5 NEO V2 Custom Cooling Radiator, Black, 30mm thickness, 2 x 120mm fan mounts, Copper / Brass, G1/4"
MORE INFO
MORE INFO

Scan code: LN168194 Manufacturer code: CX-9035001-WW
£69.98
£5.48 Next day delivery
Order now and get it tomorrow, Wed 8th Jul
Add To Basket
Get it Tomorrow, 08 JulIn stock
Pay in 3 interest-free payments of £23.33

Email me when the availability or price changes

  • By DPD On 8th Jul Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

240mm Hydro X Series XR5 NEO V2 Custom Cooling Radiator from Corsair

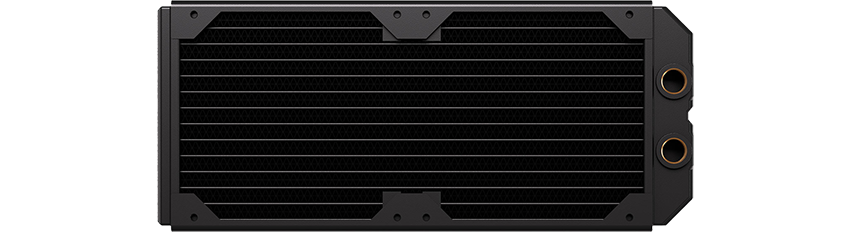

Hero Image of Hydro X Series XR5 NEO V2

CUSTOM COOLING RADIATORThe CORSAIR Hydro X Series XR5 V2 Custom Cooling Radiator delivers extreme cooling performance, featuring a 30mm thick radiator and 25-micron thin cooling fins to maximise heat dissipation surface area. A premium copper radiator core is optimized for use alongside copper CPU and GPU water blocks, enhancing thermal transfer efficiency. Intuitive features, such as Integrated Fan Screw Guides, built-in Screw Protection Plates, improved support for iCUE LINK fans, simplify installation and help prevent radiator damage. With standard G1/4" threads for universal compatibility and a surface area capable of handling cutting-edge high-performance hardware, the Hydro X Series XR5 V2 Custom Cooling Radiator is engineered to cool even the most ambitious custom liquid cooling loops and conquer heat.

240mmSize

2 x 120mmCompatible Fans

30mmRadiator Thickness

Built for Ambition

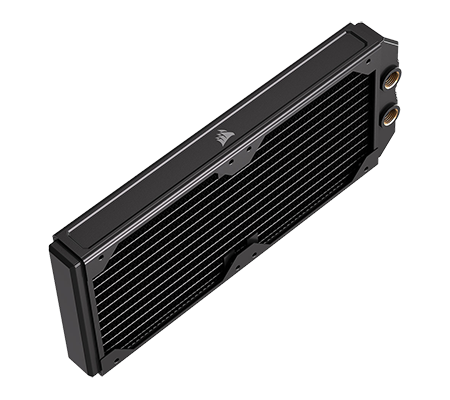

3/4 of Corsair Cooler

Extreme Performance Fan mounts on each side of the radiator give the flexibility to build high-performance push-pull configurations or scale up airflow in more complex layouts. Whether you’re chasing lower temps or assembling a showcase loop, the XR V2 Series delivers the thermal headroom needed for serious custom cooling.

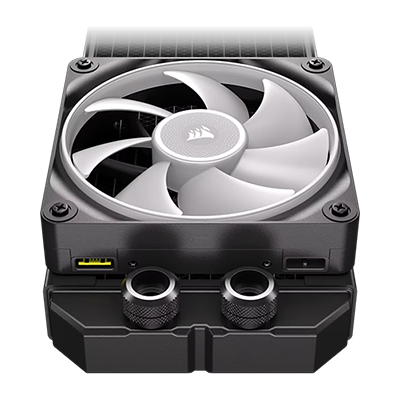

Close up Image of Inlet and Outlet Ports

Optimised for iCUE Link Carefully positioned inlet and outlet ports enable full connectivity for iCUE LINK devices on both sides of the radiator. This allows for flexible fan configurations, including push-pull setups, while keeping cable routing clean and straightforward

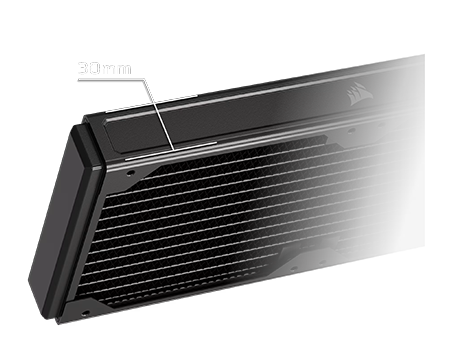

Close Up Image of Fins

High Surface Area A 30mm-thick radiator with 25-micron cooling fins provide a high thermal transfer rate optimized for CORSAIR high-performance copper water blocks. The dual fin arrangement improves heat dissipation efficiency, making this an ideal radiator for the most demanding setups where every degree counts.

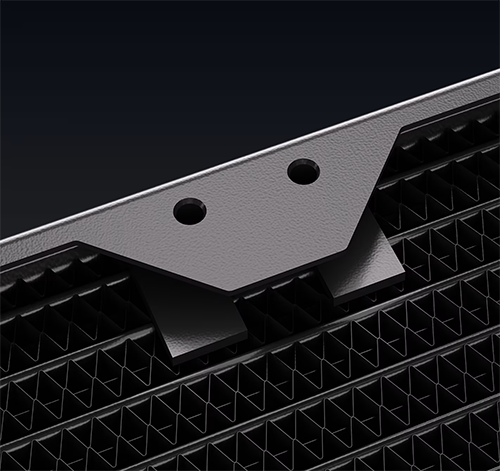

Close up image of the screw guides

Easy and Safe Mounting Screw Protection Plates prevent long or over-tightened screws from damaging the radiator core, while integrated Fan Screw Guides ensure easy installation.

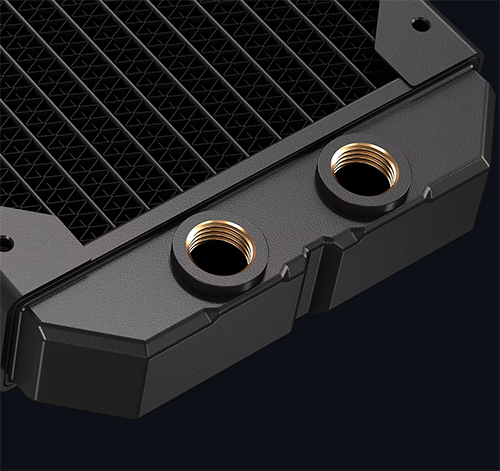

Close up of Threads

Standard G1/4" Threads The inlet and outlet ports use standard G1/4" BSPP threading, ensuring compatibility with a wide range of fittings and custom cooling components. Whether using soft or hard tubing, straight or angled adapters, the ports integrate cleanly into any setup and support everything from high-flow loops to compact builds.

Corsair 3-Year Warranty Icon

World-Class SupportCorsair's award-winning service means you can enjoy your gear worry-free.

Specifications
Edition CORSAIR Hydro X Series XR5 NEO 360mm V2
Type 240mm Water Cooling Radiator
Compatible Fans 2 x 120mm
Radiator Thickness 30 mm
Features High-Quality Polyurethane Coating
Fin Spacing 25 Micron Copper Fins
Port Threads G1/4" BSPP
Screw Thread Size M4xP0.7
Construction Materials
  • Brass
  • Copper
Loop Compatible Metals
  • Brass
  • Copper
Compatible Coolants CORSAIR XL or equivalent
Max. Coolant Operating Temperature 60 °C
Colour Black
Radiator Dimensions 278 x 30 x 120 mm (WxHxD)
Weight
Additional Information
Scan Code LN168194
Model Number CX-9035001-WW
GTIN 840440400462
