New
Scan code: LN110331 Manufacturer code: FX2421

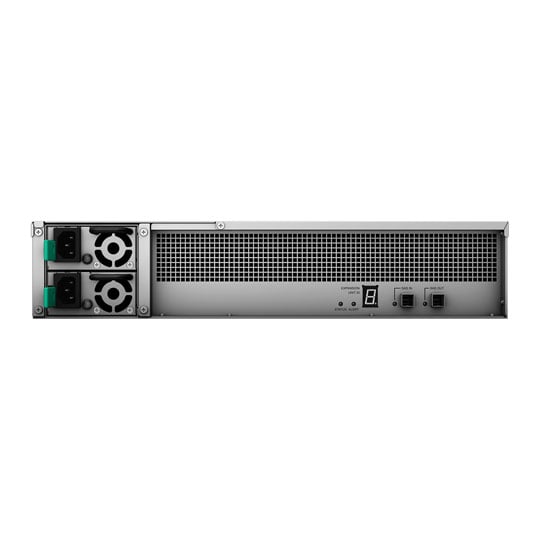

Synology 24 Bay FX2421 FlashStation Expansion Unit

24 Bay Synology FlashStation Expansion FX2421, 2U Rack Enclosure, 2.5" SSD/HDD, SATA/SAS, Hot Swappable

Thumbnail 1 : Synology 24 Bay FX2421 FlashStation Expansion Unit Thumbnail 2 : Synology 24 Bay FX2421 FlashStation Expansion Unit Thumbnail 3 : Synology 24 Bay FX2421 FlashStation Expansion Unit Thumbnail 4 : Synology 24 Bay FX2421 FlashStation Expansion Unit
Scan code: LN110331 Manufacturer code: FX2421
£3,456.49Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

24-bay 2.5” Expansion Unit for Synology FlashStation

Expand your Synology FlashStation with Expansion Unit FX2421 for 24 additional 2.5” drive bays whenever needed. Without additional software configuration, FX2421 is immediately ready for use when connected to Synology FlashStation. FX2421 expansion units can also be used as a dedicated and rapidly accessible local backup destination.


High-Performance Data Transmission

The high-speed expansion cable provided with FX2421 enables high bandwidth connectivity for maximum data throughput between your Synology FlashStation and Expansion Unit. Drives in FX2421 operate with minimum data latency, as if installed directly on your Synology FlashStation, allowing you to take advantage of high SSD I/O performance.


High-Reliability Design, Easy Hardware Setup

The FX2421 is a highly reliable and thoroughly tested expansion unit that comes with hot-swappable drive trays and modularized components. Redundant power supplies and system fans can be replaced with ease to ensure maximum service uptime. The optional RKS1317 sliding rail kit provides fast rack fixing lock support for quick and secure rack cabinet installation.

Features

Supports Creating Volumes Across Different Units: FS6400, FS3600, FS3400.
• Expansion Unit FX2421 can only be used with identical expansion units.
• DSM version requirement: 6.2.3-25426-2 or later version.
• To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
Compatible Drive Type: 2.5” SAS HDD, 2.5” SAS SSD, 2.5” SATA SSD.
Max Internal Raw Capacity: 92.16TB (3.84TB drive x 24) (Capacity may vary by RAID types.)

Specifications
Edition FX2421
NAS Form Factor 2U Rackmount
Bays 24 Bay
Total Storage Included N/A
Type of Drives Included
Edition of Drives Included
Capacity of Drives Included
Max. Storage Capacity 92.16 TB
Drive Interface Support 24 x SAS/SATA III - 6Gb/s
Drive Form Factor Support 24 x 2.5"
Internal Flash Memory No
Internal Flash Memory Capacity
DOM Module No
DOM Capacity
CPU Type
CPU Model
CPU Cores
CPU Speed
RAM Memory Included
RAM Memory Type
Max. RAM Memory Supported
Cache Drive Interface
Included Cache Drive Capacity
Included Cache Drive Type
LAN Type N/A
Expansion Slots
External Connectivity 2 x SAS 6Gb/s
Cooling Fan
Noise Level 57 dB(A)
PSU Type Redundant
PSU Wattage 500 W
Max. Power Consumption 190.99 W
Physical Security
Dimensions 430.5 x 88 x 692 (WxHxD mm)
Weight 14.5 kg
Additional Information
Scan Code LN110331
Model Number FX2421
