Scan code: LN140165 Manufacturer code: PA24US

ASUS 24” ProArt PA24US Professional On Set 4K 12G-SDI DisplayHDR 600 Monitor

23.6” ASUS ProArt PA24US 4K HDR Monitor, 99% Adobe RGB/95% DCI-P3, 3840x2160, 60Hz, HDR10, 12G-SDI/HDMI2.0/DP1.4/USB-C

Thumbnail 1 : ASUS 24” ProArt PA24US Professional On Set 4K 12G-SDI DisplayHDR 600 Monitor Thumbnail 2 : ASUS 24” ProArt PA24US Professional On Set 4K 12G-SDI DisplayHDR 600 Monitor Thumbnail 3 : ASUS 24” ProArt PA24US Professional On Set 4K 12G-SDI DisplayHDR 600 Monitor Thumbnail 4 : ASUS 24” ProArt PA24US Professional On Set 4K 12G-SDI DisplayHDR 600 Monitor
Scan code: LN140165 Manufacturer code: PA24US
Order by 7PM today and get it tomorrow
£1,598.99
Get it Tomorrow, 24 JunIn stock
From £45.09 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £144.87
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,598.99
Total inc. interest: £1,738.36
Monthly Payment: £78.08
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,598.99
Total inc. interest: £1,873.79
Monthly Payment: £56.00
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,598.99
Total inc. interest: £2,015.66
Monthly Payment: £45.09
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,598.99
Total inc. interest: £2,163.92
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £42.49 / month (APR 19.9%)
Delivery Options
  • By DPD On 24th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

ASUS - '24" ProArt Display PA24US'
On Set SDI Monitor

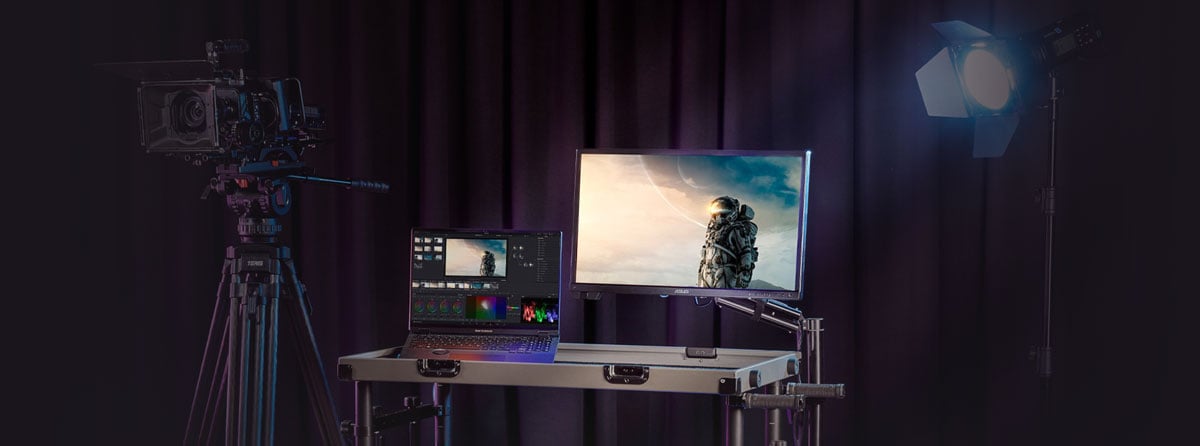

ASUS ProArt PA24US Monitor Hero Banner with DIT Cart, Camera, Pro Art Laptop and studio Light infront of a stage curtain

Professional On Set MonitorThe ProArt Display PA24US is 23.6-inch 4K HDR, On Set monitor that offers highly accurate colours and details with a high 187 PPI IPS panel with 99% Adobe RGB and 95% DCI-P3 colour space coverage to bring out the finest detail in your creations. Featuring a 12G-SDI input supporting video signals up to uncompressed 4K@60Hz and up to a quad-view at the same time. A built-in motorized flip colorimeter for auto/self-calibration to ensure professional-grade colour accuracy with 600nits peak brightness and support for multiple HDR formats to provide the ideal platform for working with HDR content.

4K HDR23.6", 3840x2160

187High PPI

IPS178° Wide-view

10-bitColour Depth

99%Adobe RGB

95%DCI-P3

600 nitsPeak Brightness

DisplayHDR 600VESA Certified

Self/Auto CalibrationBuilt-in Motorized Flip Colorimeter

HDRHDR-10, HLG

12G-SDIInput

Calman ReadySeamless Calibration

Ergonomic StandSwivel, Tilt, Pivot, Height Adjustment

Comprehensive Connectivity12G-SDI, USB-C®, HDMI®, DisplayPort™ and USB Hub

ASUS Now with Adobe Creative Cloud

ASUS ProArt Displays with Adobe Creative Cloud CC

Three-Month Membership of Adobe Creative CloudSwitched-on digital creatives demand imagination-unleashing tools. ASUS and Adobe have joined forces to ensure that today’s creators are equipped with the powerful hardware and software needed to bring their best ideas to life.

By Purchasing eligible ASUS products you are able to receive complimentary three-month subscription to Adobe Creative Cloud, opening up access to over 20 world-class creative apps for desktop and mobile platforms. This Adobe Creative Cloud membership also includes 100 GB of cloud storage, Adobe Portfolio, Adobe Fonts and more.

Redeem Here

Empowering Content Creators

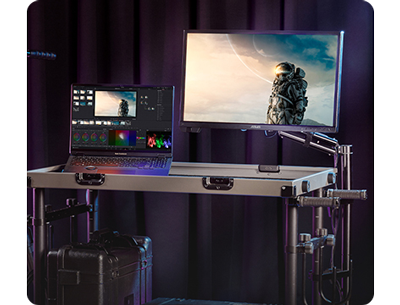

ASUS ProArt PA24US mounted on a DIT cart with ProArt creator laptop

Digital Imaging Technician (DIT)Needs a high-quality SDI monitor for on-set quick colour grading and managing production workflow. It can provide precise and true colour reproduction and details from camera and present to director/customers.

colourist sat working at his desk with a female portrait photograph open on a monitor

Colourists12G-SDI input connection lets creators who are using SDI PCIe capture cards or capture boxes can be directly connect to the PA24US via SDI instead of HDMI, delivering 4K high quality uncompressed videos to preview precis image performance.

two editors sat working at a monitor with a colour grading window open

Filmmakers & Video EditorsAn ultra-high-resolution with wide-colour-gamut monitor performance is a must-have tool for 4K HDR video production. Factory pre-calibrated ensures industry-leading colour fidelity, and a wide colour gamut and Delta E < 1 colour difference ensure outstanding colour accuracy.

Impeccable 4K HDR Imagery On-Set

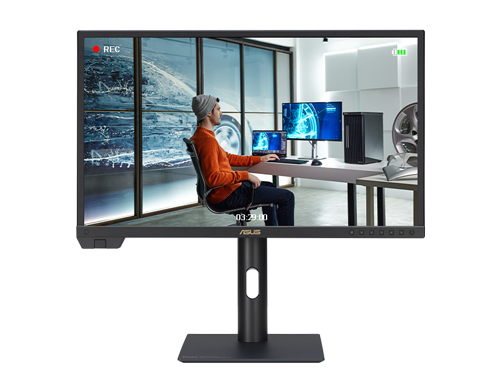

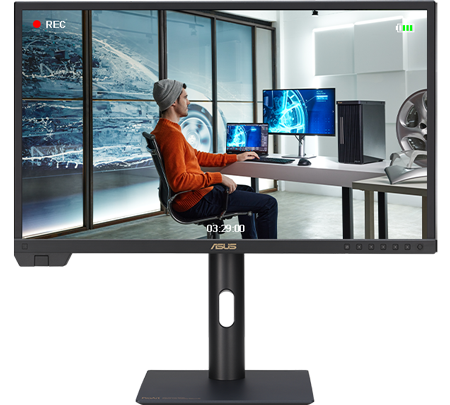

ProArt PA24US with 4K video playing of a man in an orange sweatshirt sat working at a desk with a ProArt workflow

Uncompressed 4K Video23.6-inch with 4K UHD (3840 x 2160) panel delivers four times the pixel density and three times more onscreen space than similarly sized FHD displays, resulting in sharper visuals with greater levels of detail.

ProArt Display PA24US features 12G-SDI connection, allows receiving and transmitting uncompressed up to 4K@60Hz video footage directly from camera devices with ultra-low latency.

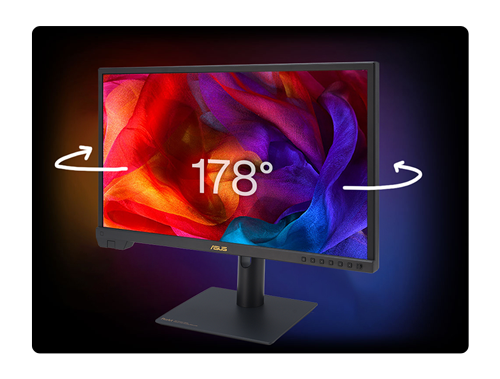

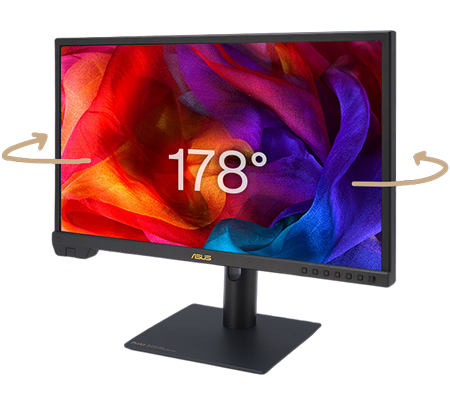

ProArt PA24US with a multi coloured background, and 178° in white text overlayed with directional arrows for the viewing angle

Lifelike Views With 178° Wide View AngleFrameless IPS panel provides 178° viewing angles, both horizontally and vertically, so you can enjoy its beautiful visuals from almost any direction.

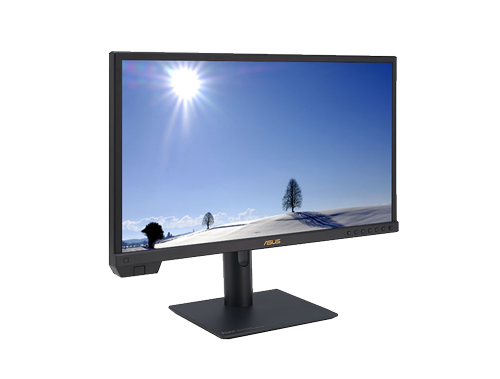

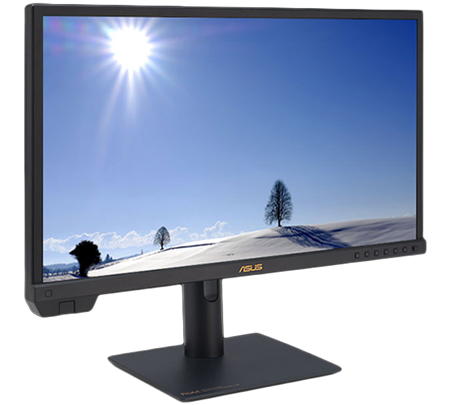

ProArt PA24US displaying HDR video of a snow filled landscape with hills, isolated trees and  bright blue skies

High Dynamic RangeProArt Display PA24US features up to 600 nits of brightness, also passed VESA DisplayHDR 600 certification. Multiple HDR format supports HDR-10 / HLG high dynamic range technology for brighter whites and darker blacks, resulting in a rich and lifelike viewing experience.

Intuitive and Intelligent Calibration

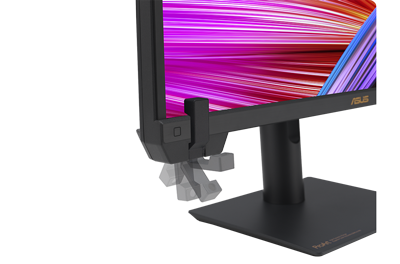

ASUS PA24US with the built in self calibration active

Self CalibrationProArt Displays now boasts an innovative self-calibration feature for the embedded colorimeter. The self-calibration is a standalone solution without any software and compatible with any operating system. You can directly complete the colour calibration and scheduled colour calibration functions through the OSD operation of ProArt Display. With this flexibility, you can achieve colour consistency anytime and anywhere

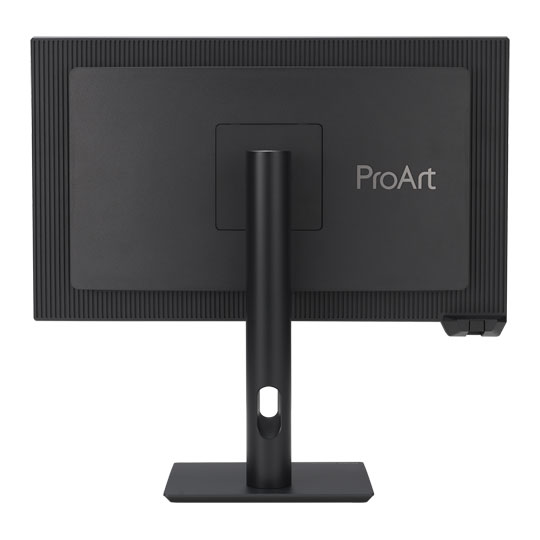

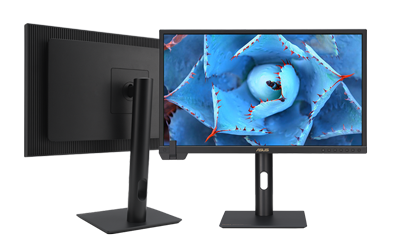

ProArt PA24US front and back views

ProArt CalibrationASUS ProArt Calibration technology saves all colour parameter profiles on the ProArt monitor’s internal scaler IC chip, instead of on the PC. The monitor can be calibrated and the look-up table subsequently rewritten, allowing users to connect it to devices with different operating systems or applications without needing to adjust settings.

*ProArt Calibration support will be ready on 2023/Q4 via firmware update.

ASUS ProArt Color Center

ProArt Color CenterProArt Color Center offers remote group control and calibration tools, allowing you to handle these vital tasks from a centralized location. You’ll be able to remote control & group calibration, scheduled calibration and customized colour parameters to maintain professional-level accuracy and consistency all the time.

*ProArt Color Center support will be ready on 2023/Q4 via firmware update.

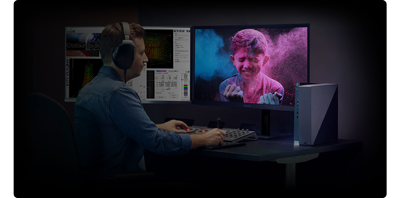

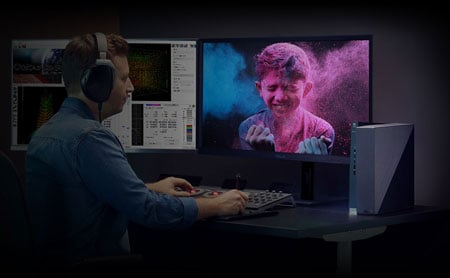

Man sat a desk with 2 monitors and a vibrant blue and pink photo

Seamless CalibrationProArt Displays are compatible with most major calibrators, including those from X-Rite, Datacolor and Klein. They also work seamlessly with Calman and Light Illusion ColourSpace CMS professional hardware calibration software.

*Calman Ready and Light Illusion ColourSpace CMS support will be ready on 2023/Q4 via firmware update.

99% Adobe RGB

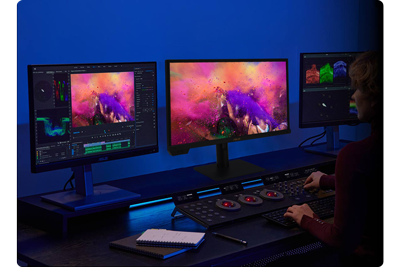

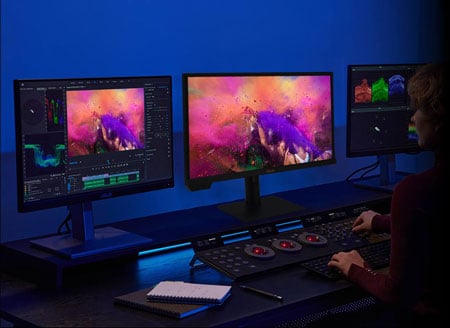

Colourist with a three monitor setup and colour grading wheels

Enjoy True-to-life ColourPA24US exceeds industry colour reproduction standards with its 99% Adobe RGB and 95% DCI-P3 colour gamut, and it features true 10-bit colour depth to display more than 1.07 billion colours. 600 nits peak brightness to ensure the deepest blacks and brightest whites, enabling PA24US to accurately display the most minute details in shadows and bright highlights for incredibly realistic visuals.

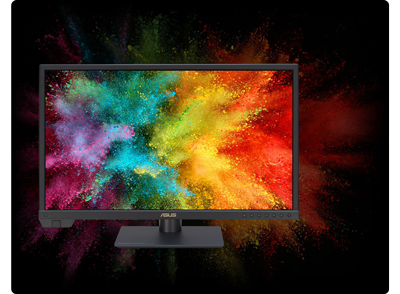

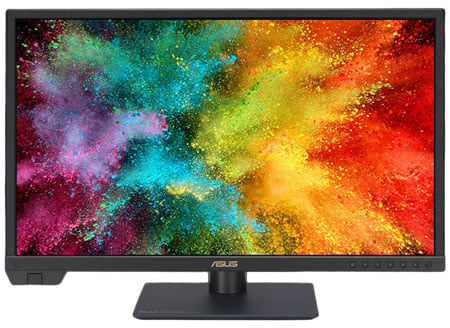

ProArt PA24US Monitor with a colour dye explosion image that reaches out of the frame and onto the black background

Class-Leading Colour FidelityEach ProArt display is factory pre-calibrated using a new, three-scale process to guarantee industry-leading colour fidelity. The display then undergoes stringent testing using ASUS advanced grayscale tracking technology to ensure smoother colour gradations, better uniformity and high colour accuracy with a Delta E < 1 colour difference value. Each grayscale level is also carefully measured and set to ensure compliance with the precise DICOM standard for medical use.

Create in Ultra-Vivid HDR

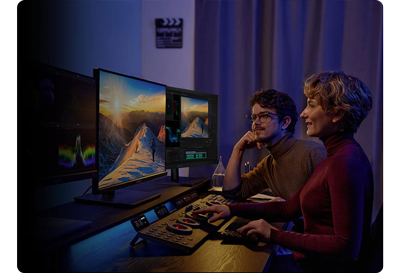

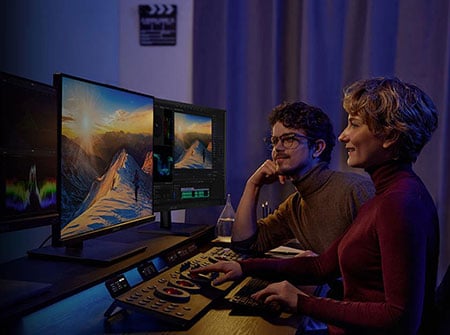

man and woman sat working at a colour grading workstation with multiple ASUS ProArt monitors

ASUS Smart HDR TechnologyExclusive ASUS Smart HDR technology enables ProArt Display PA24US to support multiple HDR formats, including HLG and HDR10.

HLG allows users to view and create material for broadcast and satellite TV platforms such as BBC iPlayer, Japan NHK TV, and DirecTV.

HDR10 support ensures compatibility with existing streaming video services and a growing list of HDR-enabled games.

Multiple PQ CurvesASUS ProArt Displays support multiple HDR-10 curves, including PQ Hard Clip, PQ Optimized and PQ Basic, which can cover all content creation needs.

ASUS ProArt Display PA24US PQ Curves

PQ Hard ClipPreserve PQ curve till displaying maximum luminance with accuracy. Any luminance higher than display maximum will be mapped to display maximum.

ASUS ProArt Display PA24US PQ Curves

PQ OptimizedReproduce accurate gradations corresponding to maximum brightness of the monitor.Deliver the optimized HDR performance of this display.

ASUS ProArt Display PA24US PQ Curves

PQ BasicPresent general HDR performance.

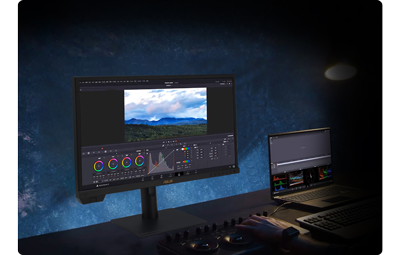

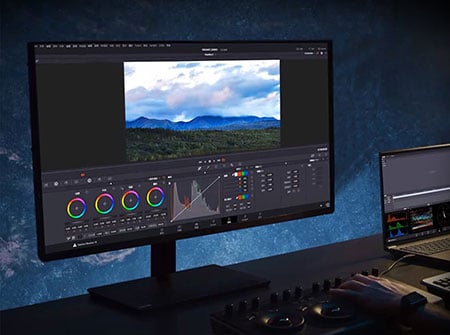

PA24US with a colour grading software window on display against a light blue background wall

HDR PreviewHDR Preview enables a direct camera-to-monitor connection to view captured HDR content with its full tonal range. It also works within most video editing software platforms, providing accurate simulations of the final output for an easier, more streamlined editing experience.

*Raw data/camera imagery must support HDR mode and follow PQ curve.

Streamlined, Efficient Workflows

graphic showcasing 12G-SDI BNC connector and the different data rates of 3G, 6G and 12G-SDI

12G-SDI ConnectivitySDI (Serial digital interface) is a professional video signal that’s preferred in production environments, providing longer distance without video compression with reliability. BNC-type cable that has specialized connectors on each end to lock into the devices they connect to, so it cannot be easily dropped or pulled out.

Compare with general 3G-SDI, 12G-SDI provides up to 4x bandwidth allows receiving and transmitting uncompressed up to 4K@60Hz video footage directly from camera devices with ultra-low latency.

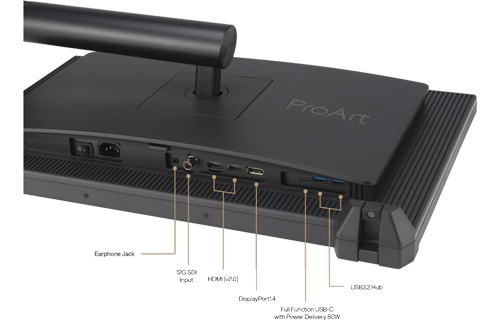

photo of the rear and bottom of the PA24US with highlighted connectors

Connect to your workflowRich connectivity offers a full-function USB-C port enables superfast data transfers, video signal and 80-watt power delivery to charge laptops and other devices―all via a single cable. DisplayPort1.4 and two HDMI(v2.0) for compatibility with current and future displays and peripherals. It also features an earphone jack and USB 3.2 hub.

PiP and PbP Modes

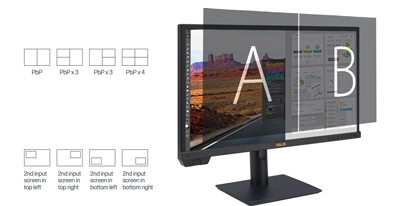

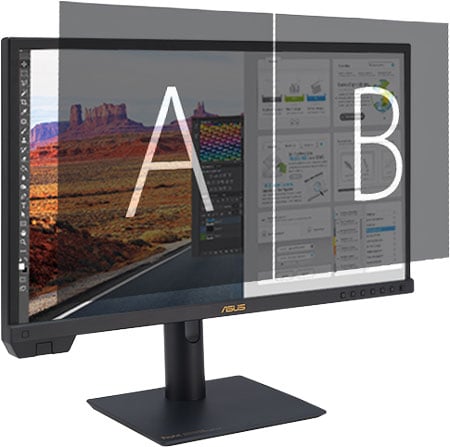

ProArt PA24US with picture in picture and picture by picture overlay options

Picture-by-Picture (PbP)View two to four different settings simultaneously by placing multiple input sources onscreen side-by-side; and configure each individual window's colour settings with sRGB, Adobe RGB, DCI-P3, Rec. 2020, User Mode 1 or User Mode 2.

Picture-in-Picture (PiP)Easily place your second input source in a window in one corner of the display.

Caring for your Eyes

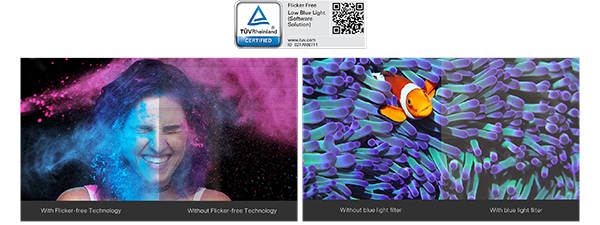

ASUS Flicker Free technology

ASUS Flicker-Free technologyASUS Flicker-Free technology ensures a more comfortable viewing experience by reducing on-screen flicker to minimize eye strain, headaches and eye fatigue that can occur when spending long hours in front of a display. Exclusive ASUS Ultra-Low Blue Light technology protects your eyes from harmful blue light emissions with four blue-light filter settings that are easily accessed through the on-screen menu via the hotkey.

Blue Light FilterThe TÜV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light, and you can easily access via a hotkey. ProArt displays has undergone stringent performance tests and has been certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services, to be flicker-free and to emit low blue light levels.

Designed for Comfortable Viewing

Ergonomic DesignA comfortable viewing position is always easy to achieve with ASUS ProArt Display. With an ergonomically-designed quick release stand with tilt, swivel, pivot and height adjustments provide comfortable viewing and usage experiences. Furthermore, the VESA wall-mountable to save on desktop space.

ASUS ProArt Display PA24US 4K HDR Professional Monitor

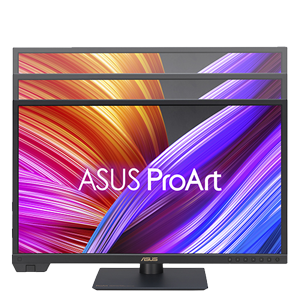

Height Adjustment0 ~ 130mm

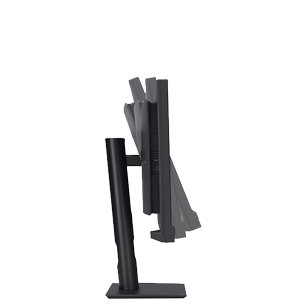

ASUS ProArt Display PA24US 4K HDR Professional Monitor

Tilt-3°~+21°

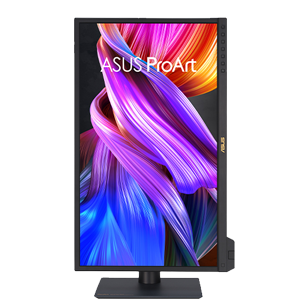

ASUS ProArt Display PA24US 4K HDR Professional Monitor

Pivot-90°~+90°

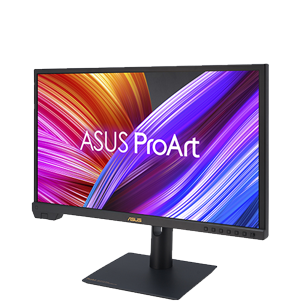

ASUS ProArt Display PA24US 4K HDR Professional Monitor

Swivel°-30°~+30°

Built-in Preview Modes

Accurate Real-Time On-set PreviewQuickFit Plus is clever feature overlays a grid on the screen that allows to align and preview. Center marker and safety area it can real-time preview when you are on-set shooting to avoid video image beyond the screen. Ruler provides actual size of inch ruler in the edge; you also can customize the working size to fit your preference.

ASUS ProArt Display PA24US 4K HDR Professional Monitor Central Marker Mode

Central Marker

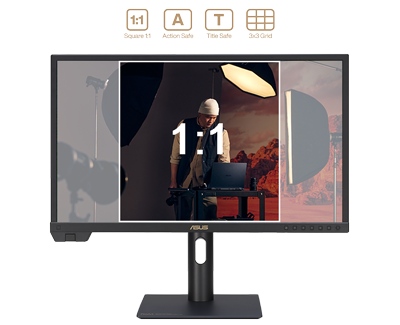

ASUS ProArt Display PA24US 4K HDR Professional Monitor Safety Area Mode

Safety Area

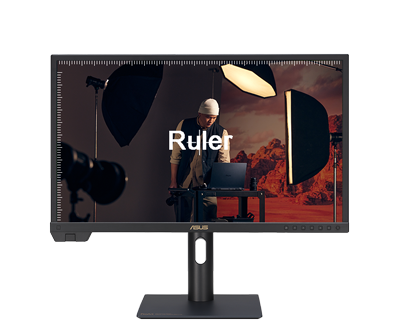

ASUS ProArt Display PA24US 4K HDR Professional Monitor Ruler Mode

Ruler

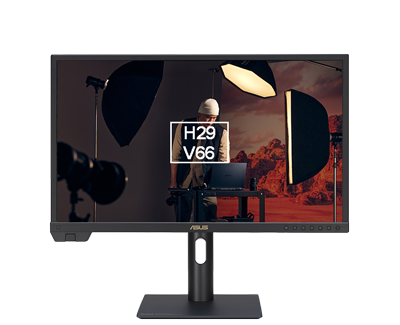

ASUS ProArt Display PA24US 4K HDR Professional Monitor Custom preview mode

Customisation

Sustaining an Incredible Future

Energy Star Rated Display

Environmental Certification*ASUS monitors are stringently tested to meet the requirements of world-leading sustainability certifications. These tests include a comprehensive database of up-to-date criteria, independent verification, and a structured system for continuous improvement.

ASUS Eco friendly packaging icon

Eco-friendly PackagingThe latest ASUS monitor packaging are made of 100% recyclable paper packaging. ASUS has designed the packaging to minimize weight and volume, which helps conserve natural resources and allows more devices to be transported in a single shipping container.

ASUS Energy efficient icon

Energy-Efficient FeaturesSelect ASUS monitors have a power-saving Eco-mode, and achieve zero-watt power consumption with hard-switch off.

ASUS eco friendly materials icon

Eco-Friendly materialsExtensive research and development ensure ASUS monitors are made from eco-friendly materials like post-consumer recycled (PCR) plastics or components like mercury-free panels.

Specifications
Screen Size 23.6"
Edition ProArt PA24US
Panel Type IPS
Panel Coating Non-Glare
Panel Finish Matte
Touchscreen No
Backlight LED
Pitch Size 0.135mm
Curvature N/A
Adaptive Frame-rate Technology N/A
NVIDIA Reflex No
HDCP Yes
Connectors
  • 1 x 12G-SDI
  • 1 x Audio Line-Out
  • 1 x DisplayPort 1.4
  • 2 x HDMI 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB Type-C (DisplayPort w/ Charging)
Position Adjustment
  • Height Adjustable
  • Horizontal/Vertical Standing
  • Pivot
  • Swivel
  • Tilt
Resolution 3840x2160 (Ultra HD)
Aspect Ratio 16:9
Max. Refresh Rate 60Hz
Response Time 5 ms
Brightness 350 (600 HDR) cd/m²
Viewing Angle 178/178 (°H/°V)
Contrast Ratio/Dynamic Contrast Ratio 1,000:1/1,000,000:1 HDR
Color Gamut 100% sRGB, 99% AdobeRGB, 95% DCI-P3
Color Bit Depth 10-Bit (1.07B Colours)
HDR Support Yes
Supported HDR Standards
  • HDR10
  • HLG
Speakers Yes
Speaker Configuration 2W x2
Web Camera No
Power Usage (Switched on) 29.02 W
VESA 100 x 100
3D Support No
Anti-Theft Features Kensington-lock Ready
Included Accessories
  • 1 x Calibration Report
  • 1 x DisplayPort Cable
  • 1 x HDMI Cable
  • 1 x Power Cable
  • 1 x Quick Start Guide
  • 1 x USB Type-C Cable
  • 1 x Warranty Card
Monitor Colour Black
Dimensions (with stand) 549.3 x (390.9-520.9) x 190.4mm (WxHxD)
Dimensions (without stand) 549.3 x 345.7 x 62.5mm (WxHxD)
Weight (with Stand) 6 kg
Note
Additional Information
Scan Code LN140165
Model Number PA24US
GTIN 4711387267080
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
