CalDigit Thunderbolt 5 Plus 20 Port AIO Dock w/10GbE, Triple 4K Display & 140W Charge

Caldigit TD5 PLUS+ - 20 ports of extreme connectivity

The CalDigit TS5 Plus is the ultimate Thunderbolt 5 docking station designed for demanding Mac and Windows professionals. Packed with 20 ports, including 3 Thunderbolt 5 downstream (80Gbps) and 1 Thunderbolt 5 host port (up to 120Gbps), it delivers unmatched connectivity for multi-display setups and high-speed data workflows. The dock supports up to three external displays on Windows Thunderbolt 5 PCs, including dual 4K 240Hz or dual 6K 60Hz monitors, plus a DisplayPort 2.1 output. Featuring robust 140W power delivery, the TS5 Plus can fast-charge laptops like the 16” MacBook Pro without compromise. It also includes 10 USB-A and USB-C ports with dual USB controllers for double bandwidth, integrated 10 Gigabit Ethernet for ultra-fast networking, and front-facing UHS-II SD/microSD card readers for media professionals. Its sleek space black design and thoughtful features make the TS5 Plus a powerhouse hub for the modern creative and power user.

MORE POWER. MORE PORTS.

The Thunderbolt Station has always delivered plenty of ports, and the TS5 Plus is no exception.

Delivering 20 ports, all of which can be used at the same time, the TS5 Plus is pushing the limits of connectivity.

It Just Works

The TS5 Plus is a powerful device, and to be used to its maximum it requires a Mac or PC with Thunderbolt or USB4 connectivity. This next-generation dock is compatible with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, USB4 v2 or USB4 host devices.

140W Power Delivery

The TS5 Plus provides up to 140W power delivery for even the most demanding laptops. This makes it ideal for laptops like the 16" MacBook Pro with M3/M4 Pro or Max chips that require 140W.

10 Powerful USB Ports

With 10 USB ports on the TS5 Plus, a mixture of USB-A and USB-C, you have plenty of port connectivity to connect your USB accessories*.

All of the USB ports on the TS5 Plus offer 10Gb/s performance, and 7.5W of power (excluding the front 36W USB-C port which offers 36W).

Dual USB Controllers

The TS5 Plus is a unique device, and this is ultimately demonstrated by being the only dock with dual USB controllers*.

Traditional Thunderbolt docks feature a single USB controller that all of the USB, and Thunderbolt ports on the dock share. The TS5 Plus’ dual controllers allow the dock to provide two individual 10Gb/s controllers for increased bandwidth to connected devices. This is a great solution for anyone adding multiple high bandwidth USB devices to their dock.

36W of Power for Accessories

The TS5 Plus is a unique device, and with the inclusion of a 36W USB-C port, the TS5 Plus offers a convenient yet powerful front-facing USB-C port which is ideal even for the most power hungry USB-C device.

Not only does the front USB-C port feature 36W, but so do the two spare Thunderbolt 5 ports. Previous generations of Thunderbolt ports featured 15W downstream ports. The TS5 Plus has over doubled that wattage to provide even more power to your devices.

Thunderbolt 5

The TS5 Plus features an 80Gb/s bi-directional Thunderbolt 5 ports, which is double the performance of Thunderbolt 4.

The PCIe performance of the Thunderbolt ports have been doubled from the previous generation to 64Gb/s PCIe 4.0. This is ideal if you are intending on connecting high performance SSDs or RAID devices to the TS5 Plus. This powerful dock will support transfer speeds up to 6,200MB/s.

Bandwidth Boost

When you connect bandwidth intensive monitors to the TS5 Plus it will enable Bandwidth Boost in order to prioritize displays, and provide up to 120Gb/s performance. This will then keep 40Gb/s for the rest of the dock.

The great thing about this is that it will allow for higher refresh rate displays to be connected to the TS5 Plus, as well as three 4K 144Hz displays.

10 Gigabit Ethernet

At the time, the CalDigit TS4 was the first Thunderbolt 4 dock to include a 2.5GbE port, and with the TS5 Plus we are going 4x better by including a 10GbE port.

SD & microSD 4.0 UHS-II

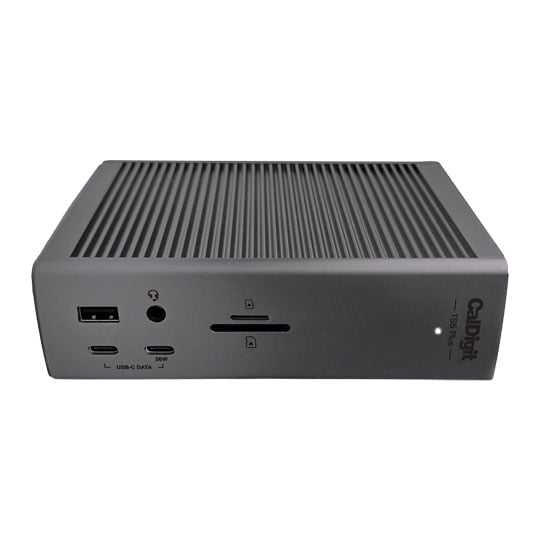

The TS5 Plus features both microSD and SD card readers on the front of the device for easy access. Both ports offer UHS-II performance and can be used at the same time.

Rear Host Port

Most generic Thunderbolt docks feature a front host Thunderbolt port which results in messy cable management.

The TS5 Plus’ unique rear Thunderbolt 5 host port features a more elegant solution for a clean desktop experience.

Apple SuperDrive

Devices such as the Apple SuperDrive are recommended by Apple to be directly connected to a laptop as they require extra power. CalDigit has developed a driver for the SuperDrive so that it can be directly connected to the TS5 Plus.

Offline Charging

The front USB-A port, all of the USB-C ports, and two of the rear USB-A ports on the TS5 Plus provide offline charging.

This function allows those specific ports the ability to charge your USB devices, such as phones and tablets, even when the TS5 Plus is not connected to a host device.

Interface

• 1 x Thunderbolt 5 Host Port (Up to 120Gb/s)
• 2 x Thunderbolt 5 Downstream Ports (80Gb/s)
• 5 x USB-C (10Gb/s)
• 5 x USB-A (10Gb/s)
• 1 x DisplayPort 2.1
• 1 x SD 4.0 (UHS-II)
• 1 x microSD 4.0 (UHS-II)
• 1 x 10 Gigabit Ethernet
• 1 x Front Combo Audio In/Out (3.5mm)
• 1 x Rear Audio Out (3.5mm)
• 1 x Rear Audio In (3.5mm)
• 1 x DC In (24V 13.75A)

Minimum System Requirements

• macOS 15 or above
• Windows 11 or above
• iPadOS
• Thunderbolt 5 Computer
• Thunderbolt 4 Computer
• Thunderbolt 3 Mac
• USB4 or USB4 v2 Computer
• Thunderbolt/USB4 iPad


Power Delivery

• Thunderbolt 5/USB4 Host Port: Up to 140W
• Each Downstream Thunderbolt 5/USB4 Port: 36W
• Front 36W USB-C Port: 36W
• Remaining USB-C Ports: 7.5W
• USB-A Ports: 7.5W


Size & Weight

• Height: 6.10” (155.0mm)
• Width: 1.85” (47.0mm)
• Length: 5.03” (127.9mm)
• Weight: 1.98 lbs (0.90kg)


In the Box

• 1 x CalDigit TS5 Plus
• 1 x Thunderbolt 5 Braided Cable (1.0m)
• 2 x Rubber Feet Strips
• 1 x Power Cord
• 1 x Power Supply (330W)
