StarTech.com PEXUSB312C3 1 Port PCIe 3.0 USB 3.2 Gen2 Card
2 Port StarTech.com USB PCIe Expansion Card, 10Gbps, ASMedia ASM3142 Controller, 2 x USB 3.2 Gen 2 Type-C, SATA Power
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
StarTech.com PEXUSB312C3 2-port 10Gbps USB C PCIe Card

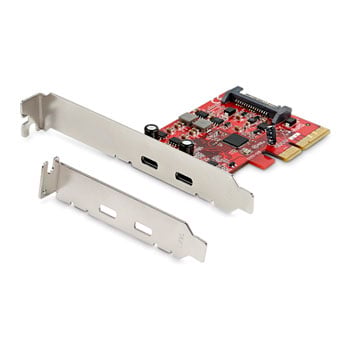

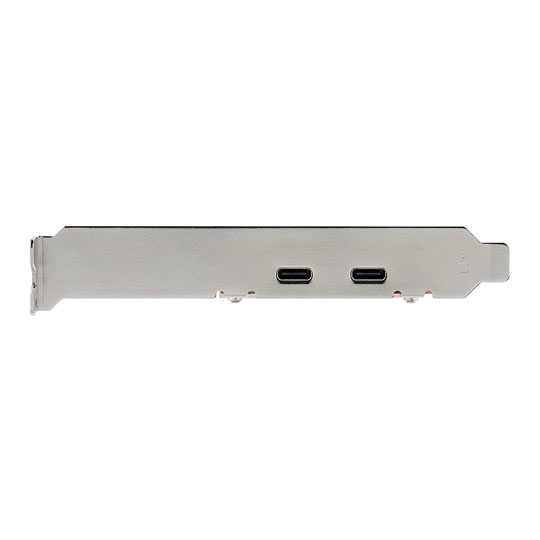

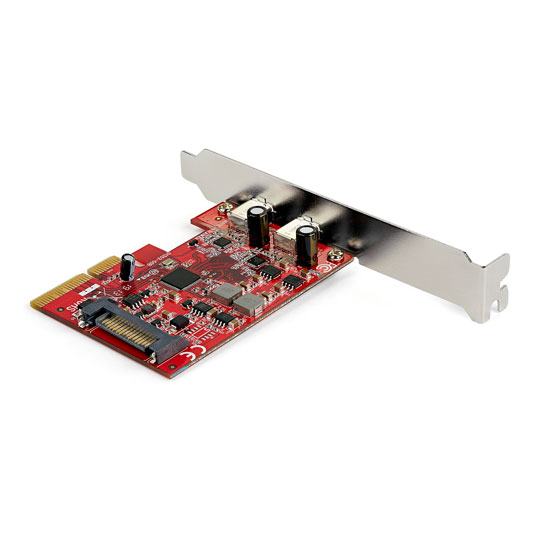

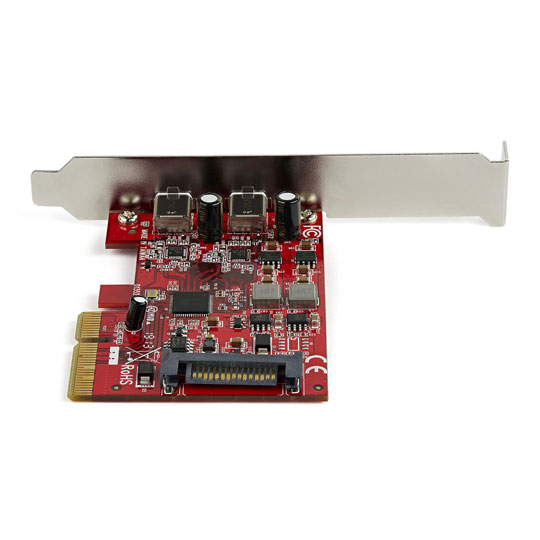

This PCIe USB 3.2 Gen 2 card installs into an available PCI-Express slot in your computer and enables you to upgrade your current system by adding two USB-C (10Gbps) ports. Previously known as USB 3.1 or 3.1 Gen 2, this USB 3.2 Gen 2 card adds two 10Gbps USB Type-C ports to your computer. Utilising an ASMedia ASM3142 chipset, this card harnesses the speed of USB 3.2 Gen 2. With higher data throughput support, this USB 3.2 Gen 2 PCIe expansion card is a necessity for external drives and many other USB 3.2 Gen 2 peripherals and includes an optional SATA power connector for high power devices. The card is backward compatible with USB 3.2 Gen 1 and USB 3.0 (5Gbps), as well as USB 2.0 (480mbps) devices. The card works with newer USB-C devices, but can easily support your existing USB-A peripherals using inexpensive USB Type C cables and adapters. The USB 3.2 card is compatible with Windows, Linux and macOS operating systems. The card includes both standard-profile and low-profile brackets to install in various form-factor PCs and servers.
PLEASE NOTE: USB-IF changed the naming conventions for each USB version in 2022. This means various older names adhere to the same specification. If you are unsure which version you need or require assistance understanding the specifications of this product, please refer to the USB-IF website or get in touch.
Features
• High performance: Add 2x USB-C SuperSpeed 10Gbps ports to your desktop PC with this USB 3.2 Gen 2x1 PCIe Card; Expansion card provides up to 5V 3A (15W) via the USB-C ports
• USB 3.2 GEN 2X1 speeds: PCI Express card features the ASMedia ASM3142 host controller using x4 lanes of PCIe 3.0; Capable of speeds up to 10Gbps enabling fast access to high-performance devices like NVMe drives and SSDs
• Maximized USB performance: 2-port USB-C PCIe Card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance; Installs in full/low-profile PCIe 3.0 x4 desktop / server slot (lower performance with PCI-e 2.0)
• Compatibility: Add-on card installs in full or low-profile (bracket included) PCIe 3.0 x4 slot (Backward compatible with PCIe 2.0); Windows/Linux/macOS with auto-install drivers Win 8 and up; Works with USB 3.2 Gen 2/3.0/2.0 devices
• Compatibility notice: This dual port USB-C 10Gbps PCIe card supports data transfer only; It does not support DisplayPort Alt Mode for video out
