Scan code: LN68384 Manufacturer code: SST-ECM20

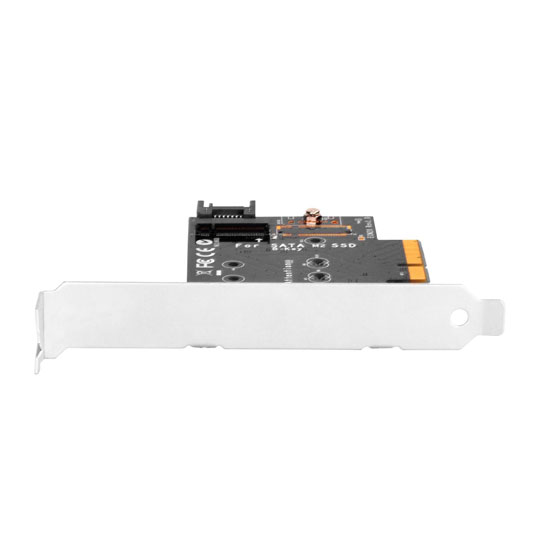

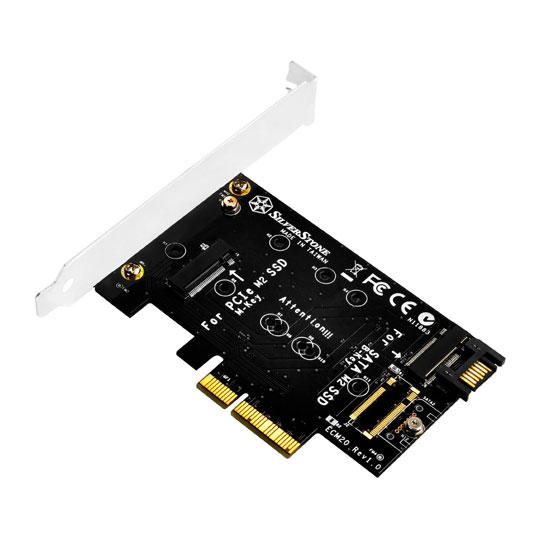

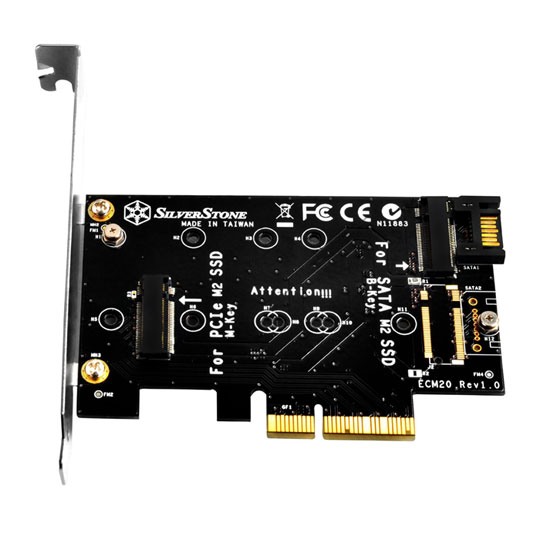

Silverstone SST-ECM20 PCIe Low Profile M.2 Expansion Card

2 Port Silverstone ECM20 M.2 Expansion Card, Low profile

Thumbnail 1 : Silverstone SST-ECM20 PCIe Low Profile M.2 Expansion Card Thumbnail 2 : Silverstone SST-ECM20 PCIe Low Profile M.2 Expansion Card Thumbnail 3 : Silverstone SST-ECM20 PCIe Low Profile M.2 Expansion Card Thumbnail 4 : Silverstone SST-ECM20 PCIe Low Profile M.2 Expansion Card
Scan code: LN68384 Manufacturer code: SST-ECM20
£15.98
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jul 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview SilverStone’s ECM20 is an adapter designed for users wanting to utilize or add speedy M.2 devices such as SSD onto their existing PC or motherboard. In addition to supporting one M.2 device (M key) to run via the super fast PCI-E interface at up to 32Gbps, a second M.2 slot (B key) is available for connecting to a SATA III port for added storage potential. For users looking to have the fastest data access speed on a desktop computer, the ECM20 is a must have.

• Converts one M.2 port (M key) into one PCI-E x4 interface.
• Converts a second M.2 port (B key) into SATA interface.
• Supports two M.2 SSD simultaneously.
• Includes optional low-profile expansion slot.
• No driver installation required.
*M.2 PCIe-NVMe mode SSD requires the use of Intel® 9 series (Z97 H97 Z170 X99) or higher version chipset motherboard with Windows 8 or higher version operating system.*.

SATA (B key)
Used for SATA SSDs, and interfaced through the AHCI driver and SATA 3.0 (6 Gbit/s) port exposed through the M.2 connector.

PCI Express using AHCI (M key)
Used for PCI Express SSDs and interfaced through the AHCI driver and provided PCI Express lanes, providing backward compatibility with widespread SATA support in operating systems at the cost of not delivering optimal performance by using AHCI for accessing PCI Express SSDs.

PCI Express using NVMe (M key)
Used for PCI Express SSDs and interfaced through the NVMe driver and provided PCI Express lanes, as a high-performance and scalable host controller interface designed and optimized especially for interfacing with PCI Express SSDs. NVMe has been designed from the ground up, capitalizing on the low latency and parallelism of PCI Express SSDs, and complementing the parallelism of contemporary CPUs, platforms and applications.

Features Interface PCI Express X4 / SATA 6Gbps
SSD Interface M.2(NGFF)
Module Key SATA-based B key
PCI-E 4X-based M key
Number of Drives 2
Support Type of M.2 SSD 2230, 2242, 2260 and 2280
Support Length of M.2 SSD 30mm, 42mm, 60mm, 80mm
Operating system support Microsoft Windows
Mac OS X
Linux
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
RTB Period:
12 months
