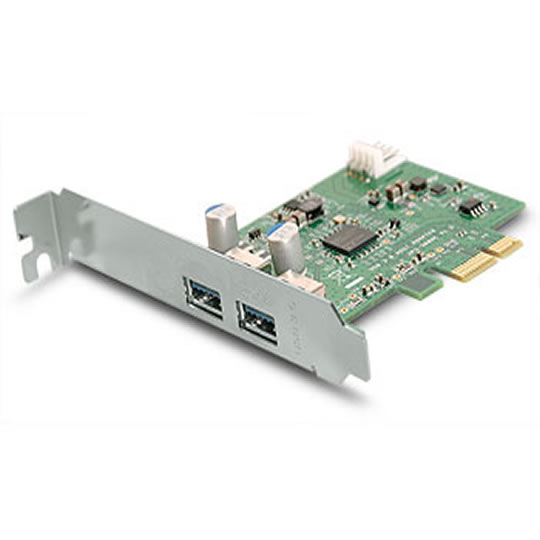

SuperSpeed USB3.0 2 Port (NEC) 5Gbps PCI-Express Card
Also Offering MAX Power to the Connector 900Ma with 4Pin power adaptor to take even more power from system!
SuperSpeed USB brings significant performance enhancements to the ubiquitous USB standard, while remaining compatible with the billions of USB enabled devices currently deployed in the market. SuperSpeed USB will deliver 10x the data transfer rate of Hi-Speed USB, as well as improved power efficiency.
•SuperSpeed USB has a 5 Gbps signaling rate offering 10x performance increase over Hi-Speed USB.
•SuperSpeed USB is a Sync-N-Go technology that minimizes user wait-time.
•SuperSpeed USB will provide Optimized Power Efficiency.No device polling and lower active and idle power requirements.
•SuperSpeed USB is backwards compatible with USB 2.0. Devices interoperate with USB 2.0 platforms. Hosts support USB 2.0 legacy devices.
• Supports Super-Speed data transfer rate up to 5.0Gbps.
• Provides USB 3.0 interface compatible with prior ubiquitous USB 2.0 standard
• More power at the connector, max. 900mA
• Built-in 4-pin power connector for receiving extra power supply from system
• Supports standard PCI Express slot
• Supports hot swapping and Plug-and-Play capability
• Compliant spec. to USB 3.0 Rev 1.0
• Compliant spec. to Intel xHCI Rev 0.96
• Compliant spec. to PCI Express 2.0 base spec.
• Compliant spec. to PCI Express Generation 2 spec.
Features • USB3.0 Host Controller: NEC uPD720200
• Max. Data Transfer Rate: 5.0Gbps
• System Interface: PCI Express 2.0 x 1
• External Port: 2 USB ports (Supports Super-Speed/ High-Speed/ Full-Speed/ Low-Speed) USB1, 1.1,2.0,3.0
• Power Input: 4-pin power connector
• Output Voltage Per Port: DC +5V
• Output Current Per Port: Max. 900mA
• Operating Temperature: 0°C~40 °C
• Certification: FCC Class B, CE
• System Support: Windows XP/Windows Vista/Windows 7 (32/64-bit)
• Dimensions (L*W*T): 80 x 68.5 x 1.6mm
|Interface||PCIe 2.0 (x1)|
|External Connectors||2 x USB 3.0|
