Scan code: LN25244 Manufacturer code: PE-107

Lycom TI chipset FireWire 800/400 PCIe Adaptor Card

2 Port Lycom PE-107 PCI-E FireWire 800 (1394b) and 1 Port Firewire 400 (1394a) Card

MORE INFO
MORE INFO

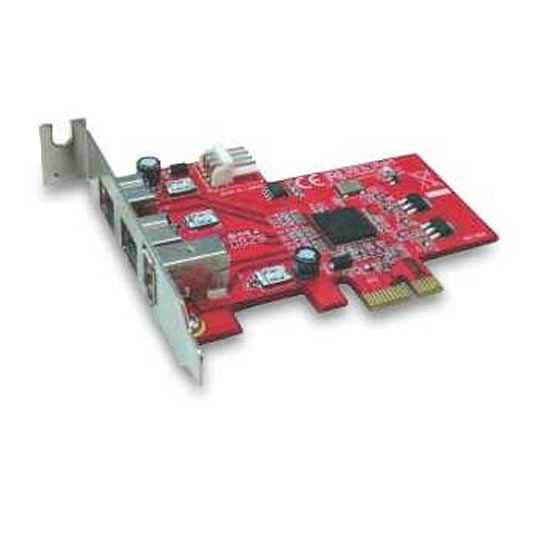

Thumbnail 1 : Lycom TI chipset FireWire 800/400 PCIe Adaptor Card
Lycom TI chipset FireWire 800/400 PCIe Adaptor Card : image 1
Scan code: LN25244 Manufacturer code: PE-107
3xs Approved
£35.99Item due on 31 March 2021
Pre Order
Due 31st Mar
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Lycom TI chipset FireWire 800/400 PCIe Adaptor Card

Add 2 Ports IEEE 1394b/FireWire 800 in addition to 1Port 1394a at Low Profile PCI-e card to Transmit and Receive Data at 800/ 400/ 200/ 100 Mbps

• Provides Two Fully Backward Compatible, Bilingual P1394b 9-Pin Ports at up to 800 Megabits per second
• One 1394a regular 6-Pin Port
• On Board Power Connector to supply up to 1.5A/12V per 1394 Port
• 1-lane 2.5Gbps PCI Express
• Low Profile PCI Form Factor
• Windows and Mac Built-in drivers

Features


PCI Express Features
• Compliant with PCI Express Specification, revision 1.1
• 1-lane 2.5Gbps PCI Express host interface
• Low Profile PCIe Form Factor
• Includes Low profile and Regular size PCIe two Brackets
• Fully RoHS compliant


FireWire features
• Two Bilingual P1394b 9-Pin Ports and one 1394a 6-Pin Port
• Fully supports Provisions of IEEE P1394b-2002
• Fully Supports Provisions of IEEE 1394a-2000 and 1394-1995 Standard
• Fully compliant with 1394 Open Host Controller Interface (OHCI) Spec 1.1 and Rev 1.2 Draft
• Supports data transfer rate up to 800 Mbps
• Two Bilingual 1394b 9-pin Ports at S800 or S400b speed
• One 1394a-2000 Fully Compliant 6-Pin Port at S400, S200, S100 speed
• On Board Molex mini 4Pin Power connector to have sufficient 1394 1.5A/12V bus power from PC power supply
• Supports Plug and Play
• Apple Mac OS X v10.2.4 or newer support Built-in 800Mbps driver
• Windows 98, ME Built-in driver support
• ubCoreTM free driver support 32bit / 64bit Windows 7, Vista, XP, 2003, 2008, 2000
• Chipset : TI

Specifications
Interface PCIe (x1)
Connectivity
  • 1 x Firewire (6pin)
  • 2 x Firewire (9pin)
Additional Information
Scan Code LN25244
Model Number PE-107
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
SCAN
Loading Please Wait

Please wait . . .

TekSpek Guides
Firewire
Firewire
Date Issued: 21st Oct 2008

You've probably read the USB Tekspek, and perhaps your intrigue, or product interest, has lead you to look up Firewire as well. The two are similar in some respects, particularly some of the products that use the two technologies. However, Firewire has its differences, which means it has both benefits and drawback when compared to USB. This Tekspek will look at Firewire and also look at it with respect to USB.

Read More

System Buses & Bandwidth
System Buses & Bandwidth
Date Issued: 21st Oct 2008

In computing terms, system buses are used to connect various components to the motherboard’s core logic and, often, to each other. Modern PCs run with a multitude of high-speed buses ranging from the interconnects between, say, the chipset and the CPU, graphics card, memory, and peripherals.

Read More

Updating Drivers
Updating Drivers
Date Issued: 25th Jun 2008

Updating drivers can sometimes be a bit of a gamble. Will the drivers come with an installer? Will you need to uninstall the old drivers first? Many drivers these days do come with an installer, which simplifies the process dramatically.

Read More

2 Port Lycom PE-107 PCI-E FireWire 800 (1394b) and 1 Port Firewire 400 (1394a) Card is rated 4.5 out of 5 by 4.
Rated 5 out of 5 by from The TI Chipset To The Rescue! I have a large collection of Firewire things. One of which is a 13 year old original MOTU Traveler (v1). This thing is 13 years old now and still going strong. The problem is its extremely picky about whch cards it likes. MOTU themselves only recommend cards with a TI chipset. The previous card I tried had a VIA chipset which resulted in nasty crackles and pops in all audio streams. I was initially dubious as I'd not come across Lycom before. Also the price is a little on the high side but this has arrived, been installed and tested. It works flawlessly. Much cheaper than having to replace an otherwise fine mixer. So if you're looking for cards that work with other sensitive older and gentler soundcards in the golden years, give this one a try.
Date published: 2018-02-16
Rated 5 out of 5 by from Best customer support Even though I had to return this item because it was not what i was looking for. That was no hustle. All items i alredy bought from this company is top quality. I will buy again , again and again. Many thanks.
Date published: 2016-10-14
Rated 4 out of 5 by from No issues but it's a little pricey. I've installed 9 of these so far and they're faultless. Works without any issues on Windows 7, no driver installation required and arrives with all brackets and power cables you'd ever need. £40 For a Firewire card is a little pricey, I believe they've increased in price recently.
Date published: 2016-06-08
Rated 4 out of 5 by from Plugged it in, and it worked Not much too this really, it was easy to fit as its quite small and I just plugged it in and installed the drivers. thats about all I can say. I'm using it with sonar-01X on my machine. Experience level. I'm a systems admin. (5 years) My Machine: Win 7 64x, with RME fireface 400. as an additional firewire connectivity card, this seems to be a great choice. Great service from scan, thanks. (I'm never using ebuyer ever again)
Date published: 2014-03-17
