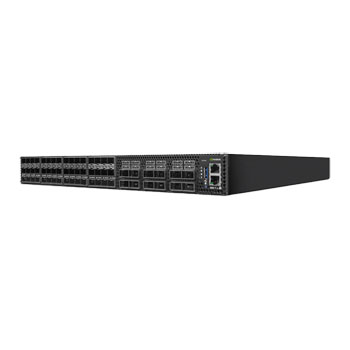

NVIDIA Networking MSN3420-CB2FC 25GbE/100GbE 1U Spectrum-2 Open Ethernet Switch

1U NVIDIA MSN3420-CB2FC Spectrum-2 Based 25GbE/100GbE Open Ethernet Switch, CumulusOS, 48xSFP28/12xQSFP28, 2x PSUs

Scan code: LN147993 Manufacturer code: 920-9N213-00F7-0C0
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Product Overview

SN3420 Series Switches

As data-center switching architectures increasingly adopt 100GbE, the SN3420 offers a high-performance, cost-effective way to evolve host connectivity from 10G to 25G. Equipped with 48 ports of 10/25GbE and 12 ports of up to 100GbE in a compact 1U form factor. The SN3420 is an ideal Top-of-Rack (ToR) network switch, delivering a total throughput of up to 4.8Tb/s with a processing capacity of 3.58Bpps. The SN3420 enables the seamless use of QSFP28 connections for leaf-spine topology and future-proofing the data center.


Visibility

• NVIDIA What Just Happened (WJH) telemetry dramatically reduces mean time to issue resolution by providing answers to: When, What, Who, Where and Why
• Hardware-accelerated histograms track and summarize queue depths at submicrosecond granularity
• Inband Network Telemetry (INT)-ready hardware
• Streaming Telemetry
• 512K on-chip flow counters


Performance

• Fully shared packet buffer provides a fair, predictable and high bandwidth data path
• Consistent and low cut-through latency
• Robust RoCE transport to power NVMe over fabric and Machine • Learning applications that leverage NVIDIA GPUDirect
• Best-in-class VXLAN scale 10X more tunnels and tunnel endpoints than others
• 512K shared forwarding entries flexibly shared across ACL, LPM routes, host routes, MAC, ECMP and tunnel applications


Agility

• Comprehensive Layer-2, Layer-3 and RoCE
• Advanced network virtualization with high performance single pass VXLAN routing and IPv6 segment routing
• Cloud Scale NAT 100K+ sessions
• Programmable pipeline that can programmatically parse, process and edit packets
• Deep Packet Inspection 512B deep


Features

Technology: Ethernet
Operating System: Cumulus Linux
Max Speed: 100GbE
Connector Type: QSFP28 and SFP28
Ports: 48x25GbE and 12x100GbE
Airflow: P2C

Specifications
Edition
Form Factor 1U
Total Network Ports
  • 12 x QSFP28
  • 48 x SFP28 10/25GbE
PoE Support Type
No. of Ports Providing PoE
Other Non-Network Ports
  • 1 x Management RJ-45
  • 1 x Serial Console (RJ45)
  • 1 x USB
Switching Capacity
Non-Blocking Throughput 4.8Tb/s
Forwarding Rate
MAC Address Table Size
Network Capacity
Built-in Flash Memory 32GB
RAM Memory 8GB
Network Protocols
Acoustic Noise
Max. Power Consumption 202 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply
Material
Includes Rail Kit
Dimensions (WxHxD) 44 x 438 x 464.6 mm
Weight 8.5 kg
