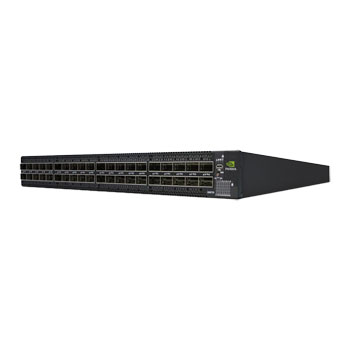

NVIDIA MQM8790-HS2R Quantum HDR InfiniBand Externally Managed Switch
Faster servers, combined with high-performance storage and applications that use increasingly complex computations are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors, High-Performance Computing (HPC) environments and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with next generation of HDR InfiniBand, high-speed, smart switches.
Built with Quantum InfiniBand switch device, the QM8790 provides up to forty 200Gb/s ports, with full bi-directional bandwidth per port. These stand-alone switches are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters.
QM8790 is the world's smartest network switch, designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks using embedded hardware, resulting in an order of magnitude application performance improvements.
Features
• Industry-leading switch platform in performance, power, and density
• Designed for energy and cost savings
• Collective communication acceleration
• Maximizes performance by removing fabric congestions
• Backward compatible to previous speeds
• Quick and easy setup and management
Performance
• 40 x HDR 200Gb/s ports in a 1U switch
• 80 x HDR100 100Gb/s ports (using splitter cables)
• 16Tb/s aggregate switch throughput
• Sub-130ns switch latency
Optimised design
• 1+1 redundant & hot-swappable power
• N+1 redundant & hot-swappable fans
• 80 gold+ and energy star certified power supplies
• x86 ComEx Broadwell CPU
Advanced design
• Adaptive routing
• Congestion control
• Collective offloads (SHARP technology)
• VL mapping (VL2VL)
Technology: InfiniBand
Max Speed: HDR
Connector Type: QSFP56
Ports: 40
Airflow: C2P
