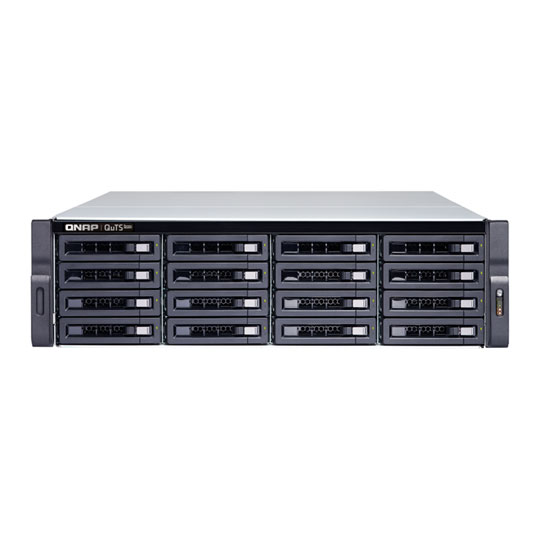

QNAP TS-h1683XU-RP 16 Bay 3U Rackmount NAS Enclosure

QNAP TS-h1683XU-RP

The QuTS hero NAS TS-h1683XU-RP is powered by an Intel® Xeon® E processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory to deliver server-grade performance with dependable reliability. Running the ZFS-based QuTS hero operating system, the TS-h1683XU-RP supports near-limitless snapshots, real-time SnapSync, block-level inline data deduplication, and inline data compression. The TS-h1683XU-RP helps your business achieve reliable service-level agreement performance, whether as a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.

Intel® Xeon® E Processors Deliver Extraordinary Performance

Powered by an Intel® Xeon® E-2236 6 cores/12 threads 3.4 GHz processor (Burst up to 4.8 GHz), the TS-h1683XU-RP has enormous processing power to drive virtual machine performance. Combined with 128 GB DDR4 ECC memory and a redundant power supply, the TS-h1683XU-RP delivers cost-effective server-grade performance for complex multitasking and dependable reliability in enterprise IT environments.

Server-Grade Hardware: Sturdy And Expandable

The TS-h1683XU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet business application diversification requirements.

10gbe Connectivity For High-Speed Data Transfer

The TS-h1683XU-RP provides four Gigabit RJ45 ports, and also supports 10GbE connectivity with a pre-installed dual-port 10GBASE-T network expansion card and a dual-port 10GbE SFP+ SmartNIC to satisfy bandwidth-demanding applications (including virtualization, large file sharing, and high-speed backup and recovery). QNAP also offers numerous options of managed and unmanaged 10GbE switches with 10GbE SFP+/RJ45 and Multi-Gigabit NBASE-T™ support, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.

Abundant I/O Capability With Pcie Expansion

The TS-h1683XU-RP features 4 PCIe slots that enable using numerous expansion cards for greater application potential.

Zfs-Based Quts Hero Operating System Enhances Nas Performance And Data Integrity

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Data Integrity Is Key

QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.

Data Reduction Improves Storage Efficiency And Performance

Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.

Multi-Level Cache Technology

Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.

Raid Z Enables Robust Data Protection

Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.

QSAL (QNAP SSD Antiwear Leveling) Enhances Data Protection

RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.

App Center Ecosystem Extends Nas Functionality

Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TS-h1683XU-RP.

Tiered Storage Configuration For A QuTS Hero Nas

Basic requirements for setup are similar to QTS. We recommend you to follow these steps to acquire optimal storage efficiency and performance for QuTS hero.

Inline Data Deduplication, Compression, And Compaction Drives Big Data Storage Efficiency

QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h1683XU-RP optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.

Real-Time Snapsync Ensures Minimal Rpo With Real-Time Disaster Recovery

Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.

Snapshots Multiply Backup Protection

Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.

HBS Simplifies 3-2-1 Backup Plans

HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h1683XU-RP to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.

All-In-One Virtual Machine And Container Hosting Solution

You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station

Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container Station

Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.

License-Free VMware® And Hyper-V Backup Appliance

With Hyper Data Protector, the TS-h1683XU-RP becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 service operation.

Move Business Data To The Cloud And Enjoy Low Latency Access To Cloud-Based Data

The TS-h1683XU-RP perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the TS-h1683XU-RP, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible and secure hybrid cloud applications.

Hybridmount File-Based Cloud Gateway

Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud Block-Based Cloud Gateway

VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.

High-Performance, Reliable Storage Solution For Virtualization

Supports block-based iSCSI LUN as a high-performance, reliable, and affordable storage solution for VMware®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments.

Build An Affordable Fibre Channel San Environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h1683XU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

Extend Hardware Warranty Up To 5 Years

The TS-h1683XU-RP is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

Switch Operating Systems To Upgrade Current Storage

The TS-h1683XU-RP can also switch to using QTS - QNAP’s standard NAS operating system. This allows you to migrate drives from your current QTS-based NAS to the more powerful TS-h1683XU-RP to upgrade your storage infrastructure.

Intel® Xeon® E Processor: High-performance Intel® Xeon® E-2236 6 cores/12 threads 3.4 GHz processor (Burst up to 4.8 GHz).
Up To 128 GB DDR4 ECC Memory: Supports four DDR4 dual-channel Long-DIMM memory modules for up to 128 GB RAM.
4x Gigabit Ethernet Ports: Ideal for service binding, port trunking and MPIO configuration.
USB 3.2 Gen 2 Ports:Includes two USB 3.2 Gen 2 10Gbps Type-C ports and four USB 3.2 Gen 2 10Gbps Type-A ports to boost data transfer speeds. Supports QNAP’s TL and TR series USB JBOD, external hard drives, and UPS.
2x 10GbE SFP+ Ports: Pre-installed with a dual-port 10GbE SFP+ SmartNIC that uses a Broadcom NetXtreme®-E network controller supporting RDMA over Converged Ethernet (RoCE and RoCEv2), and delivers 10GbE bandwidth to boost virtualization, large file sharing, and data-intensive applications.
4x PCIe Expansion Slots: Supports installing 10GbE/25GbE/40GbE network expansion cards, QM2 cards, and Fibre Channel cards for greater application potential. (Two slots come with pre-installed 10GbE adapters).
2x 10GBASE-T Ports: The pre-installed dual-port 10GBASE-T network expansion card supports 10G/5G/2.5G/1G network speeds.
Redundant Power Supply Unit: Redundant 500W power supplies ensure continuous system uptime.
Smart Cooling: Monitors system temperatures and automatically adjusts fan speeds.
