Noctua REDUX-1200 PWM Case Fan

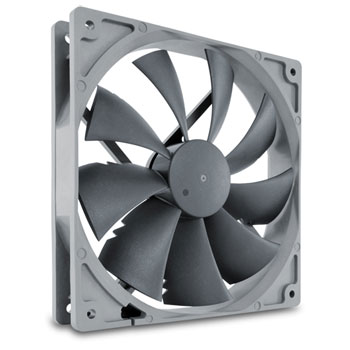

140mm Noctua NF-P14S-REDUX-1200-PWM Quiet Case Fan

Noctua
Scan code: LN58433 Manufacturer code: NF-P14S-REDUX-1200-PWM Request call
£13.99
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Now available in a square frame version called NF-P14s (s for square frame) that lends itself to use in case and radiator cooling, the classic NF-P14 is a long-standing favourite among enthusiast users around the world and helped to found Noctua's reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P14 premium fan. Its industry grade SSO bearing, over 150,000 hours MTBF rating and full six year manufacturer's warranty make the NF-P14 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The 1200rpm PWM version features Noctua's proprietary NE-FD1 for automatic speed control, which allows to strike a perfect balance between high cooling capacity and low noise operation in each given situation. Features Proven NF-P14 design
Tens of thousands of quiet cooling enthusiasts around the globe swear by Noctua's classic NF-P14. Thanks to its impressive quietness, excellent performance and impeccable quality, the NF-P14 has become an established reference for quiet 140mm fans.

Streamlined redux edition
The redux product line reissues some of Noctua's most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctua's reputation as a first-tier supplier of premium grade low noise cooling equipment.

Square 140mm frame
The square 140mm frame of the NF-P14s features standard 140mm mounting holes (124.5mm spacing), which makes it a premium grade replacement for common 140mm case fans and perfect for use on 140mm water cooling radiators, where its square shape will ensure full coverage and best pressure performance.

Pressure-optimised Nine-Blade Design
Specifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P14's nine-blade impeller provides outstanding pressure and airflow performance.

Vortex-Control Notches
Noctua's signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan's noise emission over a wider range of frequencies. This measure makes the fan sound more pleasant to the human ear.

Custom designed PWM IC with SCD
Supporting fully automatic speed control via PWM, the fan uses Noctua's custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.

SSO-Bearing
Combining the proven concept of hydrodynamic bearings with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua's time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.

Optional accessories
Users can choose from Noctua's wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.

Six year manufacturer's warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTBF rating of more than 150,000 hours and come with a full six year manufacturer's warranty.
Specifications
Specifications
Edition
Fan Diameter 140mm
Fan Depth 25 mm
Fan Speed 1200 rpm
Fan Blades
PWM No
Fan Specialization
Airflow 64.9 CFM
Air Pressure
Sound Level 19.6 dB
Motor Type
Bearing Type
Manual Speed Controller No
Material Plastic
Fan Colour Black
LED No
LED Colour
MTBF 150000 Hours
Fan Fixing
Cable length
Connectors
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Reviews
Rated 4.7 out of 5 by 3 reviewers.
Rated 5 out of 5 by very quiet In my system, these are tuned to run at less than the maximum speed most of the time and are so quiet, the noise isn't noticeable. 30 December 2015
Rated 4 out of 5 by Used as a case vent fan Pretty good at shifting massive air through the top of my case. just purchased another to go along side it at the top. at full revs, it can be a bit noisy, BUT, i do think that's more to do with the vent holes in my case rather than the fans themselves! otherwise i wouldn't be getting another one! 29 September 2014
Rated 5 out of 5 by Product is Exactly what Noctua is known for Excellent fans no problems at all Bought to replace my stock case fans and wanted to go with silver Noctua instead of brown again. 09 August 2014
