Scan code: LN104594 Manufacturer code: NF-A15-HS-PWM-CH-BK-S

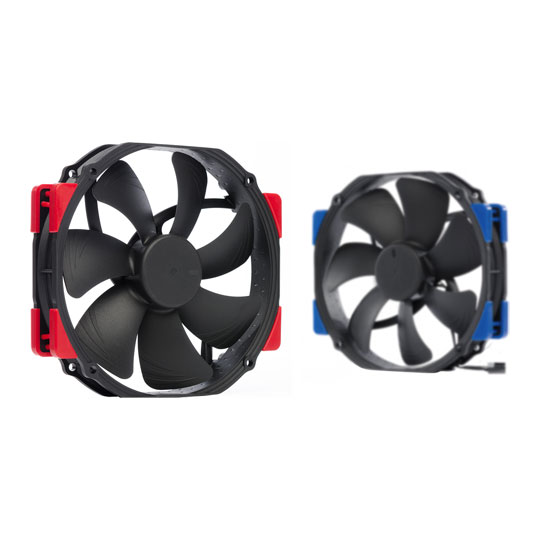

Noctua NF-A15 HS-PWM 140mm CHROMAX Round Frame Fan with Swappable Anti-Vibration Pads

140mm Noctua NF-A15 HS-PWM, chromax.black.swap, 7 Blade, SSO2 Bearing, 300-1500RPM, 82.5CFM Airflow, 24.6dB, 4-pin PWM

Thumbnail 1 : Noctua NF-A15 HS-PWM 140mm CHROMAX Round Frame Fan with Swappable Anti-Vibration Pads Thumbnail 2 : Noctua NF-A15 HS-PWM 140mm CHROMAX Round Frame Fan with Swappable Anti-Vibration Pads Thumbnail 3 : Noctua NF-A15 HS-PWM 140mm CHROMAX Round Frame Fan with Swappable Anti-Vibration Pads Thumbnail 4 : Noctua NF-A15 HS-PWM 140mm CHROMAX Round Frame Fan with Swappable Anti-Vibration Pads
Scan code: LN104594 Manufacturer code: NF-A15-HS-PWM-CH-BK-S
£23.99
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Delivery Options
  • By DPD On 21st Sep to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Round Frame Premium Fan with Swappable Pads

Having received more than 100 awards and recommendations from international hardware websites and magazines, the NF-A15 is one of Noctua’s most renowned and popular 140mm fans. Its 150mm wide round frame with 120mm standard mounting holes (105mm hole spacing) makes it ideal for use on CPU coolers such as the popular NH-D15, NH-D15S or NH-U14S. The chromax.black.swap edition combines the NF-A15’s signature quiet cooling performance with an attractive all-black design and a bundle of swappable red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables and anti-vibration mounts are available separately. Topped off with Noctua’s trusted premium grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-A15 HS-PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.


Award-winning NF-A15 Design

Having received more than 100 awards and recommendations from the international press, Noctua's NF-A15 has become a proven premium choice for 140mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.


Chromax.Black.Swap Edition

Maximising colour choices, Noctua’s chromax.black.swap edition fans can be colour-customised using the included swappable anti-vibration pads as well as optional anti-vibration mounts and cables. This makes them ideal for enthusiasts looking for true premium-grade fans that can be colour-coordinated with popular build themes such as all black, black & white or black & red.

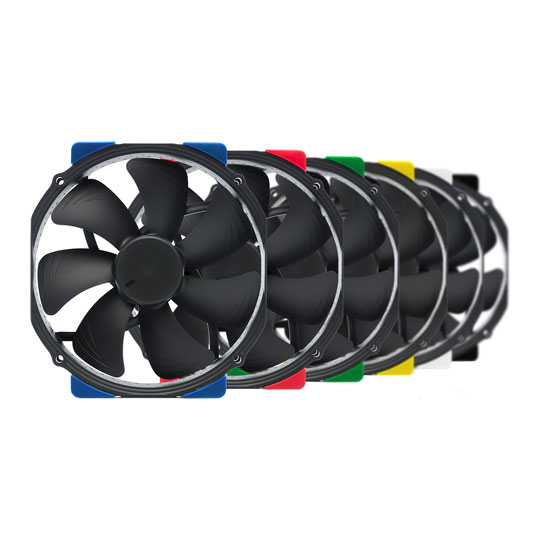

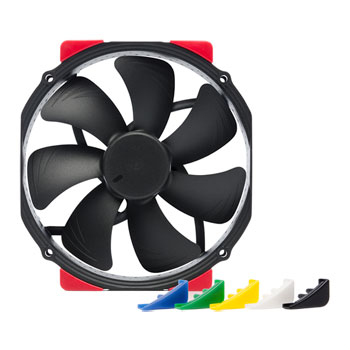

Swappable Anti-Vibration Pads in 6 Colours

The NF-A15 HS-PWM chromax.black.swap comes with 8 black, white, red, blue, green and yellow anti-vibration pads respectively, which allows the fan to be fully colour-customised in order to coordinate it with other components or popular build schemes.


Optional Coloured Cables

Noctua’s chromax line fans use a modular cabling system and come pre-fitted with a fully sleeved black NA-EC1 30cm cable. For refined colour coordination, white, red, blue, green and yellow 30cm NA-EC1 cables plus corresponding NA-YC1 y-cables are available separately.


Optional Coloured Anti-Vibration Mounts

To complement the coloured anti-vibration pads included with the fans, users can purchase chromax line NA-SAV2 anti-vibration mounts that enable the convenient, quick and vibration-free installation of fans in standard mounting holes for case fans.


Round 140mm Frame with 150mm Width

The NF-A15 is tailor-made for use on today's high-end CPU coolers: While its 150mm width matches those of most high-end heatsinks, its 140mm height doesn't make it extend on top and thus ensures best case compatibility. The NF-A15's standard 120mm mounting holes (105mm spacing) also make it an ideal performance upgrade for 120mm case or CPU fans.


Flow Acceleration Channels

The NF-A15 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.


AAO Frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.


Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.


Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.


SSO2 Bearing

The chromax line fans feature the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.


Metal Bearing Shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the chromax edition fans sport a CNC milled bearing shell made entirely from brass.


Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the chromax edition fans use Noctua’s custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.


Stops at 0% PWM

When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.


6-Year Manufacturer’s Warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the chromax edition models feature an MTBF of more than 150,000 hours rating and come with a full 6-year manufacturer's warranty.

Features
• Ultra Low Noise edition.
• Noctua’s AAO (Advanced Acoustic Optimisation).
• Integrated Anti-Vibration Pads.
• Flow Acceleration Channels.
• Improved SS02 bearings.
• Six year warranty.
Specifications
Pack Information
Edition NF-A15 HS-PWM CHROMA
Pack Type Single (1) Fan Standalone Pack

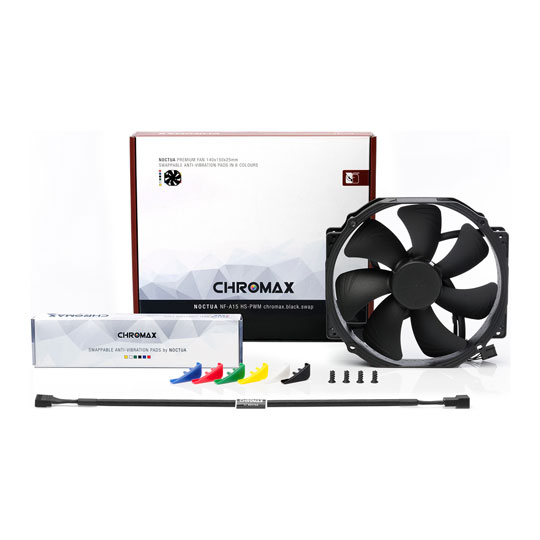

Includes
  • 1 x 140mm Fan/s
  • 4 x Fan Mounting Screws
  • 4 x NA-AVP3 chromax Black Anti-Vibration Pads
  • 4 x NA-AVP3 chromax Blue Anti-Vibration Pads
  • 4 x NA-AVP3 chromax Green Anti-Vibration Pads
  • 4 x NA-AVP3 chromax Red Anti-Vibration Pads
  • 4 x NA-AVP3 chromax White Anti-Vibration Pads
  • 4 x NA-AVP3 chromax Yellow Anti-Vibration Pads
Individual Fan Specifications
Fan Diameter 140mm
Fan Depth 25 mm
Fan Speed 300 - 1500 rpm
Fan Blades 7
PWM Yes
Fan Specialization Inaudible Airflow
Airflow 82.5 CFM
Air Pressure 2.08 mm H²O
Sound Level (dBA) 24.6 dBA
Sound Level (Sone)
Motor Type
Bearing Type SSO2
Manual Speed Controller No
Material Plastic / Rubber
Fan Colour Black
LED No
LED Colour
MTBF 150000 Hours
Fan Fixing Screw Fixing
Cable length 10 + 300 mm
Connectors 1 x 4-pin
Additional Information
Scan Code LN104594
Model Number NF-A15-HS-PWM-CH-BK-S
GTIN 9010018100433
