Arctic P14 Static Pressure 140mm PWM PST Fan White/Transparent
End Of Life
Arctic P14 Static Pressure 140mm PWM PST Fan White/Transparent
Scan code: LN113392 Manufacturer code: ACFAN00221A
End Of Life

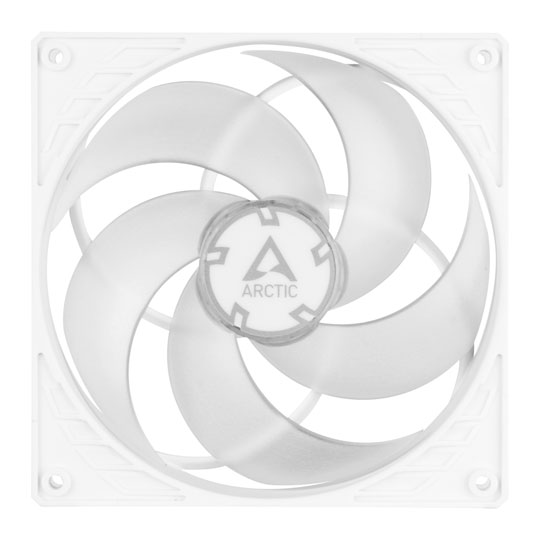

  • Thumbnail 1 : Arctic P14 Static Pressure 140mm PWM PST Fan White/Transparent

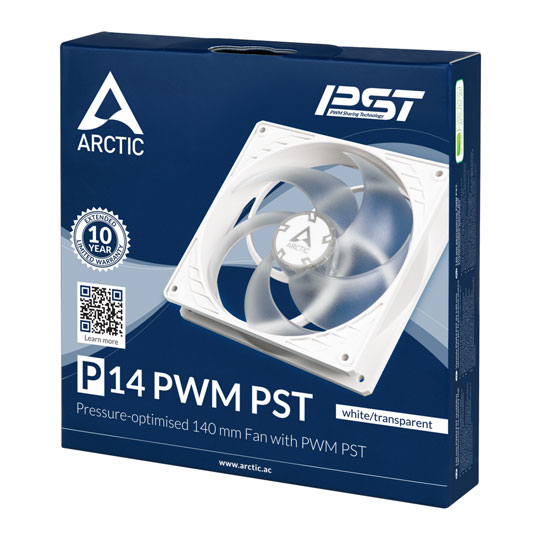

  • Thumbnail 2 : Arctic P14 Static Pressure 140mm PWM PST Fan White/Transparent

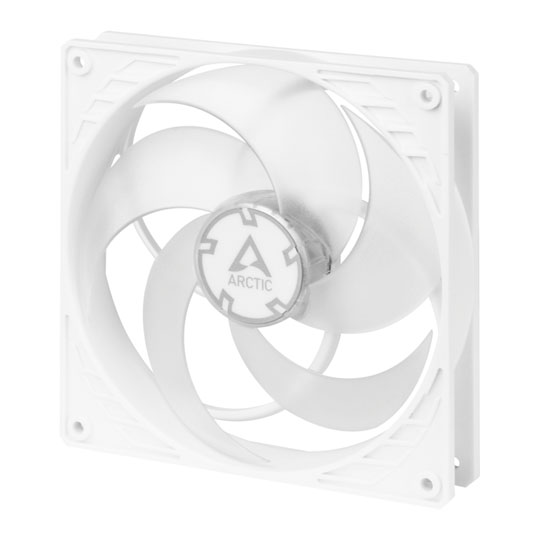

  • Thumbnail 3 : Arctic P14 Static Pressure 140mm PWM PST Fan White/Transparent

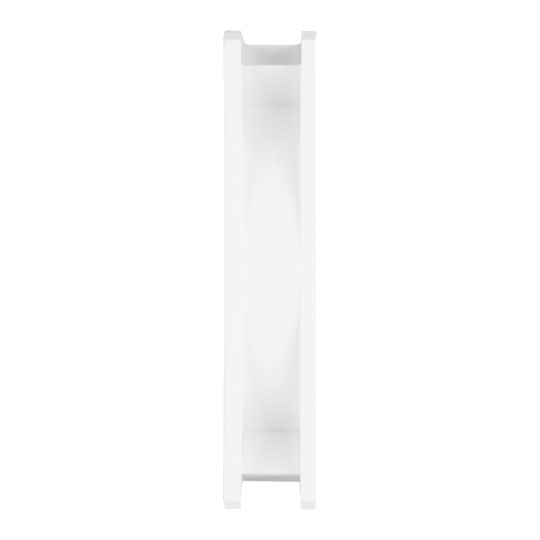

  • Thumbnail 4 : Arctic P14 Static Pressure 140mm PWM PST Fan White/Transparent
End Of Life

Arctic P14 Static Pressure 140mm PWM PST Fan White/Transparent

140mm Arctic P14 PWM PST, 5 Blade, Static Pressure Fan, 1700rpm, 72.8CFM, Fluid Dynamic Bearing, White/Transparent,4-pin

Scan code: LN113392 Manufacturer code: ACFAN00221A
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview

Optimised for Static Pressure

During the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.


More Efficient Technology

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.


Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.


Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 yearss


200 to 1700 RPM Regulated via PWM PST

With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.


High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.


Two Way Installation

Push warm air out of the case, Pull cool air into your case


Features

• Optimised for static pressure
• Ideal choice on heatsinks, radiators and (partly-) covered case vents
• PWM Sharing Technology (PST) regulates fan speed synchronously
• Static Pressure: 2.4 mm H2O
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 01204 474747.

Buying Guide
Need help? Read our Air Cooling Buying Guide
