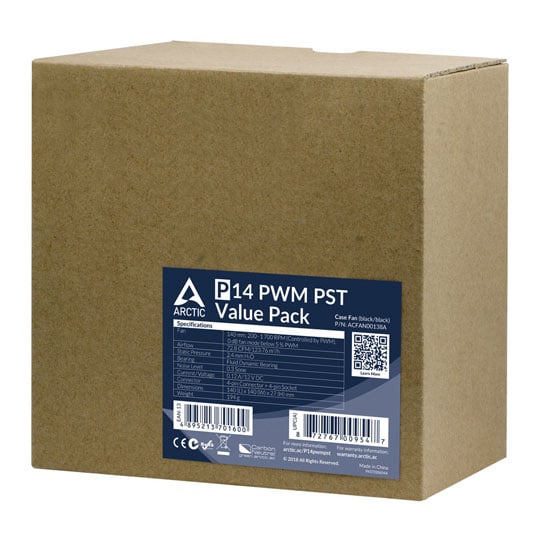

Arctic P14 Static Pressure 140mm PWM PST Fans (5 Pack)
140mm Arctic P14 PWM PST, 5 Blade, Static Pressure Fan, 1700rpm, 72.8CFM, Fluid Dynamic Bearing, Black, Pack of 5pcs
By DPD On 24th Jan
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

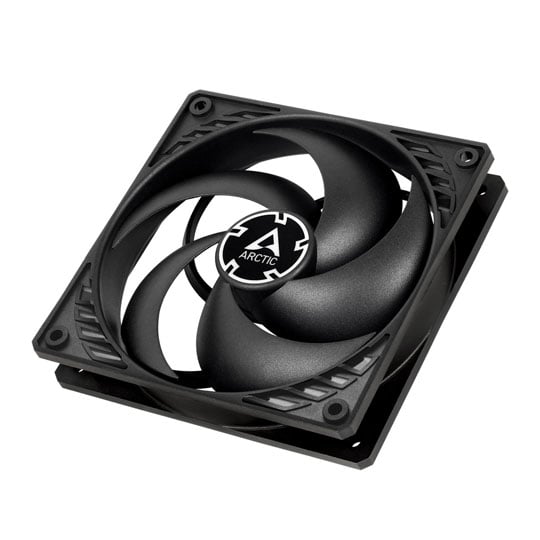

During the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Consequently, we have extended the warranty to 10 years.
200 to 1700 RPM Regulated via PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
0 dB Mode
The P14 PWM PST is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Two Way Installation
Push warm air out of the case, Pull cool air into your case Features • Optimised for static pressure
• Ideal choice on heatsinks, radiators and (partly-) covered case vents
• PWM Sharing Technology (PST) regulates fan speed synchronously
• 0 dB mode: silent passive mode when PWM signal is below 5 %
• Static Pressure: 2.4 mm H2O
|Edition||P14 PWM PST|
|Includes||5 x 140mm Fan/s|
|Individual Fan Specifications|
|Fan Depth||27 mm|
|Fan Speed||1700 rpm|
|Fan Specialization||Static Pressure|
|Air Pressure||2.4 mm H²O|
|Sound Level (dBA)|
|Sound Level (Sone)||0.3 @1700 rpm Sone|
|Bearing Type||Fluid Dynamic Bearing|
|Manual Speed Controller||No|
|Fan Fixing||Screw Fixing|
|Connectors||1 x 4-pin|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 120 months
- Return to base
- DOA Period:
- 28 days
- RTB Period:
- 12 months
- ARCTIC GmbH
