Noctua NF-A12x25 G2 PWM Sx2 PP 120mm Next Generation Push Pull Premium Quiet Fans
120mm Noctua NF-A12x25 G2 PWM Sx2 PP Fans, 9 Blade, Quiet Airflow Fans, 1800rpm, SSO2 Bearing, Anti-Vibration, 4-pin PWM
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Frequently Bought Together
Next Generation Performance

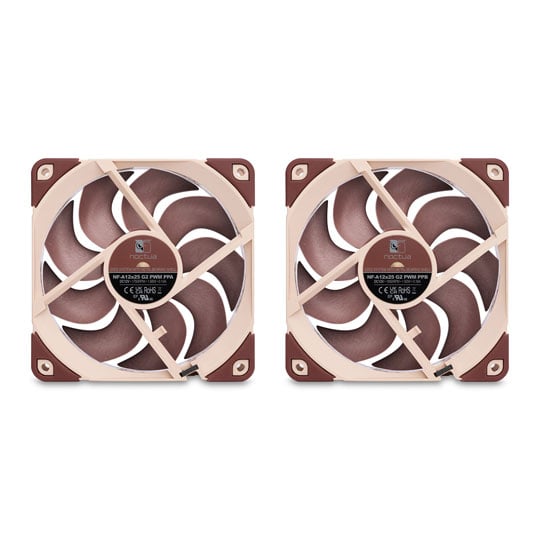

The NF-A12x25 G2 PWM Sx2-PP is a set of two NF-A12x25 G2 PWM 120mm fans that are offset in speed, which can be beneficial in push-pull operation as well as in situations where two or more fans are operating side by side, such as in case cooling applications or on 240 and 360mm water cooling radiators. When two fans are running at almost the same, constant speed in a push-pull configuration or, albeit to a lesser extent, side by side, their acoustic interaction can lead to undesirable harmonic phenomena such as intermittent vibrations or periodic humming due to interference, which can be heard as beat frequencies.
The two NF-A12x25 G2 PWM fans contained in the Sx2-PP set are slightly offset in speed (+/- ~50 RPM) in order to avoid such phenomena. This fine-tuning is made possible by the fan’s novel etaPERF motor and its NE-FD6 driver IC that achieves extremely precise speed control and, thanks to its SupraTorque feature, can leverage extra torque headroom to keep the exact desired speed even when working against significant flow resistance such as on water cooling radiators and heatsinks. With one fan running ~50 RPM slower (PPA) and one ~50 RPM faster (PPB), the overall cooling performance can be kept the same while efficiently preventing intermittent vibrations or periodic humming.
Since the perception of beat frequencies can vary depending on psychoacoustic preferences, users can easily further optimise acoustics by slowing the PPA fan down a little more through PWM control or the supplied Low-Noise-Adaptor, which will result in an even smoother sound signature due to the increased offset. If more than two fans are running side by side, customers can either combine multiple Sx2-PP sets or add a single NF-A12x25 G2 PWM fan and reduce its speed to the level of the PPA model (~1750 RPM) using PWM control in order to make sure that neighbouring fans are never running at the same speed.
Features
• Next generation performance with low noise from 18.1 dB(A)
• Manufactured from Sterrox liquid-crystal polymer compound
• Highly optimised P/Q curve for all applications
• Improved SS02 bearings and Integrated anti-vibration pads
• Max performance; 1800 RPM, 22.5 dB(A), 63.1 CFM
