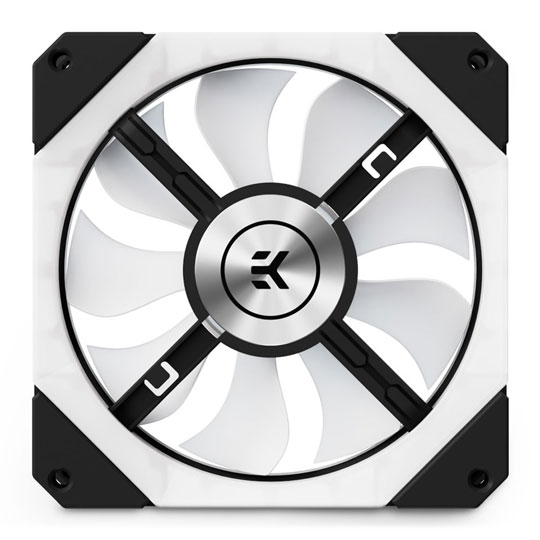

EK-Quantum Impulse 120 D-RGB 120mm PWM Fan

120mm EK-Quantum Impulse 120 D-RGB, 9 Blade, PWM, MagLev Bearing, Single Fan Standalone Pack, 4-Pin

Thumbnail 1 : EK-Quantum Impulse 120 D-RGB 120mm PWM Fan Thumbnail 2 : EK-Quantum Impulse 120 D-RGB 120mm PWM Fan Thumbnail 3 : EK-Quantum Impulse 120 D-RGB 120mm PWM Fan
Scan code: LN140970 Manufacturer code: 3831109854198
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
£21.95
Get it Tomorrow, 21 AprIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Apr to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

Impulse 120 D-RGB Fan

EK-Quantum Impulse 120 D-RGB is a silence-oriented 120mm computer cooling fan designed and built primarily with the lushest RGB LED illumination in mind. They are not a replacement for other EK fans that maintain a focus on high radiator performance but more of an aesthetic-focused offering that provides silent operation and balanced performance.


MagLev Fans

EK-Quantum Impulse fans have the VAPO™ bearing and Magnetic Levitation motor.


Addressable RGB LED MagLev Fans

EK-Quantum Impulse are 120mm PC radiator and case fans optimised for rich and lush D-RGB effects while maintaining very silent operation across their entire operational range. There is one LED-lit zone around the frame on both sides of the fan, so no matter which fan orientation you require, you'll get the rich illumination of the addressable RGB diffused through a milky white cover. The rotor is also illuminated by its own D-RGB strip for stylish aesthetics while spinning.
These fans use VAPO bearing, designed to virtually eliminate wobbling, so it stays incredibly stable in all applications. VAPO bearing adds a magnetic effect (magnetic levitation) to the bearing to reduce noise and increase shaft stability. Unlike the traditional ball-bearing fans that get noisier with time, VAPO bearings are dust-resistant and don't dry out.
As with FPT fans, Impulse fans also allow daisy-chaining, ultimately reducing cable clutter and easing cable routing through the EK-OmniLink, an 8-pin Micro-Fit connector ecosystem. All the signal and power wiring for the PWM and D-RGB runs on a single cable and connector, which then utilises another single cable to connect to the source. Most importantly, the EK-OmniLink ecosystem doesn't require any special controllers since the connection ends in the standard motherboard connectors - a 4-pin PWM for the fan power and a 3-pin 5V D-RGB for the connectors.


Rubber Dampers on the Corners

Thick rubber corners can be found on both sides of the fan to reduce vibration transfer to the rest of the PC. The fan itself is 26mm thick, with rubber corners protruding 1.5mm on each side for a total of 29mm in depth, bearing in mind that these rubber corners will squish down as you tighten the screws.


EK-OmniLink

EK-OmniLink – allows daisy chaining of multiple fans, thus reducing cable clutter and greatly easing cable management. The Omni-Link ecosystem of interconnects will be greatly expanded in the near future, allowing additional benefits to users. It uses Micro-Fit 8-pin connectors between products, but standard 4-pin for PWM and 3-pin for 5V addressable RGB at the end of the daisy chain.
The EK-OmniLink design resolves the cable clutter issues of unifying the connection of multiple fans onto a single PWM and D-RGB header while still maintaining full flexibility if the user wants to remove a single fan from the chain. Other similar solutions on the market use interlocking mechanisms, which require the removal of the entire fan link if the user needs more room to tighten a fitting on a radiator.


3-Zone LED Illumination on EK-Quantum Impulse 120 PC Fan

One of the main features the new EK-Quantum Impulse 120 fan offers is its simplicity. It utilises the standard 3-pin 5V D-RGB connection, meaning you can use it with any standard 3-pin 5V addressable RGB controller or any of the popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector should be aligned with the +5V marking on the D-RGB (ARGB) header.

Features

Three Premium LED-Lit Zones: Unlike other EK fans, which have LEDs exclusively in the rotor, Impulse fans have additional LEDs on both sides of the frame.
MagLev and VAPO Bearing: The VAPO bearing adds a magnetic effect (magnetic levitation) to the bearing to reduce noise and increase shaft stability.
Square Frame for Airflow Focusing: The practical square shape of the fan frame provides optimal performance in either the pull or push regime without hydraulic losses, which ensures the optimal cooling capacity of your liquid cooling radiators.
Standard D-RGB Connectors: The EK-Quantum Impulse 120 fan's D-RGB lighting does not require any fancy or expensive additional controller for you to enjoy vibrant light effects. A simple 3-pin 5V addressable D-RGB connection for standard controllers or any popular D-RGB (ARGB) sync technology from major motherboard manufacturers is all you need.
OmniLink: The ability to daisy chain fan power, D-RGB, and even pump power across a single cable gives you the ultimate flexibility while reducing cable clutter. All the cables are flat ribbon style with no additional sleeving for an even better cable routing experience.

Specifications
Pack Information
Edition Quantum Impulse 120 D-RGB
Pack Type Single (1) Fan Expansion Pack
Includes 1 x 120mm Fan/s
Individual Fan Specifications
Fan Diameter 120mm
Fan Depth 30 mm
Fan Speed 400 ~ 1800 +/- 10% rpm
Fan Blades 9
PWM Yes
Fan Specialization
Airflow 57.5 CFM
Air Pressure 1.94 mm H²O
Sound Level (dBA) 24.3 dBA
Sound Level (Sone)
Motor Type
Bearing Type Magnetic
Manual Speed Controller No
Material
Fan Colour Translucent/Black
LED Yes
LED Colour Addressable RGB
MTBF
Fan Fixing Screw Fixing
Cable length 100 mm
Connectors
  • 1 x 3-Pin ARGB
  • 1 x 4-pin
Additional Information
Scan Code LN140970
Model Number 3831109854198
GTIN 3831109854198
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
