Cooler Master Mobius 120mm Air Pressure Black Fan

120mm Cooler Mobius Fan, Black, 7 Blade, Loop Dynamic Bearing, 2050 RPM, 63.1CFM Airflow, 22.6dB, 4-Pin PWM

Thumbnail 1 : Cooler Master Mobius 120mm Air Pressure Black Fan Thumbnail 2 : Cooler Master Mobius 120mm Air Pressure Black Fan Thumbnail 3 : Cooler Master Mobius 120mm Air Pressure Black Fan
Scan code: LN130996 Manufacturer code: MFZ-M2NN-21NPK-R1
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
£17.99
Get it Tomorrow, 21 AprIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Apr to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Mobius 120 PWM Fan from Cooler Master

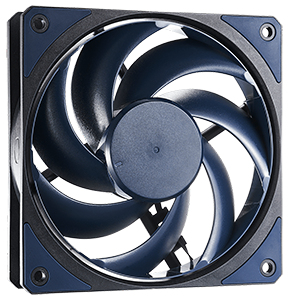

MOBIUS Fan

PERFECTING ENGINEERING Cooler Master’s Mobius 120 is the new series of performance fans. With the enhanced Ring Blade Design, the Mobius Series optimises both performance and acoustics, catering to a dynamic range of applications from case, liquid or air, to overclocking and intense gaming.

120mmFan Size

2050 RPM ± 10%Max. Fan Speed

63.1 CFMFan Airflow

Loop DynamicBearing Type

Finely Tuned Performance and Acoustics

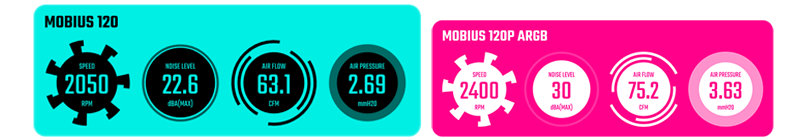

PRESSURE AIR ACCELERATION

PRESSURE AIR ACCELERATIONAngled inner frame rim with chamfered side vents boost airflow draw, maximising force induced air pressure and diminishing dead air.

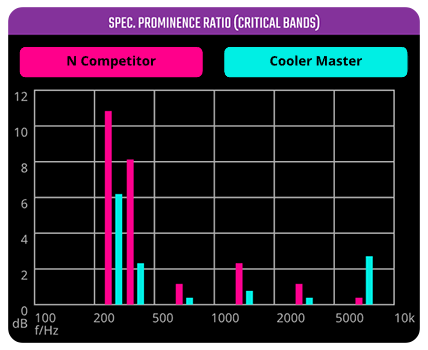

ABSOLUTE ACOUSTICS

ABSOLUTE ACOUSTICSSound output fine tuned to the optimal prominence ratio to achieve sub 6dB noise levels without performance sacrifice.

Acoustic Testing Anechoic Chamber for ISO 3745:

• FFT analyser: AD-3524.
• Microphone: B&K 2235.
• Sound Pressure: IS0-7779.
• Sound Power: ISO-7779.
• Sound Quality: 1S0-532B/ISO.
• Background noise: below 6dBA.

Designed with Premium Materials

LOOP DYNAMIC BEARING

LOOP DYNAMIC BEARINGNew loop dynamic bearing design utilises thick oil coating and lubrication to allow for stable performance.

OIL REFLOWThe oil flows back to the sealed bearing to create constant lubrication against friction and increases the life span of the fan.

DUST PROOFING

DUST PROOFINGThe sealed and concave position of the bearing prevents air and dust exposure and ensures a smooth transfer of motion.

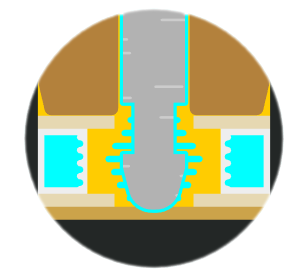

ANTI-SWAY SYSTEM

ANTI-SWAY SYSTEMMagnetic ring prevents bearing shaft from tilting, stabilizing the fan to prevent fan blade obstruction under various orientations, as well as oil spray.

Cooler Master Mobius Series

Cooler Master Mobius
Specifications
Pack Information
Edition Mobius 120
Pack Type Single (1) Fan Standalone Pack
Includes 1 x 120mm Fan/s
Individual Fan Specifications
Fan Diameter 120mm
Fan Depth 25 mm
Fan Speed 0 ~ 2050 ± 10% rpm
Fan Blades 7
PWM Yes
Fan Specialization High Airflow
Airflow 63.1 CFM
Air Pressure 2.69 mm H²O
Sound Level (dBA) 22.6 dBA
Sound Level (Sone)
Motor Type
Bearing Type Loop Dynamic Bearing
Manual Speed Controller No
Material Plastic
Fan Colour Black
LED No
LED Colour N/A
MTBF 200,000 Hours
Fan Fixing
Cable length
Connectors 1 x 4-pin PWM
Additional Information
Scan Code LN130996
Model Number MFZ-M2NN-21NPK-R1
GTIN 4719512126790
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
