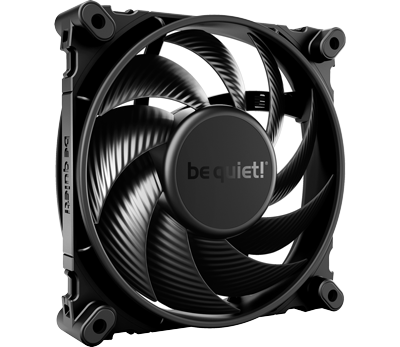

be quiet! 120mm Silent Wings 4 PWM Fan

120mm be quiet! Silent Wings 4 PWM, 9 Blade, Inaudible Airflow Fan, 1600rpm, 48.7CFM, 18.9dB, Fluid Dynamic, 4-Pin PWM

Scan code: LN127401 Manufacturer code: BL093
£19.99
£5.48 NEXT DAY DELIVERY
Order now and receive it by Friday, 6th December
Get it Friday, 06 DecIn stock
  • By DPD On 6th Dec Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Frequently Bought Together

Silent Wings 4 PWM – 120mm Inaudible Airflow Fan from be quiet!

Silent Wings 4 PWM Fan

NO COMPROMISE SILENCE AND PERFORMANCE Silent Wings 4 fan series is the epitome of high-performance fans with first-class features. Technically optimized on every level, Silent Wings 4 series fans suit for high-end PC builds as radiator fans, heat sinks, and case fans alike. Be it the speed switch of Silent Wings Pro 4, the variety of fan corners for different purposes or the smooth-running 6-pole fan motor with FDB: Silent Wings 4 fans are the most progressive and technically advanced fans by be quiet! and a paragon for every fan in this category.

1 x 120mmPWM Fan

1600 rpmFan Speed

1 x 4-pin PWMIncluded Connector

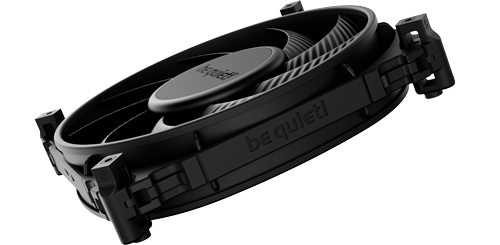

Magnificent Appearance from all Angles

design

An elegant look Be it as a radiator fan or in the case: Silent Wings 4 120mm PWM always makes a good impression. The all-black design combined with the high-grade fan sticker makes the fan shine in any system. This makes Silent Wings 4 120mm PWM a high performant and an incredibly good-looking fan.

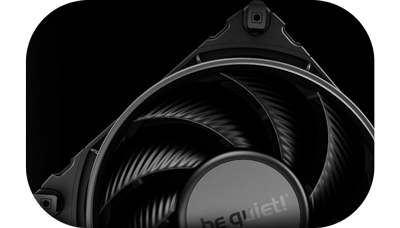

Optimized for High-End Performance

blades

Minimum tolerances for max air pressure Silent Wings 4 120mm PWM makes for extraordinary air pressure and, therefore, significant increases in the system’s performance. The decreased distance between the fan blades and the frame makes it possible. By that, the Silent Wings 4 120mm PWM allows the user to run even the most demanding applications.

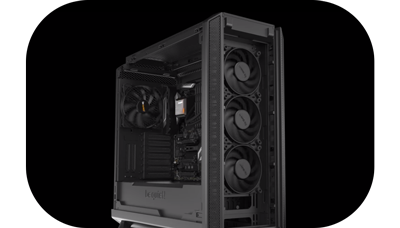

No Compromise Silence and Airflow

performance

Equally quiet and performant operation Silent Wings 4 120mm PWM is the fan of choice for all possible operations. Be it in a case, on radiators or heat sinks – Features like the silence-optimized fan blades and the funnel shaped fan frame make Silent Wings 4 120mm PWM a fan that makes no compromises between virtually inaudible operation and high performance.

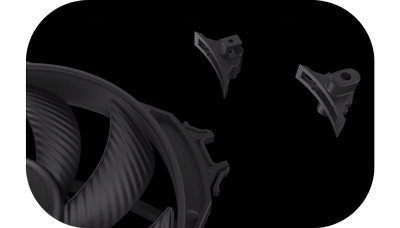

Different Mounting Options

mounting

For any purpose Silent Wings 4 120mm PWM has 2 mounting options. The pre-installed anti-vibration mounting reduces noise-generating vibrations to a minimum. For radiators and heat sinks, the plastic mounting is the first choice. Both solutions have in common that they enable virtually inaudible operation at regular speed.

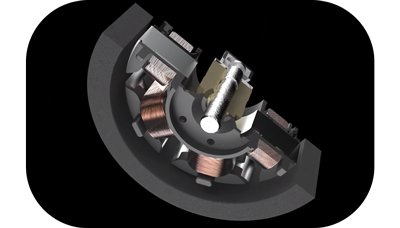

Fluid-Dynamic Bearing

bearing

For a sustainable operation The advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours. In addition, it reduces the vibrations significantly and supports the virtually inaudible operation of Silent Wings 4 120mm PWM.

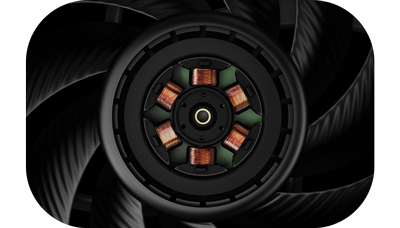

Virtually Inaudible Operation when Needed

motor

6-pole fan motor 6-pole fan motor with 3 phases for very low power consumption, less vibration and therefore quiet max. operation of 18.9dB(A). Equipped with this state-of-the-art technology the fan is virtually inaudible when operated in mid-speed.

Specifications
Pack Information
Edition Silent Wings 4 PWM
Pack Type Single (1) Fan Standalone Pack
Includes 1 x 120mm Fan/s
Individual Fan Specifications
Fan Diameter 120mm
Fan Depth 25 mm
Fan Speed 1600 rpm
Fan Blades 9
PWM No
Fan Specialization High Airflow
Airflow 48.7 CFM
Air Pressure 1.79 mm H²O
Sound Level (dBA) 18.9 dBA
Sound Level (Sone)
Motor Type
Bearing Type Fluid Dynamic Bearing
Manual Speed Controller No
Material Plastic / Rubber
Fan Colour Black
LED No
LED Colour
MTBF
Fan Fixing
  • Push-pin Fixing
  • Rubber Fan Mounts
Cable length 500 mm
Connectors 1 x 4-pin PWM
Additional Information
Scan Code LN127401
Model Number BL093
GTIN 4260052188859
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
beQuiet!
