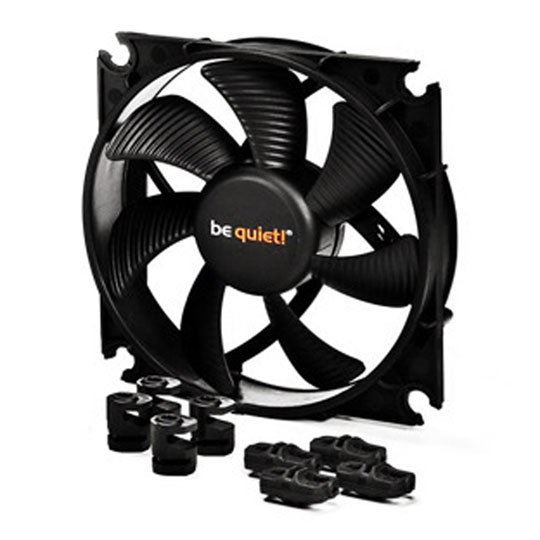

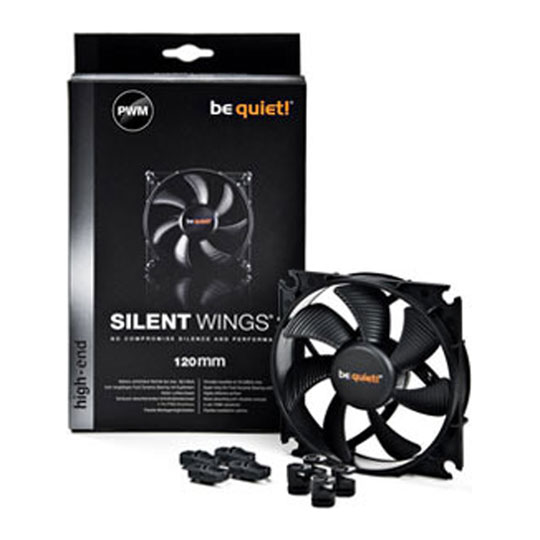

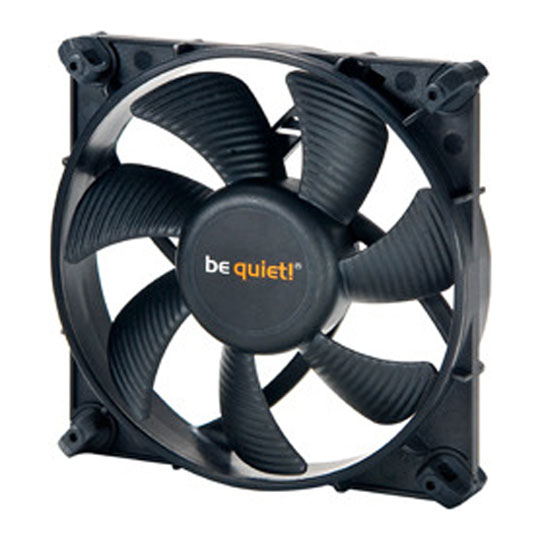

be quiet 120mm Silent Wings 2 PWM Quiet PC Case Fan
The SilentWings 2 fan family provides the greatest airflow-to-noise ratio and highest reliability on the market. Key to these fans’ unrivalled and uncompromising performance are a unique airflow-optimized fan blade design, custom anti-vibration mounts, and a high-tech fluid dynamic bearing with copper core that greatly reduces noise and imparts super-long life. Through this advanced technology these fans achieve virtually silent operation without sacrificing airflow, and so offer the perfect balance between superior cooling and serenity.
The newest member of the family, SilentWings 2 PWM, adds variable-speed capability to this formidable combination of features and abilities. Just connect one to the PWM header on your mainboard or fan controller to achieve fine control over the fan speed and noise profile.
The SilentWings 2 PWM 120mm model is the most common large fan size we make that combines all of the above class-leading features, plus truly significant airflow, at noise levels down to a virtually silent 16.5 dB(A). Features • Unique airflow-optimized fan blade design reduces noise-generating fan turbulence.
• Advanced fluid dynamic bearing providing for greatly reduced operating noise.

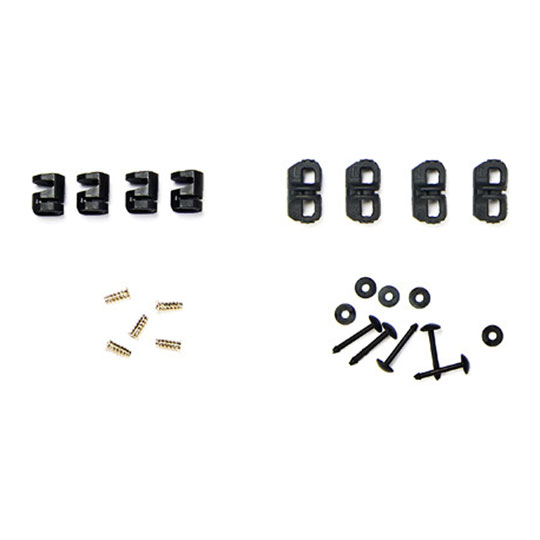

• Improved modular vibration damping mounts and rubberized frame help prevent transmission of vibration to computer case and its components.
• Option for direct hard mount when preferred.
• Advanced high quality IC motor controller reduces electrical noise.
Variable Speed Function
Pulse Width Modulation (PWM) allows compatible 4-pin controllers (including those built into many motherboards) to intelligently vary the speed (and thus the noise level) of the fan. With PWM your system can ramp up the cooling when it’s needed, or operate in maximum quiet mode when it’s not.
• Advanced fluid dynamic bearing (FDB) with industrial grade lubricant eliminates direct contact between rotor and frame, resulting in extremely low noise levels.
• The FDB has a copper core that conducts heat away from the bearing more effectively, enabling super-long fan life of up to 300,000 hours.
• Dynamically balanced fan blades enhance reliability and result in maximum operating silence.
• German product conception, design and quality control.
|Edition||Silent Wings 2 PWM|
|Fan Depth||25 mm|
|Fan Speed||1500 rpm|
|Fan Specialization||Inaudible Airflow|
|Air Pressure||1.63 mm H2O|
|Sound Level||16.5 dB|
|Motor Type||4-pole Motor|
|Bearing Type||Fluid Dynamic Bearing|
|Manual Speed Controller||No|
|Material||Plastic / Rubber|
|Cable length||450 mm|
|Connectors||1 x 4-pin|
