Scan code: LN121883 Manufacturer code: 90DA0010-B09000

ASUS ROG Strix 120mm XF 120 PWM Case/CPU Cooler Fan

120mm ASUS ROG Strix XF 120 Fan, 7-Blade, Black, 250-1800rpm, MagLev Bearing, 22.5dB, PWM

Thumbnail 1 : ASUS ROG Strix 120mm XF 120 PWM Case/CPU Cooler Fan Thumbnail 2 : ASUS ROG Strix 120mm XF 120 PWM Case/CPU Cooler Fan Thumbnail 3 : ASUS ROG Strix 120mm XF 120 PWM Case/CPU Cooler Fan
Scan code: LN121883 Manufacturer code: 90DA0010-B09000
Order now and get it tomorrow, Thu 18th Apr
Get it Tomorrow, 18 AprIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th Apr to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

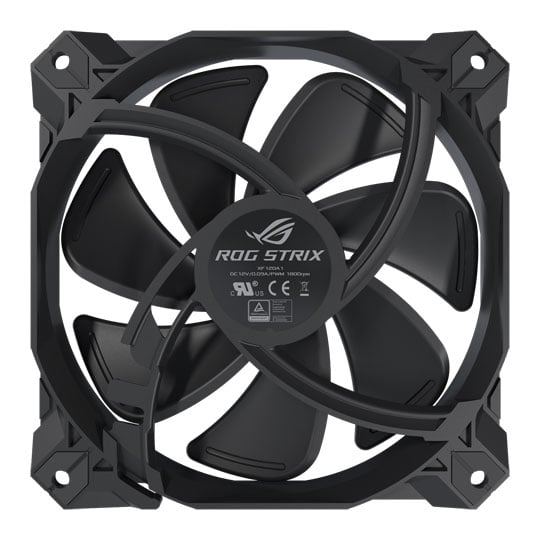

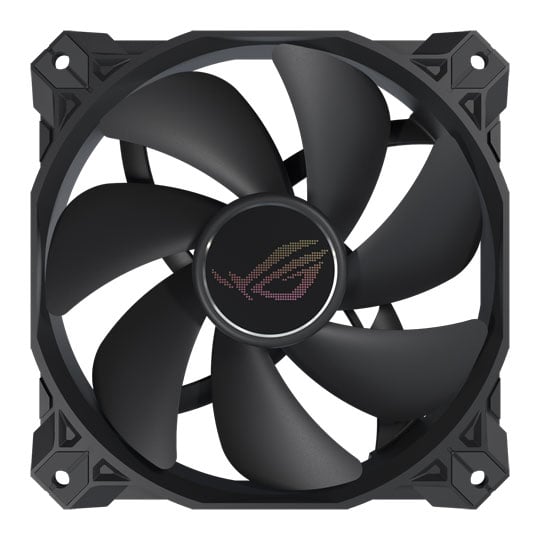

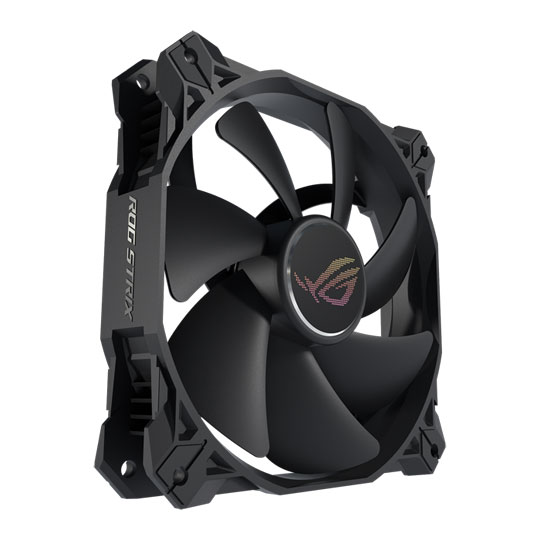

ROG Strix 120mm XF 120 PWM Case/CPU Cooler Fan from ASUS

ROG Strix 120mm XF

whisper-quiet coolingEnhance your cooling with the ROG Strix XF 120 fan. This impressive piece of kit offers superior cooling performance and targets the crucial middle area of the P/Q curve. This means you get optimised performance with quieter operation for both static pressure and airflow cooling applications. You can use the ROG Strix XF fan on your gaming PC case, radiators or on your CPU cooler. Wherever you need it, your cooling will be streamlined and exceptional.

120mmFan Size

250 - 1800RPM

22.5dBASound Level

Discover a Premium Experience

ROG Strix 120mm XF

Polychromatic ROG logo offers stunning colour from all angles.

Silver-plated logo for extra flair.

50cm sleeved cable provides more flexibility during installation.

The Perfect Blend of Airflow and Static Pressure.


optimized cooling performanceBy focusing on the P/Q curve, the ROG Strix XF delivers cool airflow to exactly where you need it, with whisper-quiet operation. Whether you install the fan on your case or components, the results stay superior.

Built to Last


MAGNETIC-LEVITATION TECHNOLOGYInside the ROG Strix XF is a unique fan bearing that features 360° MagLev technology to prevent slanting and friction. This intuitive tech delivers impressive cooling performance, near-silent noise and an exceptional lifespan of up to 400,000 hours.

Made with Aerodynamic Design

4K Recording

Fan-Blade GroovesThe ROG Strix XF has been crafted with precision-engineered grooves on the fan blades that direct and focus air. This allows the air to flow seamlessly along the blades to reduce flow separation, increasing fan performance and reducing noise.

4K Recording

Direct-Flow FrameThe carefully designed angle and curvature of the frame struts allow the airflow to be pushed in a unidirectional, highly focused stream. This genius design minimizes turbulence, with the focused airflow enhancing any static pressure.

Each Fan is Checked for Perfection


DYNAMIC BALANCE PRE-CALIBRATIONThe balance of each XF fan is manually tuned to minimize inefficiency and ensure optimal performance.

Kicking in Only when you Need It


PRECISE, FLEXIBLE PWM SPEED CONTROLWith an extensive range of 250-1800rpm, the XF fan offers precision and versatility that maximizes cooling performance across a range of workloads. The fan automatically turns off when set to 0% PWM, so you can enjoy silent, ultra-low noise when working with lighter workloads.

Pack Information
Edition ROG Strix XF 120
Pack Type Single (1) Fan Expansion Pack
Includes 1 x 120mm Fan/s
Individual Fan Specifications
Fan Diameter 120mm
Fan Depth 25 mm
Fan Speed 250 - 1800 rpm
Fan Blades 7
Fan Specialization Airflow/Pressure
Airflow 62.5 CFM
Air Pressure 3.07 mm H²O
Sound Level (dBA) 22.5 dBA
Sound Level (Sone)
Motor Type
Bearing Type Magnetic
Manual Speed Controller No
Material Plastic
Fan Colour Black
LED Colour
MTBF 400,000 Hours
Fan Fixing
Cable length
Additional Information
Scan Code LN121883
Model Number 90DA0010-B09000
GTIN 4718017984515

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

60 months
Return to base
DOA Period:
28 days
RTB Period:
60 months
