Arctic P12 SLIM PWM PST 120mm Static Pressure 3 Fan Pack

Scan code: LN124858 Manufacturer code: ACFAN00275A

£14.99Item due on 31 January 2025

Pre Order

Due 31st Jan

Arctic P12 SLIM PWM PST 120mm Static Pressure 3 Fan Pack : image 1

zoom

Arctic P12 SLIM PWM PST 120mm Static Pressure 3 Fan Pack : image 2

zoom

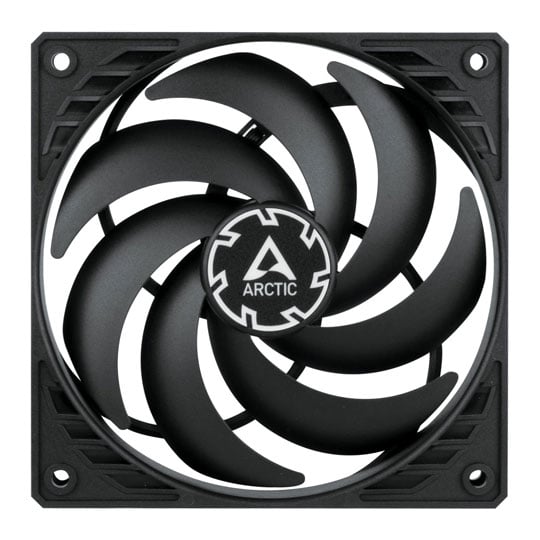

Arctic P12 SLIM PWM PST 120mm Static Pressure 3 Fan Pack : image 3

zoom

Arctic P12 SLIM PWM PST 120mm Static Pressure 3 Fan Pack

120mm Arctic P12 SLIM PWM PST (3 Pack), 7 Blade, Static Pressure, 2100rpm, 42.1CFM, Fluid Dynamic Bearing, Black, 4-pin
MORE INFO

MORE INFO

Scan code: LN124858 Manufacturer code: ACFAN00275A

£14.99

£5.48 NEXT DAY DELIVERY

Item due on 31 January 2025

Pre Order

Due 31st Jan

Email me when the availability or price changes

By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.

0% UP TO MONTHS Spend £99 or more and choose PayPal at checkout. More info
SCANPROTECT Protect against installation damage for 28 days. More info

Product Overview

Ideal Where Space is Limited

Unlike normal case fans, which are 25 mm thick, the P12 Slim PWM PST has an installation depth of only 15 mm. This makes it a predestined fan for small form factor builds.

Optimised for Static Pressure

During the development of the new P12 Slim PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 Slim PWM PST is particularly suitable for use on covered case vents or inlets with filters.

More Efficient Technology

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 Slim PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without compromising the performance.

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.

300 TO 2100 RPM Regulated Via PWM PST

With a wide range of regulation and the PWM Sharing Technology (PST), the P12 Slim PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Two Way Installation

• Push warm air out of the case.
• Pull cool air into your case.

Features

• Optimised for static pressure.
• Ideal choice on heatsinks, radiators and (partly-) covered case vents.
• PWM Sharing Technology (PST) regulates fan speed synchronously.
• Static Pressure: 1.45 mm H2O.

Specifications

Pack Information
Edition	P12 SLIM PWM PST
Pack Type	Triple (3) Fan Standalone Pack
Includes	3 x 120mm Fan/s

Individual Fan Specifications
Fan Diameter	120mm
Fan Depth	15 mm
Fan Speed	300 - 2100 rpm
Fan Blades	7
PWM	Yes
Fan Specialization	Static Pressure
Airflow	42.1 CFM
Air Pressure	1.45 mm H²O
Sound Level (dBA)
Sound Level (Sone)	0.3 Sone
Motor Type
Bearing Type	Fluid Dynamic Bearing
Manual Speed Controller	No
Material
Fan Colour	Black
LED	No
LED Colour
MTBF
Fan Fixing
Cable length
Connectors	3 x 4-pin PWM

Additional Information
Scan Code	LN124858
Model Number	ACFAN00275A
GTIN	4895213703888
