Scan code: LN33444 Manufacturer code: AK-FN058

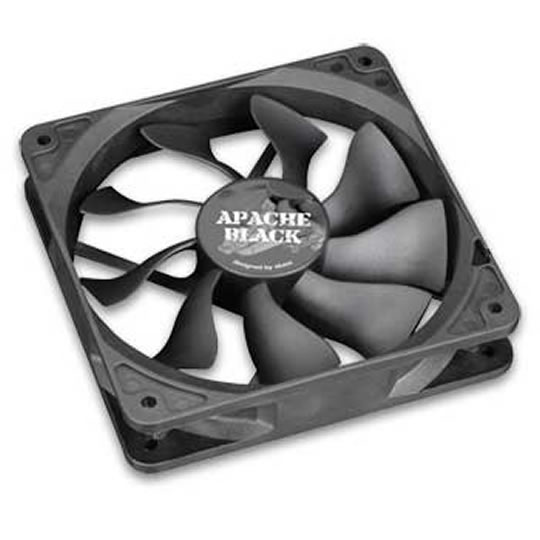

Akasa Apache Black Ultra Silent AK-FN058 Fan 120mm HDB bearing 4 Pin PWM

120mm Akasa Apache Black Ultra Silent Fan HDB bearing PWM fan w/4 pin connector & Rubber Pins - Retail

Thumbnail 1 : Akasa Apache Black Ultra Silent AK-FN058 Fan 120mm HDB bearing 4 Pin PWM
Akasa Apache Black Ultra Silent AK-FN058 Fan 120mm HDB bearing 4 Pin PWM : image 1
Scan code: LN33444 Manufacturer code: AK-FN058
£10.49
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Nov 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview This is by-far our best selling 120mm fan not just for cases but with some of our CPU Coolers too.

S-FLOW fan blade design delivers 30% higher airflow. IP54 moisture and dust protection.

Super silent 12cm fan with S-FLOW blades supplying 30% more airflow than a standard fan at the same speed. The greater performance combined with PWM automatic speed control allows the fan noise to be kept to a minimum.

The Apache fan creates more focused airflow providing blind-spot cooling, which makes it an ideal solution for a case or heatsink fan. HDB (Hydro Dynamic) bearings extend fan life and further enhance noise reduction. IP54 military standard ensures the fan is dust and moisture resistant. It’s powerful, quiet and tough!
Features • Super silent APACHE BLACK 12cm fan
• S-FLOW fan blade design delivers 30% higher airflow
• IP-54 military standard moisture and dust protection
• Super silent with PWM speed control
• Hydro Dynamic Bearing extends fan life

Application PC case or heatsink fan
Dimension 120 X 120 X 25mm
Fan speed 600 -1300 RPM
Max airflow 57.53 CFM (97.74 m3/h)
Max static air pressure 2.64 mm H2O
Noise level 6.9 -16.05 dB(A)
Current rating 0.33A
Voltage rating 12V DC
Bearing HDB (Hydro Dynamic)
Fan life expectancy 50,000 hours
Connector 4pin PWM
Product code AK-FN058
Specifications
Pack Information
Edition
Pack Type
Includes
Individual Fan Specifications
Fan Diameter 120mm
Fan Depth 25 mm
Fan Speed 600 - 1300 rpm
Fan Blades
PWM No
Fan Specialization
Airflow 57.53 CFM
Air Pressure
Sound Level (dB) 6.9 - 16.05 dB
Sound Level (Sone)
Motor Type
Bearing Type
Manual Speed Controller No
Material Plastic
Fan Colour
LED No
LED Colour
MTBF
Fan Fixing
Cable length
Connectors
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Akasa
Telephone:
+44 (0)20 8578 0055
Loading Please Wait

Please wait . . .

TekSpek Guides
Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Watercooling
Watercooling
Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

System Noise Reduction
System Noise Reduction
Date Issued: 5th Mar 2007

Anybody who has been near their share of computer systems will appreciate that not all systems make the same amount of noise. There are a number of reasons for why this is so. Firstly, a computer makes noise for different reasons. Generally, anything mechanical is going to make noise.

Read More

Reviews
120mm Akasa Apache Black Ultra Silent Fan HDB bearing PWM fan w/4 pin connector & Rubber Pins - Retail is rated 4.7 out of 5 by 9.
Rated 5 out of 5 by from Amazed by them My PC been sounding like a jet fighter plane for months now, I was putting it down to software problems, as temperature checks were putting everything around 35C Replaced the fans that came with the H100i and I cannot hear them at all, got it set to performance and i can nothing, fans are working great, i was expecting it to be quieter, but its near silent. Going to be replacing my other three fans very soon with these fans.
Date published: 2018-02-01
Rated 5 out of 5 by from Looks! Awesome looks and pretty quiet. Perfect for low density rads or case fan.
Date published: 2016-04-19
Rated 3 out of 5 by from Good-ish Bought 4 of these for a complete fan overhaul. I'm running them straight from the PSU which means they're at their full 1300rpm and I can say that they're absolutely not silent. They're well made, have very nicely braided cables and shift a lot of air. But I've owned much quieter fans in the past. If you plan to run these from the PSU I suggest you buy some voltage resistor cables to bottleneck the power going to them as I have done.
Date published: 2016-04-05
Rated 5 out of 5 by from Silent Fitted this as a replacement to my ageing CPU cooler fan, I did not realize how loud the bearings had become on that unit until I fitted this one. Turning the other ones on and off within the case this one was clearly quieter than the rest.
Date published: 2015-12-17
Rated 5 out of 5 by from Cool and quiet! Wanted at long last to reduce noise from Corsair 600T. Ditched Corsair fan controller and used Asus Fan Expert ll, replaced the dual fans on the Corsair A70 with the Apache Black....what a difference..same cool temp, overall lower fan speeds and the Apache fans live well up to their name. Together with cable tidy done...great job accomplished!!
Date published: 2015-04-08
Rated 5 out of 5 by from Quiet but useful These fans are virtually silent at lower speeds and shift a good volume of air when run flat out. I have used them in a few PC builds and have been very pleased with them.
Date published: 2015-01-18
Rated 4 out of 5 by from Excellent fan but may have compatibility problems with newer mobos These have been my favourite 120mm fans since they were released. They shift a reasonable amount of air and are virtually silent until they're going flat out. However, I'm having problems with them on mobos with H87 and Z97 chipsets as the fans won't start in silent mode until the system temperature is higher than I like. I don't know if it's a problem with the chipset or just Gigabyte's implementation but I've had to use the faster Viper fan instead. I'd still recommend this fan but just be aware of where you'll use it.
Date published: 2014-12-31
Rated 5 out of 5 by from One of the cheapest all-round decent PWM fans I always use these for case fans (unless I want LEDs), they have full PWM control (from about 400RPM), shift plenty of air when turned up and are very quiet at low speed. All in all, just what you need.
Date published: 2014-05-02
