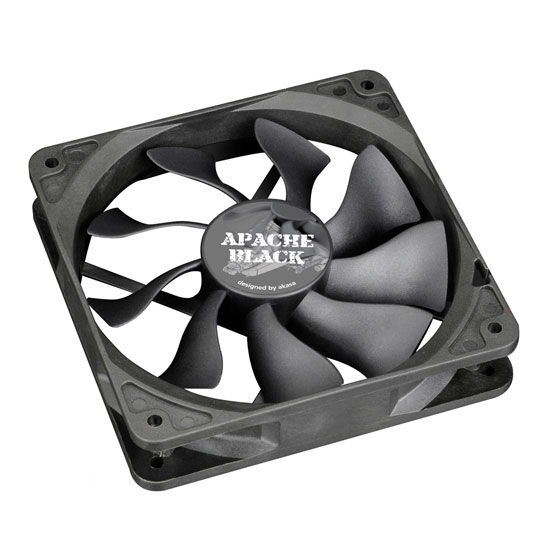

Akasa Apache Black Ultra Silent AK-FN058 Fan 120mm HDB bearing 4 Pin PWM

120mm Akasa Apache Black Ultra Silent Fan HDB bearing 4-PWM with S-Flow Blades 1300rpm

Akasa
Scan code: LN31544 Manufacturer code: AK-FN058 Request call
End Of Life
3xs Approved High End
Product Overview Please note this product is OEM, and is not supplied with installation screws.

This is by-far our best selling 120mm fan not just for cases but with some of our CPU Coolers too.

S-FLOW fan blade design delivers 30% higher airflow. IP54 moisture and dust protection.

Super silent 12cm fan with S-FLOW blades supplying 30% more airflow than a standard fan at the same speed. The greater performance combined with PWM automatic speed control allows the fan noise to be kept to a minimum.

The Apache fan creates more focused airflow providing blind-spot cooling, which makes it an ideal solution for a case or heatsink fan. HDB (Hydro Dynamic) bearings extend fan life and further enhance noise reduction. IP54 military standard ensures the fan is dust and moisture resistant. It’s powerful, quiet and tough! Features • Super silent APACHE BLACK 12cm fan
• S-FLOW fan blade design delivers 30% higher airflow
• IP-54 military standard moisture and dust protection
• Super silent with PWM speed control
• Hydro Dynamic Bearing extends fan life

Application PC case or heatsink fan
Dimension 120 X 120 X 25mm
Fan speed 600 -1300 RPM
Max airflow 57.53 CFM (97.74 m3/h)
Max static air pressure 2.64 mm H2O
Noise level 6.9 -16.05 dB(A)
Current rating 0.33A
Voltage rating 12V DC
Bearing HDB (Hydro Dynamic)
Fan life expectancy 50,000 hours
Connector 4pin PWM
Product code AK-FN058
