Scan code: LN26212 Manufacturer code: EXPX9501AFXSR

Intel Single-Port 10 Gigabit XF PCIe Server Adapter

1 Port Intel 10 Gigabit XF Server Adapter PCIe with Low Profile Bracket

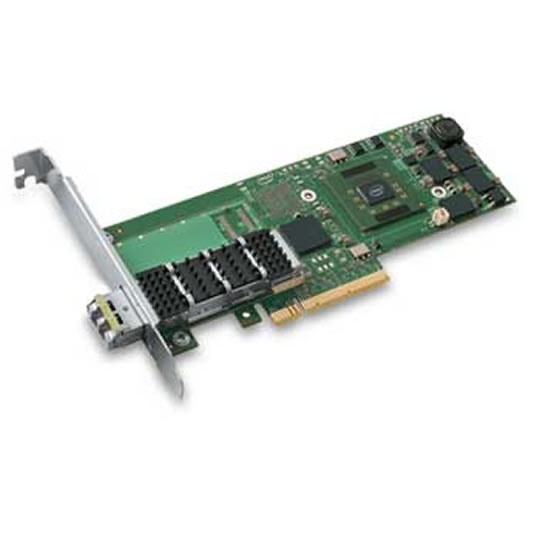

Thumbnail 1 : Intel Single-Port 10 Gigabit XF PCIe Server Adapter
Intel Single-Port 10 Gigabit XF PCIe Server Adapter : image 1
Scan code: LN26212 Manufacturer code: EXPX9501AFXSR
£359.99
From £15.00 / month (APR 0%)
Monthly Payment: £60.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £359.99
Total inc. interest: £359.99
Monthly Payment: £30.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £359.99
Total inc. interest: £359.99
Monthly Payment: £20.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £359.99
Total inc. interest: £359.99
Monthly Payment: £15.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £359.99
Total inc. interest: £359.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.99 / month (APR 15.9%)
Delivery Options
  • By DPD On 9th Dec To 11th Dec to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Energy-Efficient, Next-Generation 10 Gigabit Performance

10 Gigabit Ethernet has moved past the early adoption stage and is rapidly becoming mainstay for backbones within enterprise and service provider networks. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gigabit connections.
Based on the Intel® 82598EB 10 Gigabit Ethernet controller, the next-generation Intel® 10 Gigabit XF Server Adapters are designed to meet the throughput and latency requirements of bandwidth-hungry applications, while offering a very low power envelope for energy efficiency. Ideal for slot-constrained environments, the Intel® 10 Gigabit XF Dual Port Server Adapter provides a simplified alternative to multiple 1 Gbps
server adapters.

Please note - this is the single port edition : EXPX9501AFXSR (Single-Port SR) Features Intel 82598EB 10 Gigabit Ethernet Controller
Industry-leading, energy-efficient design for next-generation 10 Gigabit performance and multi-core processors

Low-profile
Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers

Load balancing on multiple CPUs
Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux*

Intel I/O Acceleration Technology (Intel I/OAT)
Accelerates I/O with higher throughput and lower CPU utilization by offloading processing overhead

iSCSI remote boot support
Provides centralized storage area network (SAN) management at a lower cost than competing iSCSI solutions

MSI-X support
Minimizes the overhead of interrupts
Allows load balancing of interrupt handling between different cores/CPUs
Virtual Machine Device queues1 (VMDq)
Allows the efficient routing of packets to the correct target machine in a virtualized environment using multiple hardware queues
Ensures transmit fairness and prevents head-of-line blocking

Low latency
Ability to toggle between the interrupt aggregation and non-aggregation mode based on the type of data being transferred
Optimized queues: 32 transmit (Tx) and 64 receive (Rx) per port
Network packet handling without waiting or buffer overflow
Efficient packet prioritization

Compatible with x4,5 x8, and x16 standard and low-profile PCI Express* slots
Allows dual-port operation in almost any PCI Express server slot, except x1 slots, and allows each PCI Express slot port to operate without interfering with the other

Support for most network operating systems (NOS)
Enables widespread deployment

Remote management support
Reduces support costs with remote management based on industry-wide standards

10GBASE-SR on multi-mode fiber (SR versions)
Ensures compatibility with fiber-optic cable lengths up to 300 meters
RoHS compliant,3 lead-free2 technology
Compliant with the European Union directive (effective as of July 2006) to reduce the use of hazardous materials

IntelR PROSet Utility for Windows* Device Manager
Provides point-and-click power over individual adapters, advanced adapter features, connection teaming, and virtual local area network (VLAN) configuration

Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
