Zotac NVIDIA GeForce GTX 1060 3GB Mini ITX Graphics Card
Zotac GeForce GTX 1060 Mini ITX 3GB GDDR5 VR Ready Graphics Card, 1152 Core, 1506MHz GPU, 1708MHz Boost
3GB ZOTAC - GeForce GTX 1060 - GPU - Graphics Card - Mini ITX
ZOTAC's 3GB Mini ITX GeForce GTX 1060 Gaming GPU
This is the GTX 1060 Mini ITX from ZOTAC, it still runs off Pascal architecture and features 1060 worthy clock speeds but also fits comfortably into small cases. Due to being much smaller in size the Mini only features a singular fan. This 1060 graphics card will bring great performance to your desktop and is ready to run VR games.
The GeForce GTX 1060 graphics card is loaded with innovative new gaming technologies that make it the perfect choice for the latest high-definition games. Powered by NVIDIA Pascal™—the most advanced GPU architecture ever created—the GeForce GTX 1060 delivers brilliant performance that opens the door to virtual reality and beyond. #GameReady

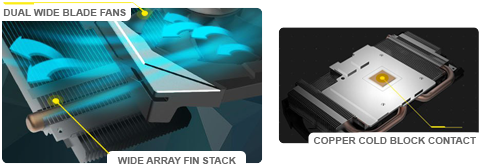

ZOTAC MINI 1060 COOLING SYSTEM
Extreme 1060 IceStorm Cooling
IceStorm is one of many embedded technologies within the ZOTAC Mini 1060, it enhances thermal regulation with overwhelming mass, utilizing dual 8mm heat-pipes and a copper cold block to maximize heat extraction from the core, while the vast aluminum fin array disperses heat. The Mini 1060 graphics card is then mounted with dual 90mm fans, these fans Minilify airflow, reduce noise, direct air down and keeps it there.

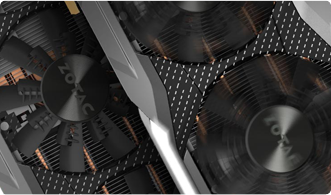

CLEVER 1060 GPU COOLING
Cool & Silent GPU with FREEZE Tech
This ZOTAC GeForce GTX 1060 series card comes embedded with FREEZE. An inspired innovation that enables powerful 1060 graphics cards to become silent and reduce the wear on the fans system. When the user is not in action or the temperature drops below a set threshold, the fans are idle removing any noise and preserving the fans performance.

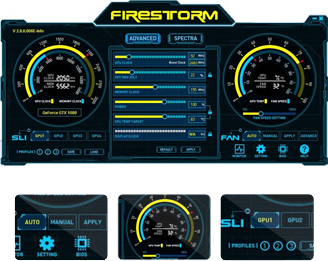

FIRESTORM 1060 CONTROL
GPU Customizing, Tracking & Control
Redesigned from the ground up, extract every ounce of performance from your ZOTAC 1060 graphics card with FireStorm. Tweaking and tuning is quick and easy with an optimized user interface that presents users with clock speed adjustments, fan control, GPU monitoring functions and much more.
GTX 1060 CONNECTIONS
HDMI 2.0b / 3x DisplayPort 1.4 / Dual-Link DVI
GEFORCE GTX VR READY
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.
Immersive VR requires seven times the graphics processing power of traditional 3D apps and games. NVIDIA's unique set of features - such as multi-res shading - mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.
|Chipset||GeForce GTX 1060|
|Manufacturing process||16 nm|
|Core Clock||1506 MHz|
|Boost Clock||1708 MHz|
|Memory Clock||8000 MHz|
|Memory Bus||192 Bit|
|Cooling Solution||Single Fan (1)|
|Cooler Design||Zotac Compact Single Fan|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||Not Supported|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power||120W|
|Graphics Card Power Connectors||1 x 6-pin PCIe|
|Minimum Recommended PSU||400 W|
|Maximum GPU Temperature|
|Dimensions||111.15 x 174 mm|
