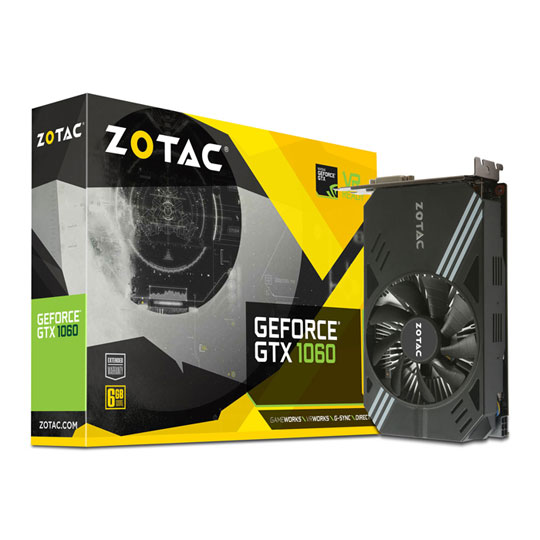

Zotac NVIDIA GeForce GTX 1060 6GB Mini Graphics Card

Zotac GeForce GTX 1060 Mini 6GB GDDR5 VR Ready Graphics Card, 1280 Core, 1506MHz GPU, 1708MHz Boost

Zotac
Scan code: LN73719 Manufacturer code: ZT-P10600A-10L Request call
£239.99
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
review Mid Range
Delivery options £11.50 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together

ZOTAC - GeForce GTX 1060 - GPU - Graphics Card - Mini

ZOTAC Mini GeForce GTX 1060 Gaming GPU

This is the GTX 1060 Mini from ZOTAC, it still runs off Pascal architecture and features 1060 worthy clock speeds but also fits comfortably into small cases. Due to being much smaller in size the Mini only features a singular fan. This 1060 graphics card will bring great performance to your desktop and is ready to run VR games.

The GeForce GTX 1060 graphics card is loaded with innovative new gaming technologies that make it the perfect choice for the latest high-definition games. Powered by NVIDIA Pascal™—the most advanced GPU architecture ever created—the GeForce GTX 1060 delivers brilliant performance that opens the door to virtual reality and beyond. #GameReady

1280
CUDA Cores

6GB
GDDR5

1506MHz
Base Clock

1708MHz
Boost Clock

ZOTAC MINI 1060 COOLING SYSTEM

Extreme 1060 IceStorm Cooling

IceStorm is one of many embedded technologies within the ZOTAC Mini 1060, it enhances thermal regulation with overwhelming mass, utilizing dual 8mm heat-pipes and a copper cold block to maximize heat extraction from the core, while the vast aluminum fin array disperses heat. The Mini 1060 graphics card is then mounted with dual 90mm fans, these fans Minilify airflow, reduce noise, direct air down and keeps it there.

CLEVER 1060 GPU COOLING

Cool & Silent GPU with FREEZE Tech

This ZOTAC GeForce GTX 1060 series card comes embedded with FREEZE. An inspired innovation that enables powerful 1060 graphics cards to become silent and reduce the wear on the fans system. When the user is not in action or the temperature drops below a set threshold, the fans are idle removing any noise and preserving the fans performance.

FIRESTORM 1060 CONTROL

GPU Customizing, Tracking & Control

Redesigned from the ground up, extract every ounce of performance from your ZOTAC 1060 graphics card with FireStorm. Tweaking and tuning is quick and easy with an optimized user interface that presents users with clock speed adjustments, fan control, GPU monitoring functions and much more.

GTX 1060 CONNECTIONS

HDMI 2.0b / 3x DisplayPort 1.4 / Dual-Link DVI

GEFORCE GTX VR READY

GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.

Immersive VR requires seven times the graphics processing power of traditional 3D apps and games. NVIDIA's unique set of features - such as multi-res shading - mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.

Specifications
Specifications
Chipset GeForce GTX 1060
Edition Mini
Manufacturing process 16 nm
Microarchitecture Pascal
Cores 1280
Streams N/A
Core Clock 1506 MHz
Boost Clock 1708 MHz
Memory Size 6GB
Memory Type GDDR5
Memory Clock 8000 MHz
Memory Bus 192 Bit
Cooling Solution Single Fan (1)
Cooler Design Zotac Compact Single Fan
Included/Fitted Backplate No
Interface PCIe 3.0 (x16)
Connectivity
  • 3 x DisplayPort 1.4
  • 1 x DVI-D DL
  • 1 x HDMI 2.0b
Maximum Digital Resolution 7680x4320 @ 60Hz
Maximum Analog (VGA) Resolution N/A
Max. Concurrent Displays 4 Displays
NVIDIA SLI Support Not Supported
GeForce GTX VR Ready Yes
Microsoft DirectX Support 12 API with Feature Level 12.1
HDCP Ready Yes
Width Dual Slot
Low Profile Compatible No
Low Profile Support N/A
Graphics Card TDP/Power 120W
Graphics Card Power Connectors 1 x 6-pin PCIe
Minimum Recommended PSU 400 W
Maximum GPU Temperature
Dimensions 111.15 x 174 mm mm
Package Type Retail
