Zoom LiveTrak L-8
Zoom LiveTrak L-8 - 8 channel mixer-12in/4out USB audio interface
- SCANPROTECT Protect against installation damage for 28 days. More info

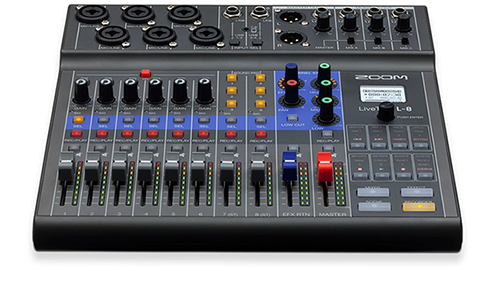

Zoom - LiveTrak L-8 Mixing Desk
The Perfect Desk for Podcasts, Small Bands & More Creators and their needs are always evolving, and Zoom is here to meet these needs. The Zoom LiveTrak L-8 has made it simpler and easier than ever before to mix, monitor and create pro-grade podcasts, music performances and more, all in one portable and affordable package. Featuring 6 powerful preamps, the LiveTrak L-8 is ready to handle anything from a whisper quiet podcast, raucous live debate to small bands and singer-songwriters.

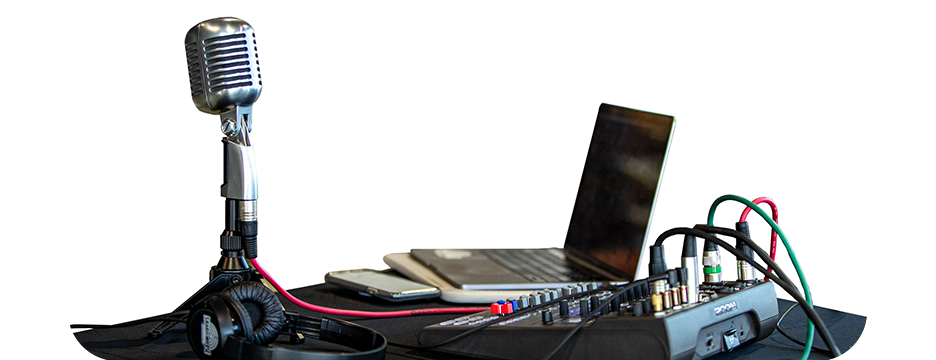

Power To The Podcast
Made for podcasters Podcast creators require specialist equipment. As a podcaster it’s important to have the correct audio features in your equipment and it’s helpful if your mixing desk is flexible and versatile enough to handle whatever you might need to throw at it. Zoom have created the LiveTrak L-8, a mixing console featuring Zoom’s proven audio performance with features tailored towards Podcasters.
Sound Pad Magic

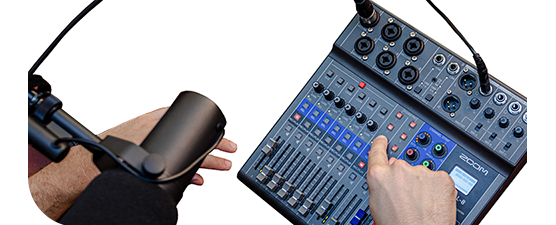

6 assignable sound pads Just one touch is all it takes to add intros, outros, jingles, ads and sound effects to your pod. Zoom’s LiveTrak L-8 has 6 assignable sound pads for you to fill up with all manner of soundbites and add some flavour to your podcast.
First-Time Caller, Long-Time Listener
capture live phone in's as they happen Telephone/Remote interviews live on air have never been easier to capture than with the LiveTrak L-8, simply connect your phone to the built-in TRRS cable, or choose to use the USB connection for a simple way of capturing audio from Skype, Facetime, Hangouts and more... Using the ‘Mix-Minus’ button will prevent any unwanted echoes and feedback in the conversation to ensure the audio is crystal clear for you and your listeners.
Small in Size - Big on Sound
Everything a small band could need
Whether you’re part of a small band, or you’re a singer-songwriter, the L-8 has your back. The L-8 boasts 6 powerful preamps, each with Phantom Power, a low noise floor (-121dBU EIN) and max input gain of +54dB. There’s an extra 2 Hi-Z, line-level and USB inputs for extra connectivity options, as well as an individual EQ and built-in effects.
The L-8 also allows for the recording of a maximum of 10 discrete tracks plus a stereo mix direct to an SD card at resolutions of up to 24-bit/96kHz. Drop in and overdub easily, then transfer your project to your DAW for extra tweaks if necessary.
Go Out & Play

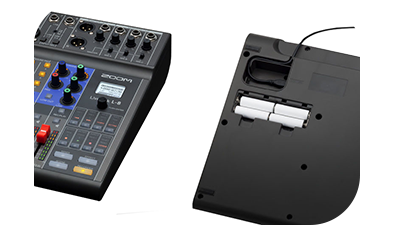

Record whenever, wherever No power outlet? No problem with the LiveTrak L-8. Capable of up to 2.5 hours of power from 4 AA batteries, the L-8 is excellent for when you’re on the go. Another option is to power the desk via USB battery, and thanks to the L-8’s unique USB connection design, accidentally disconnecting is never going to be a worry.
High Quality Audio Interface

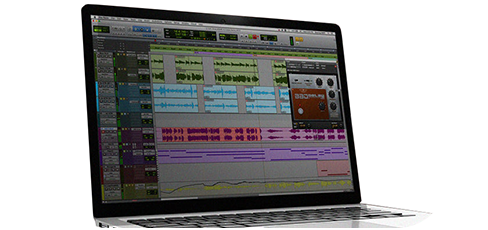

12-in/4-out Audio interface The LiveTrak L-8, as if it wasn't already versatile enough, also functions as an excellent 12-in/4-out audio interface. Record directly into your DAW of choice, or use the USB return to run backing tracks direcetly from your computer.
The Tech Spec
| Features | Specification |
|---|---|
| Inputs | MIC/LINE : 6 LINE : 2 |
| Outputs | MASTER OUT : 1 MASTER OUT (PHONES) : 1 MONITOR OUT (PHONES) : 3 |
| Mic/Line | Type XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) Input gain +10 – +54 dB/–3 – +41 dB (when Hi-Z ON) Input impedance XLR: 3 kΩ TRS: 3 kΩ/1 MΩ (when Hi-Z ON) Maximum input level –2 dBu when –26dB switch OFF (at 0 dBFS) +24 dBu when –26dB switch ON (at 0 dBFS) Phantom power +48 V |
| Line | Type TS phone jack Input impedance 10 kΩ Maximum input level +3 dBu |
| Smartphone connection jack | Type TRRS mini jack (4-contact/TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC) Input impedance 10 kΩ Maximum input level +3 dBu |
| Master Out | Type XLR jacks (balanced) Maximum output level +14.5 dBu Output impedance 100 Ω |
| Maximum simultaneous recording tracks | 12 at 44.1/48/96 kHz |
| Maximum simultaneous playback tracks | M10 |
| Recording format | WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo |
| Recording media | 4GB–32GB SDHC-compliant cards (Class 10 or higher) 64GB–512GB SDXC-compliant cards (Class 10 or higher) |
