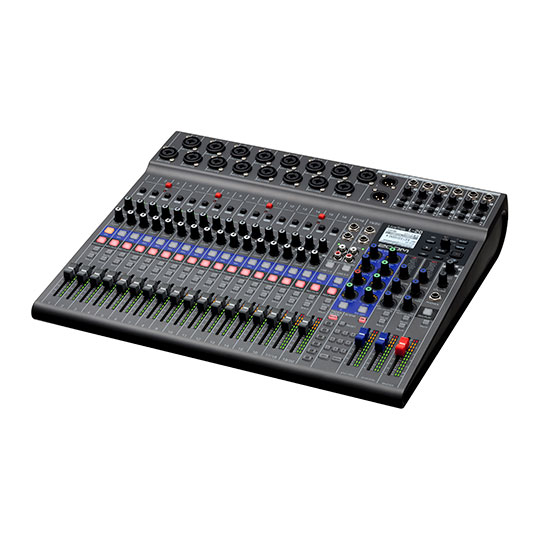

Zoom L-20 Livetrak
Zoom L-20 Livetrak 20-Channel Digital Console, Parametric EQ, 2 EFX Sends, 2 Hi-Z Inputs, Transport Controls
- SCANPROTECT Protect against installation damage for 28 days. More info
Zoom - L-20 Livetrak
20-Channel Digital Console
MORE BOARD. MORE MUSIC.The Zoom LiveTrak™ L-20 is a modern digital console that provides creators with everything they need to mix, monitor, and record complex productions. Featuring 20 discrete audio channels and six individual custom monitor mixes, The Livetrak L-20 is designed for bigger, bolder arrangements. It comes with 16 mono mic/line inputs and two stereo inputs, each with independent 3-band mid-parametric EQ and the 16 mono inputs offer stand-alone compressor control.
You can easily record 20 discrete channels along with a stereo mix directly to an SD card. The LiveTrak L-20 captures pristine audio in resolutions up to 24-bit/96 kHz. At -128 dBu EIN with +60 dB maximum input gain, the L-20 is equipped with Zoom's quietest and most advanced preamps ever. Mix down finished songs on the L-20 or transfer your discrete tracks to a DAW to perfect later, this console has everything you need and then some!
20Channels
16 x XLR-1/4"Mic Preamps
1 x 1/4"Headphones
at a glance
• 20-channel digital mixing console
• 22-track 24-bit/96kHz recording directly to an SD card
• 3-band mid-parametric EQ and 20 built-in effects on each channel
• 22-in/4-out USB audio interface for Mac, PC, or iOS
• 16 combo jacks work for both XLR and 1/4" connectors
Superior Mixing Experience
CREATE SIX CUSTOM MONITOR MIXESFeaturing six independent monitor outputs for musicians, each output can have its own custom mix, complete with effects, that can easily be switched from a powerful headphone output, to a balanced line output for stage monitors.
AND ONE FOR THE HOUSEThe LiveTrak L-20 includes a dedicated 7th output for the FOH engineer. The sound engineer can monitor the main mix and any of the sub mixes, thus adjusting them to the musicians’ satisfaction.
BIG BEAUTIFUL INTERFACEAlthough the LiveTrak L-20 is created to work as a stand-alone recording and mixing console, it also works as a 22-in/4-out USB audio interface. Audio Interface mode lets you route inputs to any DAW or streaming software, even while recording to an SD card. Additionally, audio can be routed from your computer into the L-20 to be mixed with your live performance. Class compliant mode, which allows for connection with iOS devices, is supported as well.
WIRELESS MIXINGThe LiveTrak L-20 offers wireless control using a free iOS mobile app featuring most onboard functions, including Fader Levels and Modes, Scenes, EQ, EFX sends, returns, parameters, and more. You can also manage your Effects Library and Scene Library right from your device. Control it all on either large Monitor Out view with a mini transport, or a mini Monitor Out view with expanded Transport controls.
Zoom LiveTrak L-20: Introduction
The Tech Spec
| Features | Specification | Type | Digital Mixer with USB Interface |
|---|---|
| Channels | 20 |
| Inputs - Mic Preamps | 16 x XLR-1/4" combo (mic/line) |
| Phantom Power | Yes |
| Inputs - Line | 4 x 1/4" (2 x stereo channels), 2 x Dual RCA Stereo |
| Inputs - Other | 2 x XLR-1/4" combo (Hi-Z) |
| Outputs - Other | 2 x TRS (Monitor) |
| Outputs - Main | 2 x XLR (master) |
| Outputs - Other | 6 x 1/4" (monitor) |
| Busses/Groups | 2 x FX Buses |
| Talkback | Built-in Slate Mic |
| Headphones | 1 x 1/4" TRS |
| USB | 1 x Type A, 1 x Type B |
| Computer Connectivity | USB (22 x 4) |
| Remote | 1 x 1/4" (footswitch control), 1 x Remote Port (BTA-1 adapter) |
| Faders | 18 x channel faders, 2 efx faders, 1 x master |
| A/D Resolution | Up to 24-bit/96kHz |
| EQ Bands | 3-band Mid-parametric EQ |
| Effects | 20 effect variations ; Reverb, Delay, Chorus |
| Signal Processing | Compression (16 channels) |
| Features | 22 recording tracks, 20 playback tracks, 9 scene recall settings |
| Transport Controls | Yes |
| Screen | LCD screen |
| Storage | SDHC/SDXC Card Slot |
| Software | Remote Mixer App (iPad, BTA-1 bluetooth adapter required) |
| Rackmountable | Yes (RKL-12 kit sold separately) |
| Power Source | 12V DC 2A power supply (included) |
| Dimensions | Width: 17.5" Height: 3.25" Depth: 15.3" |
| Weight | 8.1 lbs. |
