Zoom - H3-VR 360° VR Handy Recorder
Zoom - H3-VR 360° VR Handy Recorder, 48 kHz/24-bit sample rate, 120 dB Max SPL, 6-Axis Motion Sensor, 3D Stereo
- By DPD On 24th Sep to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
360° Virtual Reality Audio Recorder

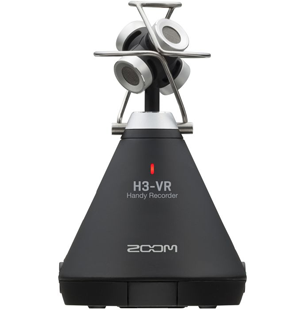

Zoom - 'H3-VR'
Capture RealityIf you’re a game developer, film maker or musician, virtual reality is without a doubt the future of content creation. 360-video is continuously growing in popularity, but the ability to easily create 360-audio had fallen behind… until now.
The Zoom H3-VR virtual reality audio recorder is the perfect solution for capturing and processing spatial audio for VR, AR and mixed-reality content. With a built-in Ambisonic mic, recorder and decoder, the H3-VR puts 360-audio in your hands.
Previously, capturing VR audio required a dedicated Ambisonic mic, a separate recorder and a computer for encoding the audio from raw Ambisonics A format to VR-ready Ambisonics B format. Now, with the H3-VR, all of the encoding and decoding is done on board, saving time, money and effort throughout the whole process.
120 dBMax SPL
48 kHz/24-bitSample Rate
−10 dBuMax Output Level
Amazing Features
• 4 built-in mics arranged in an Ambisonic array
• Full-sphere surround sound recording
• Three recording modes: Ambisonics, Stereo Binaural or Standard Stereo
• Onboard Ambisonics playback with audio rotation
6-Axis Motion Sensor
Full ControlEach driver has its own dedicated amplifier. The 50W A/B amp is responsible for the X-ART tweeter, whilst the midwoofer is being powered by a 100W PWM amp.
The front panel has a power switch and a control for the volume that controls the volume setting separately from the on/off switch.
On the back panel you’ll find extra controls: gain for the high frequencies (± 4dB) and two shelf filters for high and low frequencies.
Upgrade Your Game Experience
A New LevelThe slam of dungeon doors, growl of monsters or howl of the wind can make or break a player’s fantasy.
With the ability to record high-quality in-game audio, you can take your player’s experience to the next level.
Monitoring & Playback
Full 360° ExperienceMonitor your audio live in stereo binaural or use the H3-VR’s onboard Ambisonics Decoding to replicate your recorded 360-experience during playback.
Streaming & More
Perfect Multi-Purpose RecordingIdeal for live streaming, video conferencing, direct recording and more, the H3-VR’s audio interface mode turns it into a USB 360 mic for your computer or stereo mic for your iOS device.
Audio For Every Reality
Ambisonics Audio for VRThe H3-VR’s 4-capsule Ambisonic mic records precise 360-degree VR audio recordings up to 24 bit/96 kHz. And without needing to connect to a computer, the onboard decoder lets you to export Ambisonics B-format files directly.
Binaural 3D StereoThe H3-VR also records stereo binaural WAV files up to 24 bit/48 kHz. Stereo binaural provides a hyper-realistic spatial recording that upgrades 2D productions with 3D audio.
5.1ch Surround for VideoFree to download, ZOOM Ambisonics Player software can easily convert Ambisonics audio to a 5.1ch surround file that is pre-aligned to the proper speakers, and is exported to your video or audio editor for syncing with standard video.
360 Live StreamingThe H3-VR also allows you to live stream events in 360 degrees so that wherever your fans are, they’ll be able to feel like they're in the room.
Standard StereoThe H3-VR even offers standard stereo recording for recordings that will be played out of speakers rather than headphones.
Zoom H3-VR: Introduction
The Tech Spec
| Features | Specification | Recording Media | Cards compatible with microSD/microSDHC/microSDXC specifications (Class 4 or higher) |
|---|---|
| Recording Formats | Ambisonics A, Ambisonics B (FuMa/AmbiX) WAV 4ch poly (supports BWF and iXML): 44.1 kHz/16-bit, 44.1 kHz/24-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/16-bit, 96 kHz/24-bit Stereo WAV stereo (supports BWF and iXML): 44.1 kHz/16-bit, 44.1 kHz/24-bit, 48kHz/16-bit, 48 kHz/24-bit, 96 kHz/16-bit, 96 kHz/24-bit Binaural WAV stereo (supports BWF and iXML): 44.1 kHz/16-bit, 44.1 kHz/24-bit, 48kHz/16-bit, 48 kHz/24-bit |
| Display | 1.25" monochrome LCD (96×64) |
| Motion Sensor | 6 axes (3-axis gyro, 3-axis acceleration) |
| Built-In Ambisonic Mic | 4 matched unidirectional condenser mics Maximum sound pressure input: 120 dB SPL Mic gain: +18 – +48 dB |
| Line Out | Connector: 3.5 mm stereo mini Maximum output level: −10 dBu (1 kHz, 10 kΩ load) |
| Phone Out | Connector: 3.5 mm stereo mini Maximum output level: 20 mW + 20 mW (into 32Ω load) |
| USB | Connector: microUSB Mass storage operation USB 2.0 High Speed Audio interface operation 2 in/2 out (stereo/binaural input), USB 2.0 Full Speed 44.1 kHz/16-bit, 48 kHz/16-bit 4 in/2 out ( Ambisonics A/FuMa/AmbiX input), USB 2.0 High Speed 44.1 kHz/24-bit, 48 kHz/24-bit |
| Power | 2 AA batteries (alkaline, rechargeable NiMH or lithium) AC adapter (ZOOM AD-17): DC 5V/1A (supports USB bus power) |
| Estimated Continuous Recording Time Using Batteries | 48 kHz/24-bit, FuMa Rec Mode Alkaline batteries: about 11.5 hours NiMH batteries (1900 mAh): about 11.5 hours Lithium batteries: about 24 hours: The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. |
| Dimensions | 76 mm (W) × 78 mm (D) × 123 mm (H) |
| Weight (Main Unit Only) | 120 g |
