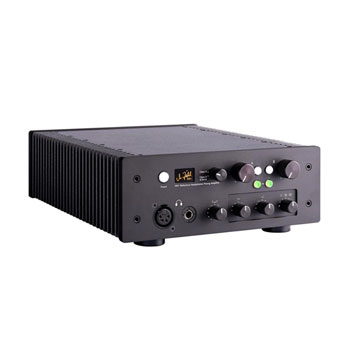

ZÄHL - HM1, Reference Headphone Mixing Amplifier

ZÄHL - HM1, Class A Reference Headphones Mixing Amplifier, Pure analogue design

Thumbnail 1 : ZÄHL - HM1, Reference Headphone Mixing Amplifier Thumbnail 2 : ZÄHL - HM1, Reference Headphone Mixing Amplifier Thumbnail 3 : ZÄHL - HM1, Reference Headphone Mixing Amplifier
Scan code: LN121497 Manufacturer code: HM1
£6,999.00Item currently awaiting an ETA
Pre order
FREE DELIVERY ON YOUR ENTIRE BASKET
From £145.82 / month (APR 0%) or 0% for 4 months
Monthly Payment: £583.25
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £6,999.00
Total inc. interest: £6,999.00
Monthly Payment: £291.63
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £6,999.00
Total inc. interest: £6,999.00
Monthly Payment: £194.42
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £6,999.00
Total inc. interest: £6,999.00
Monthly Payment: £145.82
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £6,999.00
Total inc. interest: £6,999.00
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £174.81 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Reference Headphone Mixing Amplifier
Zaehl - HM1

Zaehl - HM1

REFERENCE HEADPHONES MIXING AMPLIFIER Zahl’s HM1 is an audiophile-grade, fully analogue, Class A reference headphones mixing amplifier designed with zero compromise to deliver a wholly unprecedented degree of transparency and detail which delight even the most discerning professional.

Zahl’s HM1 also boasts two differing stereo source inputs too, which includes a cross-fade, accurate two-band EQ, alongside a stereo base control. This design results in the most true-to-life reproduction imaginable.

Two Different Power Stages The HM1 features two main modes of operation, Class A and Class A + Servo. The first offers the purest and most organic sound with zero crossover distortion and no artifacts resulting in negative and unwanted feedback.

The HM1’s alternate and second mode utilises the same Class A circuitry, but also adds negative feedback as to correct errors which arise between the power amp and headphones. Whilst both modes certainly offer technically greater performance, each mode will hold different appeal to different users.

at a glance • Pure analogue design
• Consistent dual-mono layout
• Logic circuits without clock generators
• Straight linear power supply with power transformer in external housing
• No-compromise interior and exterior construction
• No-compromise selection of components
• Perfect impulse reproduction

Special Features

Zaehl - HM1

UNIQUE: CLASS A POWER AND A STEP BEYONDClass A power amplifier in its purest form switchable negative feedback ("servo") while maintaining Class A operation

Zaehl - HM1

CROSS-FADE, COMPARE OR MIX TWO STEREO SOURCESCross-fade or switch between two stereo sources (channel A /channel B) perform a precise, critical A/B comparison with independent volume compensation create a mix from two audio sources

Zaehl - HM1

SOUND ADJUSTMENT AND STEREO BASE CONTROLPrecise, finely tuned tools for sound adjustment. Stereo base control for adjusting the stereo image (spatiality).

What The Pro's Say!

Zaehl - HM1

BY MUSICALHEAD WOLFGANG HACKHAUSEN(...) this acoustic precision weapon has no inherent sound at all. And in my opinion, this is one of the greatest compliments that can be paid to a device for reproducing music (...) outstanding timing and precise spatial imaging (...) both fine- and macro-dynamically capable of playing any (ortho) dynamic headphones on this planet effortlessly (...)

Mixing Features

Zaehl - HM1

twin input sourcesThe HM1 includes two input sources which can be used for critical A/B comparison of different DA converters, cartridges or comparing different mixes or effects. Each input has a dedicated volume control for precise level matching. Each input can be hard switched or gently cross-faded.

The two sources can also be used to be mixed together. The new mix is fed to the headphones as well as the line outputs which can be used to connect to a recording system or active speakers.

Sound processingThe HM1 includes a subtle two band EQ with fixed frequencies and gentle boost or cut. Unlike traditional tone controls found on amplifiers, it uses proven circuits used in studios to make subtle tonal accent changes rather than affecting the sound character.

The HM1 also includes a Stereo Base control akin to the circuit used in their IM1 module or AM1 console which lets you widen the stereo field without losing information in the Mid channels. This processor is useful to check the spatiality of a mix ranging from mono (fully left) to really wide. The Stereo base stage can be completely switched out of the signal to maintain the signal as pure as possible.

A Balance control also lets you compensate for any balance discrepancy whether in the mix, the headphones or the user’s hearing. The 21-position detent allows compensating for volumes up to 2.5dB on either side.

Dual Mono Design

4K Recording

individual power supply for both power-amp and pre-ampThe HM1 uses a dual mono design strictly separating left and right channels, avoiding any interference between channels. Each channel has its own power supply for both the preamplifier and power amplifier stage. Furthermore, the Mains transformer includes independent and completely potential-separated windings for each channel while filtering, voltage regulation and rectification are individual to each channel.

The headphone amplifier includes a 6.5mm Jack output and an XLR 4-pin connector. Using the latter ensures the perfect maintenance of the dual mono principle with no interference occurring at any point.

The Power supply uses a purely linear design and includes a wide range input. Using one of the best interference filters available, the mains input can be set to operate at the following voltages: 100V, 110V, 120V, 220V, 230V, 240V.

The Tech Spec

Features Specification

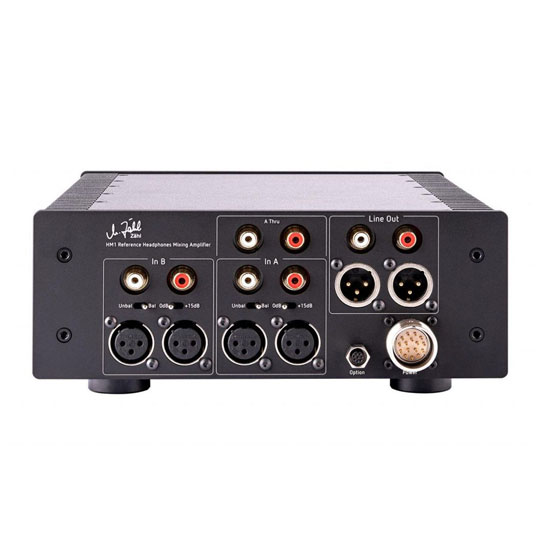

Inputs/Outputs Line Inputs balanced – Impedance 20KΩ – max. level +23dBu
Line Outputs balanced – Impedance 47Ω – max. level +23dBu
transformer-like behaviour: hot or cold may be connected to ground without loss
Line Inputs unbalanced – Impedance 20KΩ – max. level +23dBu
Line Outputs unbalanced – Impedance 47Ω – max. level +23dBu
Headphones Output Impedance Class A 0,8Ω, Class A & Servo 0,045Ω
max. level +23,5dBu (+/-16,5V)
Output Power per Side RMS 4W/30Ω; 7W/15Ω
Peak 7,6W/30Ω; 11W/15Ω; 12W/10Ω (18W for 1,5ms)
Frequency Response 10Hz ... 30kHz -/+0,05dB
1Hz ... 500kHz better than -3dB at Headphones Output @ +6dBu
Gain Line/Line – 0dB – +15dB switchable on rear panel
Line/Headphones – +6dB – +15dB switchable on rear panel
Noise 20Hz ... 20kHz flat RMS / A or B active
XLR/RCA Output -102dBu
Headphones Output -97dBu
Headphones Output THD (Total Harmonic Distortion) Class A 0,07% – Class A & Servo 0,0005%
(typ. @ +20dBu/7,75Veff / 30Ω load / 2W RMS)
Power Supply Mains Voltage – AC 50-60Hz, switchable 100V / 110V / 120V / 220V / 230V / 240V
Power Consumption – typ. 40W, max. 60W
Measures and Weights HM1: WxHxD approx. 225 x 90 x 300mm, approx. 5kg
HMP1 (Mains Adapter): WxHxC approx. 170 x 60 x 185mm, approx. 1,2kg
Specifications
Product Type Analogue Headphone Amplifier
Max Sample Rate
Connectivity (Input)
Connectivity (Output)
Bluetooth No
Rechargable Battery No
Dimensions WxHxD approx. 225 x 90 x 300mm mm (WxHxD)
