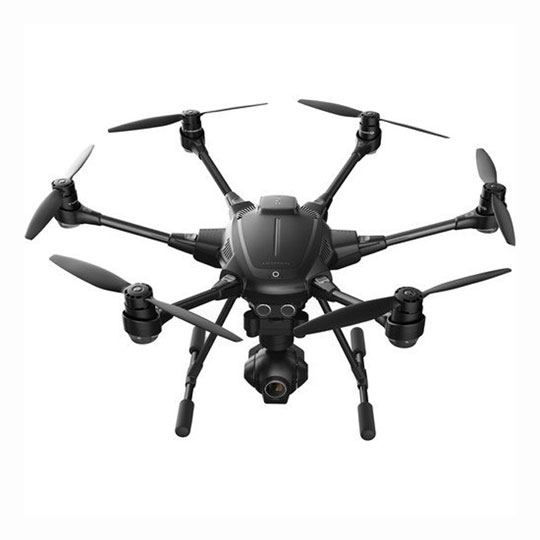

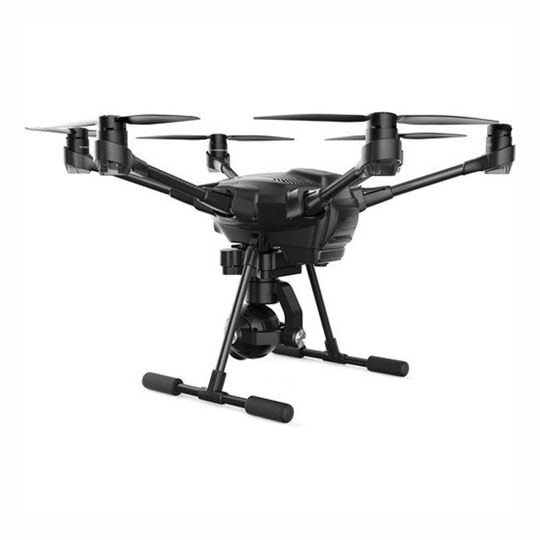

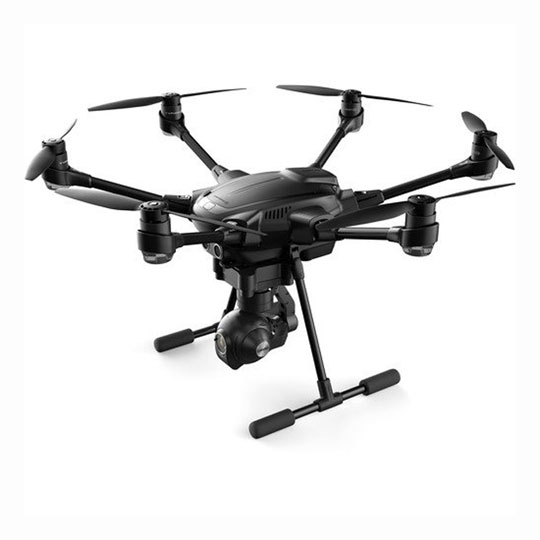

TYPHOON H RTF Drone with Backpack and Realsense from Yuneec
Yuneec have released a brand new firmware for the Typhoon H, updating the software for the Gimbal (v1.25), Autopilot (v1.29), Camera (v2.24) and the ST16 Ground Station (b25). The new firmware can be downloaded HERE.
A video tutorial is also available HERE
The Typhoon H is a highly advanced aerial photography and videography platform, packed with professional features and new safety and redundancy elements. Front sonar sensors allow for automatic collision avoidance., and its 5-rotor flight feature means it can fly and land safely in the unlikely event of the copter being reduced to 5 rotors.
The new CGO3+ camera gimbal with a Sony® sensor has 360° unlimited yaw. Combined with the retractable landing gear this allows for unobstructed views in any direction. The Typhoon H includes the Android® ST16 Ground Station, featuring an in-built 7” HD LCD touchscreen, displaying live footage in HD 720P.
The Typhoon H is a modular system that allows for the addition of features such as Intel® RealSense Anti-collision and IPS (Indoor Positioning System). Team mode ready means when bound to an additional ground station both controllers can simultaneously view the video feed from the CGO3+, as well as the telemetry data
Award winning innovation
Typhoon H is the most advanced aerial photography and videography platform available in such a compact size. Driven by customer demand for a design that goes beyond the limitations of a traditional quadcopter, Typhoon H delivers capabilities previously only found in high-end professional offerings, but at a consumer price.
Typhoon H offers flight durations of up to 25 minutes while filming with the CGO3+ 4K UHD camera. The Android powered ST16 Ground Station features a 7-inch touchscreen that displays live footage of your flight in HD 720p resolution and enables a wide variety of autonomous flight modes.
A full 360° view of the world
The 3-axis anti-vibration CGO3+ gimbal camera captures ultra-stable 4K Ultra High Definition video, vivid 12 megapixel still images and can be rotated through an unlimited, 360° range of motion. The CGO3+ gimbal camera features a high quality glass 115° field of view, wide-angle lens, and offers manual camera settings while in flight.
Digital video downlink in HD 720P
View real-time footage in HD 720p on the screen of the ST16 transmitter with the integrated digital video downlink with a range of up to 1 mile (1.6km).
With Team Mode, you can bind one Ground Station to Typhoon H and another Ground Station to the CGO3+ camera simultaneously. Capturing truly creative content is vastly more practical with cooperation between pilot and camera operator.

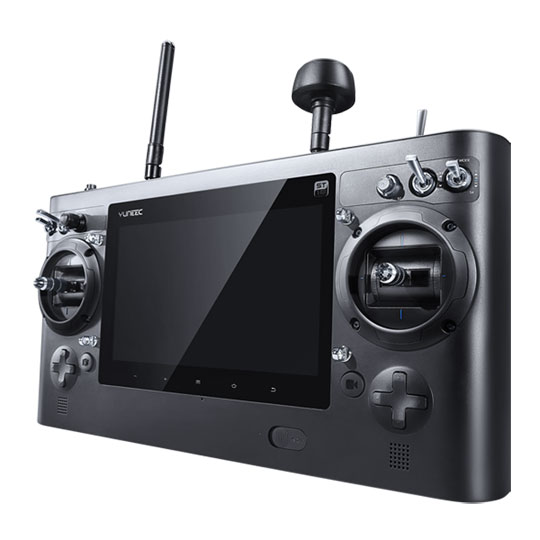

The ST16 Ground Station is an integrated transmitter, receiver and Android platform that gives you full control over Typhoon H, allowing you to easily program autonomous flight and capture stunning photos and videos. The large 7-inch integrated screen displays real-time footage of your flight, eliminating the need for an external device.
Retractable landing gear
Typhoon H’s landing gear retract out of the way to give you a full, 360° view of the world without anything obstructing your view.
Each one of the six arms folds down for unparalleled convenience and compactness.
Compact for easy transport
Available separately, the Typhoon H backpack's ergonomic design is perfect for your travel. The ABS housing is remarkably durable and impact-resistant. The protective material of the inner container is ultra-light and completely safe for Typhoon H.
Optional Accessories and spares for Typhoon H
Yuneec Typhoon H Drone Replacement Battery
Protective Rucksack for Yuneec Typhoon H
Yuneec ST16 Radio Handset
Propellor Set A for Yuneec Typhoon H
Propellor Set B for Yuneec Typhoon H
Yuneec RealSense Module for Typhoon H
Yuneec Indoor Positioning Module for Typhoon H
Yuneec Drone TYPHOON SteadyGrip For Go Pro Action Cameras
CGO3+ Gimbal Camera By Yuneec
Yuneec UAV Pilot Drone Flight simulator
Micro USB for Yuneec Typhoon H Features • Collision Avoidance - Fly Safer with Sonar Anti-Collision
• Motor Redundancy - Land Safely with only 5 Rotors
• CGO3+ Camera - 360° Unlimited Yaw - 4K Video at 30FPS/1080P up to 120FPS
• Retractable Landing Gear - 360° View With No Obstructions
• ST16 Ground Station - In-Built 7” HD Touchscreen for FPV
• Team-Mode Ready - Dual Control Capability
• Easy ‘Twist and Lock’ propeller installation
• Folding rotor arms for compact storage
• Integrated autonomous flight modes
• Max flight duration: 25 mins
• Battery: 4s 14.8v LiPo
• Charger: Sc4000-4
• Transmitter: ST16 Ground Station
• Max. flight altitude: 400ft (122m) agl
• Max. rotation rate: 85°/s
• Max. roll angle: 35°
• Max. rate of climb: 16 ft/s (5 m/s)
• Max. speed: 22 mph (10 m/s)
• Dimensions: 20.5” x 18” x 11.6” (520mm x 457mm x 294mm)
• Dimensions (folded): 13.8” x 10.6” x 10” (350mm x 269mm x 254mm)
• Airframe weight: 3.4lbs (1530g)
• Camera weight: .55lbs (250g)
• Takeoff weight: 4lbs (1800g)
• Effective pixels: 12.4 Megapixels
• Camera lens: 14mm/F2.8
• Field of View: 115°
• Electronic shutter: 1/30 – 1/8000
• Video transmission range: 1 mile (1.6km)
• Video resolution: 4K UHD 30fps
