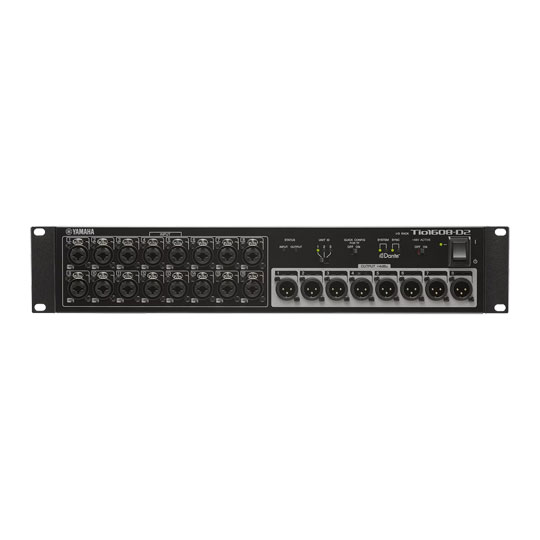

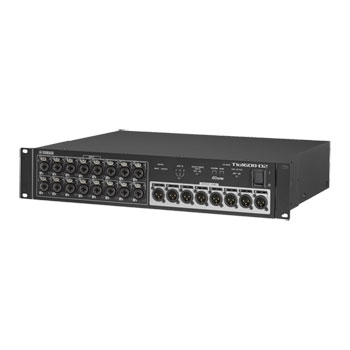

Yamaha TIO1608-D2 Dante I/O Rack

Yamaha - TIO1608-D2 Dante I/O Rack with 16 Microphone/Line Inputs and 8 Line Outputs

Thumbnail 1 : Yamaha TIO1608-D2 Dante I/O Rack Thumbnail 2 : Yamaha TIO1608-D2 Dante I/O Rack Thumbnail 3 : Yamaha TIO1608-D2 Dante I/O Rack Thumbnail 4 : Yamaha TIO1608-D2 Dante I/O Rack
Scan code: LN143770 Manufacturer code: CTIO1608D2UK
Order now and get it tomorrow, Thu 18th Jul
£1,599.00
Get it Tomorrow, 18 JulIn stock
FREE DELIVERY ON YOUR ENTIRE BASKET
From £45.09 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £144.87
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,599.00
Total inc. interest: £1,738.37
Monthly Payment: £78.08
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,599.00
Total inc. interest: £1,873.80
Monthly Payment: £56.00
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,599.00
Total inc. interest: £2,015.68
Monthly Payment: £45.09
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,599.00
Total inc. interest: £2,163.93
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £42.49 / month (APR 19.9%)
Delivery Options
  • By DPD On 18th Jul to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Dante Equipped I/O Rack

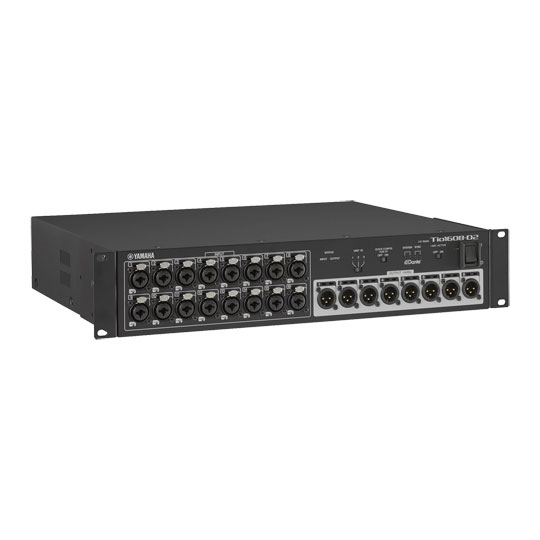

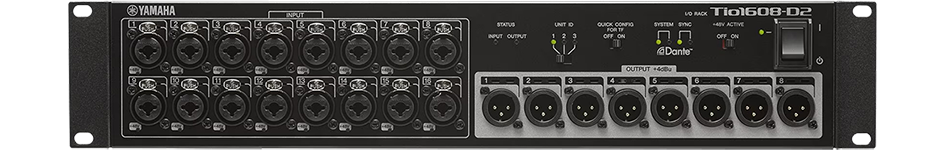

Yamaha - Tio1608-D2

Yamaha Tio1608-D2

16 microphone/line inputs and 8 line outputsThe Yamaha Tio1608-D2 is a Dante-compatible I/O rack equipped featuring 16 mic/line inputs and 8 line outputs. It can control gain from TF Series and DM3 consoles remotely, allowing the construction of a simple stagebox system. The versatile Tio1608-D2 also supports 96k, making it ideal for use as an I/O rack in large installations with products such as the RIVAGE PM or DME7.

The Dante audio network standard is utilized in the DM3 and TF series, as well as in the CL and QL digital mixers. These consoles can be freely combined with the Tio1608-D2 or an R series I/O rack to create a system that matches the required scale and budget. Patching can be enabled via “Dante Controller” while Remote HA can be controlled by “R Remote” software.

Please note: Remote HA on the Tio1608-D2 can be implemented only via the Primary port.
Remote HA control of the Tio1608D2 is not available on the secondary network, even when using the product in combination with a TF or CL/QL console.

At A Glance • Dante-equipped I/O rack with 16 microphone/line inputs and 8 line outputs
• Automatic digital-stage compensation for analogue gain changes on CL- and QL-series units
• Dante network protocol offers incredible scalability and flexibility
• Supports Quick Config Mode with DM3 and TF series mixers
• Stunning 96kHz converters provide low-latency operation

Simple, Versatile, High-Definition Dante Stagebox

Yamaha Tio1608-D2

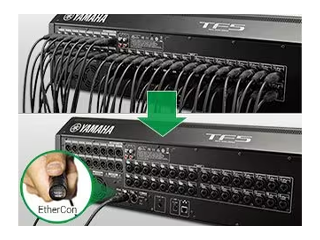

enhance the convenience of your consoleThe Tio1608-D2 is the perfect stagebox for use with TF Series or DM3. The TF Series can use the optional NY64-D expansion card to connect to up to three Tio1608-D2 units, while DM3 can connect to a single unit. Connecting the console and Tio1608-D2 unites with a lightweight, durable CAT5e Ethernet cable in a daisy chain provides low-latency, high quality sound transmission without the time-consuming transport and installation required when using analogue snakes.

Yamaha Tio1608-D2

Highly Reliable Network Audio ProtocolDante has been employed by leading manufacturers and professionals in the sound reinforcement industry for its low jitter, low latency, and high sampling accuracy. Using the Tio1608-D2 you can easily configure a high-performance Dante stagebox system with little or no IT networking knowledge. Thanks to the flexibility of the Dante network protocol, TF Series or DM3 can be connected to an extensive range of Dante-enabled equipment such as R Series I/O racks.

Yamaha Tio1608-D2

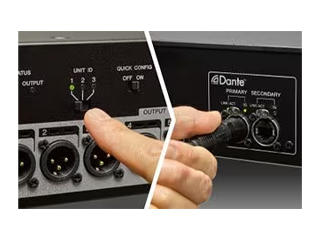

Fast and easy configurationTF Series and DM3 are equipped with functions for automatic configuration of network settings and audio patching connections, making system configuration easy. After configuring the unit ID and QUICK CONFIG switches from the front panel of the Tio Rack, using the QUICK CONFIG function of the TF Series or the AUTO CONFIG function of the DM3 allows you to complete setup simply by connecting the console and Tio Rack with an Ethernet cable. Turn on the power and you're ready to go!

Yamaha Tio1608-D2

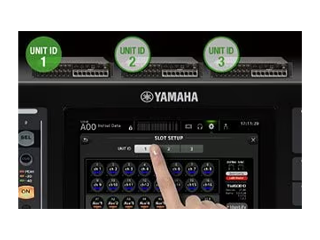

Simple and Flexible Input SelectionOnce the basic configuration is completed you can easily assign inputs to best suit your system setup. All inputs can be assigned uniformly to the Tio Rack in an instant from the TF Series INPUT screen menu or the PATCH screen on a DM3. Users can also change each input to receive signal from multiple locations, allowing effective use of all inputs.

Yamaha Tio1608-D2

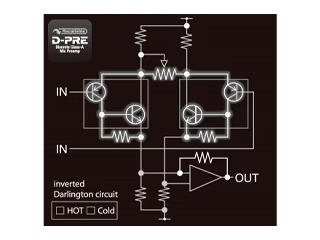

Recallable D-PRE preamplifiersThe Tio1608-D2 inherits the natural, musical sensibility that Yamaha pursued in the development of the TF Series. Mechanical construction, circuit board layout, power supply, grounding, and parts selection have all been done with meticulous attention to detail and quality, combined with exhaustive performance and listening tests at each stage of development. The Tio1608-D2 features the same recallable D-PRE microphone preamplifiers as the TF Series to provide a consistent, natural, musical sound throughout the entire system.

Yamaha Tio1608-D2

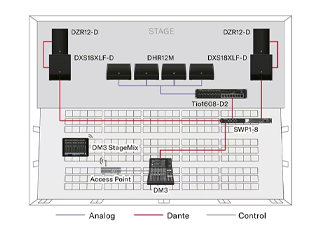

System example with DM3Tio1608-D2 allows you to easily connect a DM3 digital mixer system. System setup uses a Plug In & Play method. Simply connect Cat5e cable, select the device IDs and the system is ready. Remote HA control is available via Cat5e. StageMix App allows wireless remote control of the console from the arena, the stage or the audience etc.

The Tech Spec

Features Specification
Type Digital Stage Box
Compatibility Yamaha TF Mixers with Dante Cards
Channels 16 x 8
Inputs - Mic Preamps 16 x XLR-1/4" combo (mic/line)
Outputs - Main 8 x XLR

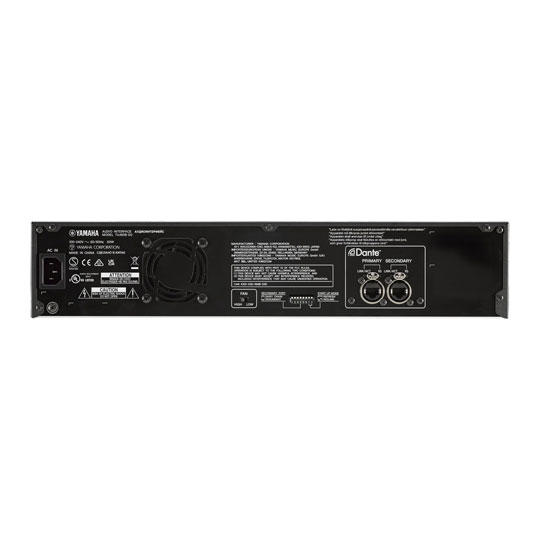

Data I/O 2 x EtherCon (primary, secondary)
Computer Connectivity Ethernet (Dante)
Rackmountable Yes
Power Source Standard IEC AC cable
Dimensions Width: 18.87"
Height: 3.5"
Depth: 14.37"
Weight 12.6 lbs.
Specifications
Total Channels 16
Max Mic Inputs 16
Computer Interface AVB Ethernet
Mixer Type Digital
Computer Interface Channels 0
Total Aux Sends 0
Subgroup / Bus Outputs 0
Max Line Inputs 0
Analogue Insert Points No
Flying Faders No
Internal FX No
