Yamaha TF-Rack Digital Mixer
Yamaha - TF-Rack, All-In-One Rack-Style Digital Mixer, 16 - Expandable to 40 Input Mixing Channels
Digital Mixer

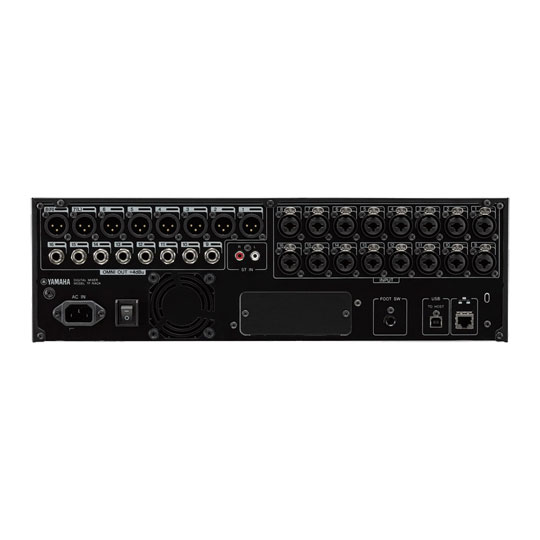

Yamaha TF-Rack
Groundbreaking TF Series TouchFlow Operation™ in Rack-mount FormEver since the first Yamaha digital mixer was released in 1987, they have been a leader in digital mixer innovation for a wide range of applications. For small events and halls, large-scale outdoor concerts, music production, commercial installations and more, Yamaha provides a comprehensive lineup that delivers world-renowned sonic quality, operability, functionality and reliability.
TF Series digital mixing consoles debuted in 2015 offer TouchFlow Operation™ which let the user respond to the music and artists on stage with unmatched speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the perfect mix. Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications.
The new TF-RACK is a compact rack-mount version of the TF Series, offers the same levels of performance and groundbreaking operability. This space-saving model is accessible to a wide range of users, from beginners to seasoned engineers. The TF-RACK is an unbeatable choice when smooth, intuitive setup and operation is required in limited spaces.
At a glance
• All-in-One rack-style digital mixer
• Inputs: 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin)
• Output: 16 (8 XLR + 8 TRS phone)
• Channels: 40 (32 mono + 2 stereo + 2 return)
• Aux Buses: 20 (8 mono + 6 stereo)
• Stereo Buses: 1
• Sub Buses: 1
Intuitive TouchFlow Operation™ in Rack-mount Form
The Tech Spec
| Features | Specifications | Type | Rackmount Digital Mixer |
|---|---|
| Channels | 16 - expandable to 40 input mixing channels (32 mono + 2 stereo + 2 returns) |
| Inputs - Mic Preamps | 16 x XLR-1/4" combo |
| Phantom Power | 16 channels |
| Inputs - Line | 16 x XLR-1/4" combo |
| Inputs - Other | 1 x Dual RCA Stereo |
| Outputs - Main | 8 x XLR, 8 x 1/4" (omni outs +4dBu) |
| Aux Sends | 8 x mono, 6 x stereo |
| Data I/O | 1 x RJ45 (LAN) |
| Headphones | 1 x 1/4" |
| USB | 1 x Type B, 2 x Type A |
| Computer Connectivity | USB (34 x 34) |
| Remote | 1 x 1/4" (footswitch) |
| I/O Expansion Slots | 1 x slot available |
| EQ Bands | 4-band parametric, 31-band Graphic |
| Effects | Reverb, delay, flanger, chorus and more |
| Signal Processing | Compression, Gates |
| Software | TF Editor software (Windows, Mac), TF StageMix (iPad), MonitorMix (iPhone, iPad, iPod touch) |
| Rackmountable | Yes |
| Power Source | Standard IEC AC cable |
| Dimensions | Width: 18.87" Height: 5.25" Depth: 16.12" |
| Weight | 20.3 lbs. |
