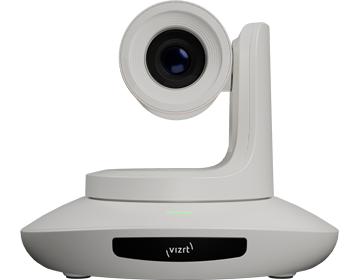

Vizrt - 'PTZ3 Plus'
(White)
Connect, Capture, and createTailor-made to bridge the gap where ProAV meets Broadcast, Vizrt PTZ3 PLUS cameras deliver high-quality video for any live production or presentation. Featuring HD resolution video, 20x optical zoom, great low-light performance, phantom-powered audio, easier-than-ever integration with augmented reality graphics systems like Viz Virtual Studio Go, and AI presenter tracking and the world's first FreeD tracking data embedded via NDI|HX. All in a sleek, discrete body that blends into any space.
The PTZ3 PLUS cameras are perfect for live streaming, corporate town halls, capturing live events, and other activities that require high-quality audio and video. With NDI connectivity, the camera easily integrates into your network for simple setup. It's now easier than ever to configure augmented reality/virtual reality solutions like Viz Virtual Studio Go with FreeD tracking data embedded in every frame over NDI|HX. You'll be creating broadcast-quality productions in no time.
ConnectCover all bases with NDI® at its core, 3G-SDI and HDMI outputs, and RS232 control. Simplify setups with a single ethernet cable providing NDI® audio and video plus PTZ control, tally, power, and the world’s first FreeD-over-NDI|HX.
Vizrt PTZ cameras simply appear on the network and can immediately be built into any workflow with ease, while native NDI®|HX3 compatibility delivers broadcast quality video with super low latency – using a fraction of the bandwidth of full NDI.
Combined with Viz Connect Tetra’s NDI Bridge functionality, PTZ3 PLUS cameras can be deployed anywhere in the world and automatically connect to your network for the simplest remote setups.
CaptureCapture presentations and live productions in crystal clear clarity with HD or UHD 4K resolutions, with wide aperture lenses, large sensors, and optical low pass filters giving excellent low light performance and depth of field control.
Intelligently track presenters automatically with AI presenter tracking, so talent is always in shot and exactly where you want them to be, with multiple subject framing choices and aspect ratios to choose from.
Connect to any powered and non-powered audio source with phantom-powered mini XLR input for professional audio capture with microphones, mixers, amplifiers, and soundboards.
CreateCreate content easily by connecting and controlling your PTZ3 PLUS camera to any TriCaster, CaptureCast, Viz Virtual Studio Go, or any other SDI- or NDI-enabled device.
Adjust subject tracking using macros on your TriCaster, while silky smooth ease-in and ease-out movements deliver seamless, smooth transitions for a natural, superior-quality production without jittery or stuttering movements.
Create exciting audience experiences with easier than ever setup of AR/VR systems like Viz Virtual Studio Go with embedded FreeD camera tracking data over NDI|HX.
Camera Features
AI presenter TrackingKeep talent in shot automatically and eliminate the need for manual camera adjustments with AI presenter tracking, so you can focus on delivering seamless and dynamic presentations and live productions. Initial face detection intelligently tracks presenters even when they face away from the camera, and blackboard detection locks the camera in place during presentations for more enjoyable audience experience. Presenter memory ensures the camera won’t switch even if someone else enters the frame – unless you want it to, with tracked target switching making it easy to quickly switch between presenters.
Professional audioThe phantom powered mini XLR port makes it easy to connect any powered or non-powered microphone, audio source, or sound mixer to ingest audio in the same NDI|HX stream, so your productions sound as good as they look. Enjoy wider choice and less setup with the option to power +48v microphones with no amplifier or additional cabling needed. And never worry about accidentally powering non-powered mics with two-step confirmation needed to turn phantom power on.
Embedded FreeD TrackingUnlock new creative possibilities and easily create immersive experiences that captivate your audience with the world’s first PTZ camera offering FreeD-over-NDI support. Embedding the FreeD protocol’s precise camera tracking information – including position, rotation, and lens data – into every frame through NDI|HX further simplifies the setup of AR/VR systems like Viz Virtual Studio Go.
Partnering this with AI presenter tracking and pre-configured lens files, broadcast-quality AR/VR graphics are now within reach of every content creator. All through a single ethernet cable.
Intuitive ControlA simple and intuitive software control panel makes it easy to setup, configure, and adjust your PTZ3 PLUS cameras with pinpoint precision. Manage video sources, audio settings including phantom power, AI tracking, and device administration from one panel.

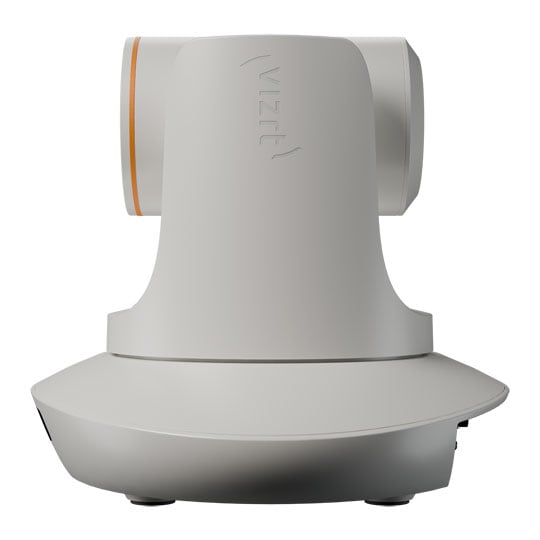

Discrete DesignFocus on the picture, not the camera. Vizrt PTZ3 PLUS cameras keep branding to a minimum, without losing their Vizrt personality. Available in black and white variants with branded swappable front IR panels ensure PTZ3 PLUS cameras blend into any production, corporate, medical, or academic environment, whichever way you mount it.
Silky Smooth movementPTZ3 PLUS cameras offer smooth movement between camera presets with fine ease-in and ease-out movements. Ultra quiet motors make it equally at home in quiet and loud environments.
NDI|HX3NDI|HX3 puts you in control, striking the perfect balance of quality and efficiency with zero compromise. NDI|HX3 offers the quality and low latency of full NDI without the heavy bandwidth usage.
PTZ3 PLUS Workflows
WorkflowsWid NDI at its core, the PTZ3 PLUS Camera range guarantees the tightest integration with any TriCaster live production system, CaptureCast, Viz Virtual Studio systems, Viz Connect Tetra, and any NDI workflow - offering professional audio, pristine 1080p60 to 4Kp60, and infinite production possibilities.
All the Connections you could possibly needSimplify your setup and cabling by sending power, control, audio, video, tally, and FreeD camera tracking data through a single ethernet cable.

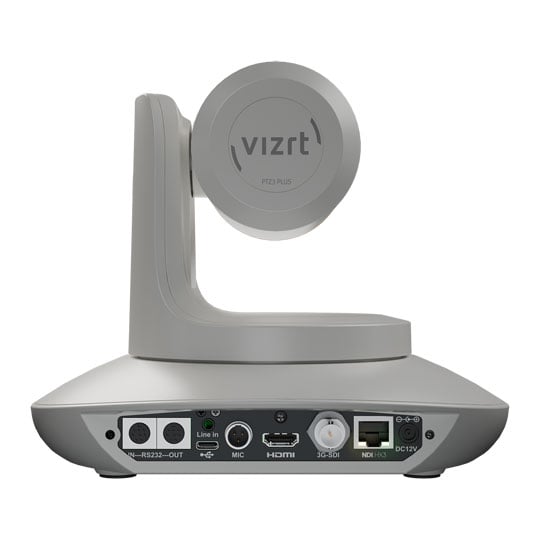

NDI|HX makes it easy to bring in any video source, while professional line in and XLR audio connectivity with phantom power open up a wide selection of audio input options. Output to 3G-SDI and HDMI and use RS232 for control if required.
What's in the Box?
Everything you need to get started• PTZ3 PLUS Camera
• Reversible L wall mount bracket mount
• Fixed plate ceiling/shelf mount
• Mount fixings
• Remote control (to control up to four cameras)
• Secondary reversed faceplate for upside-down mounting
• Power supply with UK, US, EU, and ASIA Power cables
• Mini XLR to XLR Adapter cable
• USB C cable and USB to serial cable for firmware updates and recovery
