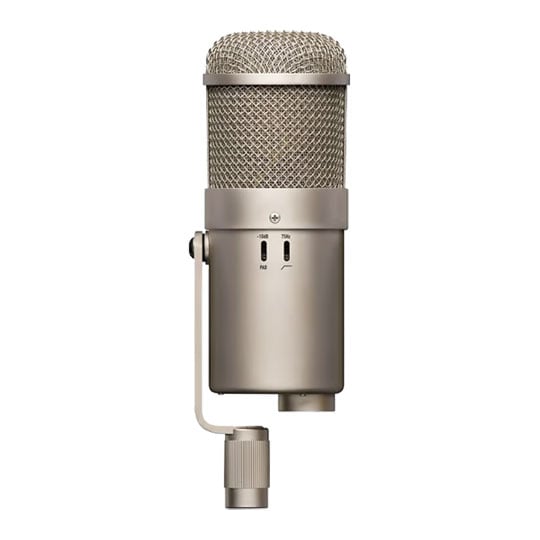

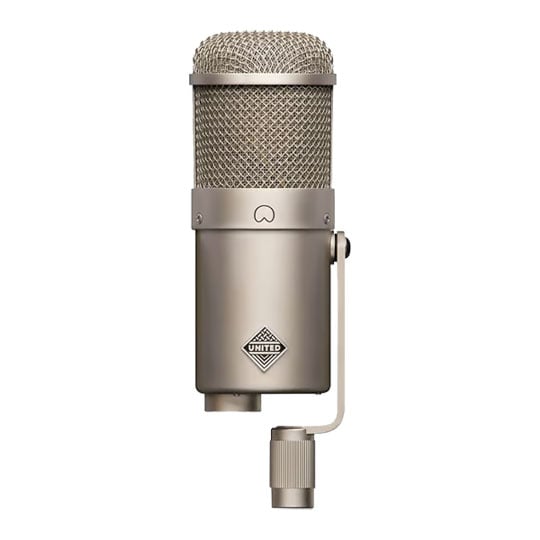

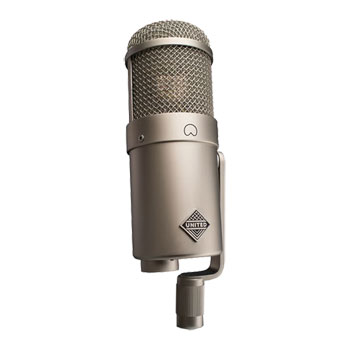

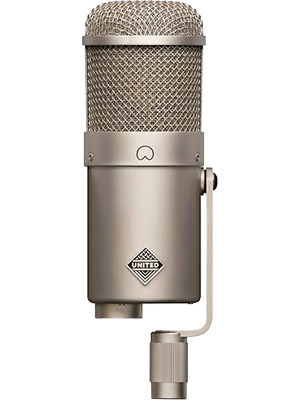

United Studio Tech UT FET47 Large Diaphragm Fet Condenser Microphone
United Studio Tech FET47 Cardioid, Large Diaphragm, Transformer-Balanced Microphone
- SCANPROTECT Protect against installation damage for 28 days. More info
Large Diaphragm Fet Condenser Microphone
United Studio Tech - UT FET47
THE RETURN OF THE LEGENDARY FET CLASSICThe United Studio Tech UT FET47 represents several years of extensive research and hard work all to capture the essence of one of the most highly-rated and classic solid state condenser microphones ever made, and recreate it for the modern recording artist.
The sonic qualities you’ve been searching have been achieved at an accessible price, with uncompromised quality. The UT FET47 features a custom Cinemag transformer, a custom Heiserman designed HZ-Series capsule, vintage polystyrene capacitors, and NOS (new old stock) FETs.
With Custom parts and vintage new-old-stock parts combined with each and every microphone being built in the USA by actual recording engineers, and you have the amazing United Studio Tech UT FET47 microphone.
150 ΩImpedance
20 Hz - 20 kHzFrequency Response
136 dB SPL
Amazing Features
• Clear, detailed and open sound with low noise and high headroom
• Nickel electroplated, solid milled brass construction
• American made, custom wound cinemag transformer
• Heiserman designed HZ Series K47 capsule
• 24k gold-plated XLR connector

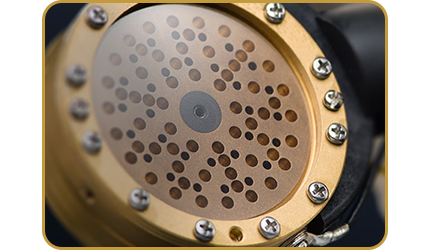

Heiserman Designed Capsule
Consistent QualityUnited Studio Tech worked with renowned capsule designer and manufacturer Eric Heiserman to develop a new take on the classic K47 German capsule design. Eric worked with the United team and their capsule manufacturer to create a new capsule from the ground up.
The capsule is open, articulate, and very three dimensional. This process required the analysis of everything from the sourced Mylar to the thread types of screws; but after many months and many iterations, everything that was hoped to be achieved has been done with the HZ-Series capsules.
Although many elements of the HZ-Series design will remain a secret, one superior attribute that was revealed is the use of dual, matched backplates. With the HZ-Series matching process, a far more accurate and consistent quality from side to side and capsule to capsule is achieved. The HZ-Series capsule is still manufactured only a few at a time, and meticulously listened to and tested.

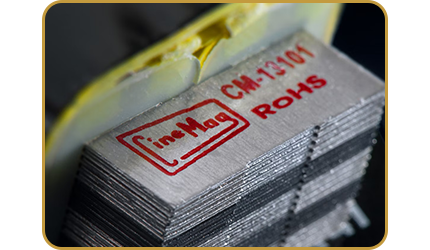

Custom Cinemag Transformers
A true piece of artUnited Studio Tech tested many recreations of the original German transformer; but quickly settled on an exceptional offering from Cinemag Transformers in California. Their answer to the classic part is truly a piece of art; a large, hefty transformer made from a ‘striped core’ of interleaved sets of high nickel and steel laminations, and wound to the specs of the original. It‘s humbucking design provides clean and quiet operation.
Although smaller or less expensive transformer could have been used; compromise was not an option and you'll be glad this was the case. This Cinemag transformer was truly everything a microphone fanatic could wish for.
Not Just Another Mic
No compromiseFinding the best microphone for your needs couldn’t be any more difficult these days. With so much choice on the market, and so many claiming to have the vintage sound and failing to deliver, it can be overwhelming.
This inspired United Studio Tech to deliver the real product, affordably. The UT FET47 represents their true passion for microphones, and was built with a holistic-design approach. With over 50 years of combined industry experience, United have spent years on research and development on this microphone, and it shows.

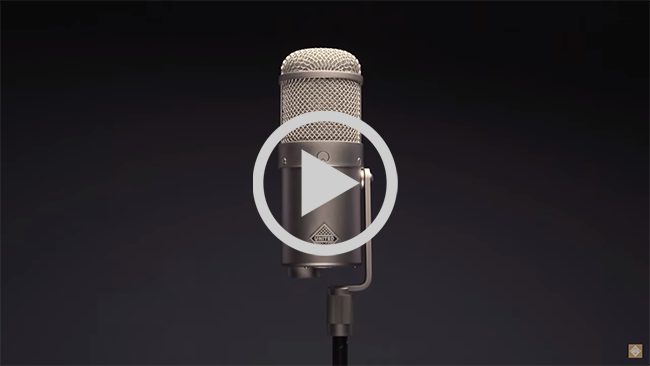

Introducing the United UT FET47
The Tech Spec
| Features | Specification | Type | Condenser Microphone |
|---|---|
| Capsule | HZ Series 34mm all-brass, dual-backplate K47 |
| Diaphragm | Dual-diaphragm, 6 micron, 24k gold sputtered Mylar (PET film) |
| Power Supply | +48v Phantom Power (via XLR) |
| Ground | Pin 1 XLR (required) |
| Frequency Response | 20 Hz - 20 kHz |
| Polar Pattern | Cardioid |
| SPL | 136 dB (145 dB w/ Pad) @ <.5% THD |
| Output Impedance | 150 Ω (in circuit) |
| Amplifier Type | Field Effect Transistor |
| Self Noise | <10 dB (no pad, no HPF) |
| Output | Cinemag USA transformer balanced, pin 2 hot |
| Body | Nickel electroplated, solid milled brass |
| High pass filter | 75 Hz (-12dB down point) |
| Pad | -10dB |
| Connector | 24k gold plated XLR |
| Mount | Self-contained stand swivel mount adapter |
| Dimensions | Height: 210mm / 8.2 in. Width: 69mm / 2.7 in. Diameter: 63mm / 2.4 in. |
