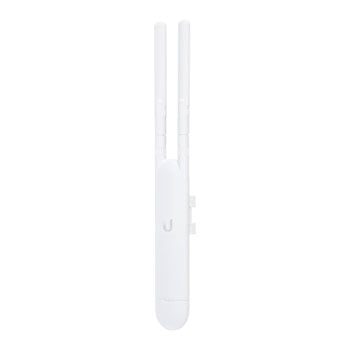

Ubiquiti UniFi Outdoor Mesh Dual-Band Access Point PoE
Ubiquiti UniFi Outdoor Mesh Dual-Band Access Point PoE
Scan code: LN82144 Manufacturer code: UAP-AC-M
£85.99Item currently awaiting an ETA
Pre order
  • Thumbnail 1 : Ubiquiti UniFi Outdoor Mesh Dual-Band Access Point PoE
  • Thumbnail 2 : Ubiquiti UniFi Outdoor Mesh Dual-Band Access Point PoE
  • Thumbnail 3 : Ubiquiti UniFi Outdoor Mesh Dual-Band Access Point PoE
  • Thumbnail 4 : Ubiquiti UniFi Outdoor Mesh Dual-Band Access Point PoE

Ubiquiti UniFi Outdoor Mesh Dual-Band Access Point PoE

Ubiquiti UniFi AC-M Mesh Access Point, Dual-Band, AC1167 (300+867Mbps), 2x Omni-Antennas, GbE, PoE, 802.11ac, In/Outdoor

Scan code: LN82144 Manufacturer code: UAP-AC-M
£85.99
£5.48 Next day delivery
Item currently awaiting an ETA
Pre order
Pay in 3 interest-free payments of £28.67

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview

Antenna Versatility

Adjustable dual-band omni-directional antennas and Fast-Mount included for expanded range coverage.


Optimal Performance

Dual-Band performance with aggregate speeds of up to 1167 Mbps.


Weather-Resistant Enclosure

The UAP-AC-M can be used indoors or outdoors.


Compact Form Factor

The UniFi AC Mesh base is just slightly larger than a standard pen, making it easy to deploy anywhere. Dimensions: 354 x 46 x 34 mm (H x W x D).


Multiple Power Options

The UAP-AC-M is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with the included Gigabit PoE adapter1 or an 802.3af Alternative A compatible switch, such as the UniFi PoE Switch or EdgePoint™ EP-R6.


Versatile Mounting

The UAP-AC-M can be mounted on a wall, pole, or fast-mount of an optional Ubiquiti® high-gain antenna (All accessories are included).


Antenna Options

Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorised antenna for expanded range coverage and customised pattern shaping.

Features
• Dual-band 802.11ac.
• 2.4GHz @300Mbps, 5GHz @867Mbps.
• 2x2 MIMO.
• Gigabit Ethernet with PoE (Power over Ethernet).
• 2x external dual-band omni-antennas.
• Weather-resistant.
• Indoor and outdoor use.
Specifications
Networking, Connectivity & Ports
Model UAP-AC-M
Form-Factor
Device Type Wireless Access Point
Compatible Internet Connections
Network Connectivity
  • 10/100/1000
  • Wireless LAN

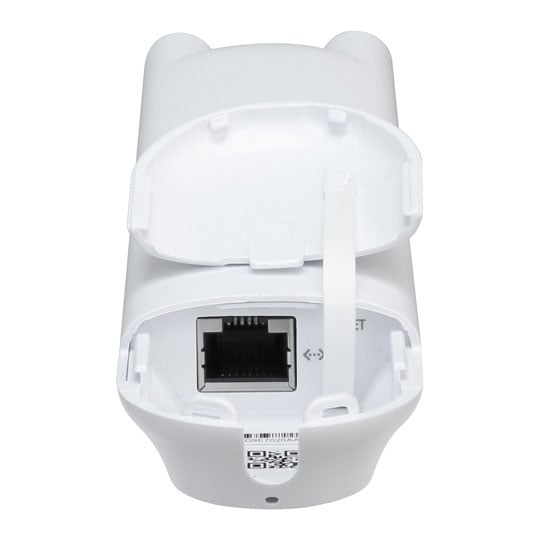

Network Ports 1 x RJ45 10/100/1000 (Gigabit) BaseT for WAN
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance Unknown
Wireless
Wireless Speed 1167 (300+867) Mbps
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Wireless Band Dual Band
Frequency
  • 2.4 GHz
  • 5 GHz
Operation Channel
Wireless Transmitter Power 4 dBi
Antenna 2 External
Core Features
Features Adaptive QoS
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons 1 x Reset Button
OS Support
Max. Power Consumption 8.5 W
Security & VPN
Security Protocols
  • AES
  • TKIP
  • WEP
  • WPA
  • WPA-Enterprise
  • WPA-PSK
  • WPA2
Firewall/NAT No
Management
VPN Support
Physical Specifications
Dimensions 46 x 353 x 34.4 mm (WxHxD)
Weight 152 g
Additional Specifications
Note N/A
Additional Information
Scan Code LN82144
Model Number UAP-AC-M
GTIN 0810354029479
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Direct
Manufacturer Contact Details
Manufacturer:
Ubiquiti
