Ubiquiti UniFi NVR Instant with Integrated 6-Port PoE Switch
Ubiquiti Network Video Recorder Instant, 6-Port PoE Switch, 4K Support, 1x 3.5" SATA, HDMI, Wall Mountable, UniFi
Email me when the availability or price changes
Finance this product
- From £9.77 / month (APR 16.9%) for 24 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Compact UniFi Protect NVR
The Ubiquiti Network Video Recorder Instant is a compact desktop NVR built for UniFi Protect deployments, combining recording, switching, and monitoring in a single enclosure. It supports up to (15) HD cameras, (8) 2K cameras, or (6) 4K cameras, alongside management for up to 50 access hubs, with full support for UniFi Protect and UniFi Access applications.
Included 6-Port PoE Switch
A built-in 6-port GbE PoE switch simplifies camera deployment, paired with a GbE RJ45 uplink port for network connectivity. The system also includes an HDMI Viewport output for direct video display, enabling on-site monitoring without additional hardware. PoE delivery operates within a 44–57V range, with a 40W total PoE budget and up to 15.4W per port.
3.5" HDD Support

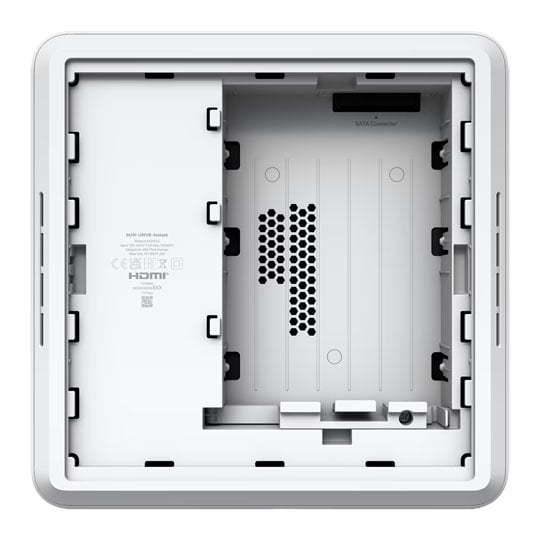

Storage is handled via a single 3.5" HDD drive bay, with support for data protection and Vantage Point functionality. The drive bay operates with a maximum 11W power budget, ensuring efficient operation while maintaining reliable recording capacity.
Sturdy on the Inside, Sturdy on the Outside
At its core is a quad-core ARM Cortex-A55 processor running at 1.7 GHz, supported by 4 GB of memory. This hardware configuration enables consistent performance across video recording, access control, and system management tasks. Connectivity for management includes Ethernet and Bluetooth, along with a 1.14" integrated display for quick status visibility.
Made for Wall Mounting
The NVR supports wall mounting and DIN rail mounting, with mounting hardware included, making it suitable for compact or structured environments where space and accessibility matter.
Features
• Wall-mountable desktop NVR with 6-port GbE PoE switch and 3.5" HDD bay.
• Has a 40W PoE budget and up to 15.4W per port operates within a 44–57V range.
• Quad-core ARM Cortex-A55 processor at 1.7 GHz with 4 GB memory supports consistent video recording and system management.
• Networking includes (1) GbE RJ45 uplink port, (6) GbE PoE RJ45 downlink ports, and (1) HDMI Viewport output for direct display.
• Supports up to (15) HD cameras, (8) 2K cameras, or (6) 4K cameras alongside management of up to 50 access hubs.
• Single 3.5" HDD drive bay with data protection and Vantage Point support operates with a maximum 11W drive power budget.
• Universal AC input (100–240V AC, 1.5A max, 50/60 Hz) with internal 60W AC/DC power supply delivers a total system consumption of 9W.
• Management is handled via Ethernet and Bluetooth with support for UniFi Protect and UniFi Access applications.
