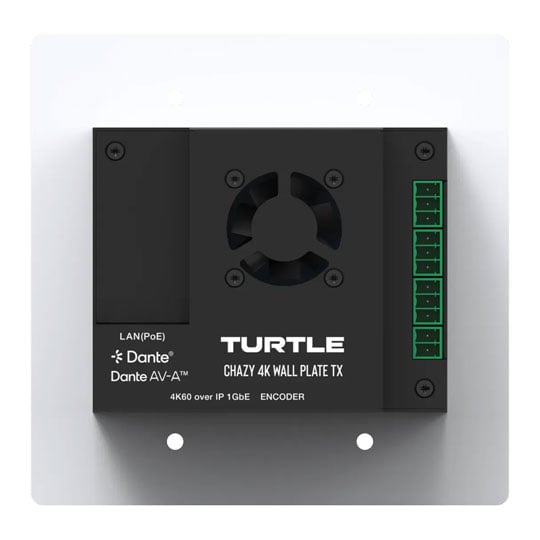

Turtle AV Chaxy 4K Wall Plate TX
Turtle AV Chazy 4K Wall Plate TX, PoE, 2-Gang Decora Style Wallplate
Email me when the availability or price changes
Finance this product
- From £28.57 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £25.30 / month (APR 15.9%)
Turtle AV - 'Chazy 4K Wallplate TX'
Dante AV-A and JPEG 2000 encoderThe Chazy 4K Wallplate TX from Turtle AV, is a Dante AV-A and JPEG 2000 encoder, that allows for seamless transmission of 2160 60Hz 4:4:4 HDR video from USB-C sources like laptops or tablets, and video sources via the HDMI 2.0b input. The plate fits into a 2-gang Decora-style wallplate, it's perfect for modern boardrooms, lecterns, and meeting spaces. The Dante AV-A licence is included and ready to go, which also has 2x2 Dante audio licence. Powered by PoE (IEEE 802.3af) and supports a wide range of audio formats including 7.1 Dolby Atmos, and features advanced capabilities like KVM, video wall configurations up to 9x9, hardware scaling, EDID management, HDCP 2.2, and true multicast support. The Chazy 4K Wallplate Tx is TAA compliant.
The Tech Spec
| Features | Specification | HDMI | 2.0b Compliant |
|---|---|
| HDCP | 2.2 compliant |
| Video Bandwidth | 18Gbps |
| Compression Codec | JPEG 200 or Dante AV-A |
| Network Bandwidth | 1Gbps |
| USB Bandwidth | 480Mbps |
| Colour Depth | Input: 8/10/12-bit;, Output: 8-bit |
| Colour Space | RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 |
| HDMI Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTX-EX DSD, DTS High Res, DTS-HD Master |
| IR Level | Default 12V, Optional 5V |
| IR Frequence | Wideband 20K - 60KHz |
| ESD Protection | IEC 61000-4-2 ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Input | 1x HDMI IN [HDMI Type A, 19-pin female] 2x USB-C IN [USB Type C, 24-pin female] 1x AUDIO IN [3pin-3.5mm Phoenix connector] |
| Output | 1x AUDIO OUT [3pin-3.5mm Phoenix connector] |
| Control | 1x LAN (PoE IEEE 802.3af) RJ45 jack, 1x RS-232 (3-pin 3.81mm Phoenix connector) 1x USB 2.0 HOST (Type B, 4-pin female) |
| Dimensions | 2-Gang, Decora-Style Wallplate |
| Weight | 350g |
